Details New

Grapple Buckets

AD12 Series

Key Features & Specs
  • Heavy-duty grapples
  • Super quick connection

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Heavy-duty grapples
Built to weather the toughest conditions Built to weather the toughest conditions

Frontier™ AD12 Series Bucket Grapples are made of heavy-duty steel to resist bending and provide longer wear capability.



The slim design provides excellent visibility and is strong enough to grab large, heavy items.

Super-quick connection
Fits current 600 and 700 Series Loaders Fits current 600 and 700 Series Loaders
Global carrier Global carrier

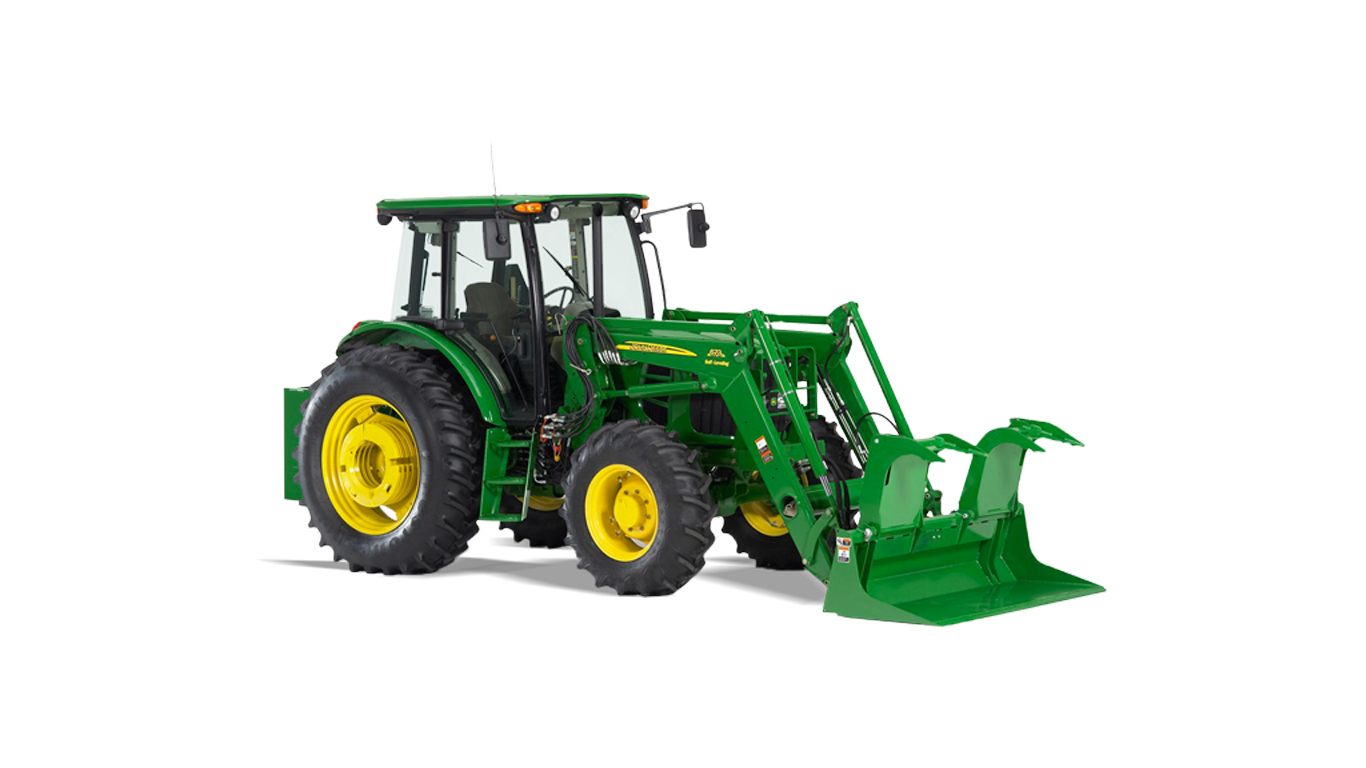

Attaching the debris bucket to a John Deere loader is easy with the quick-change and global attaching systems.



Just line up the loader's connecting points to the attachment frame and lock in place.

Field-installed bolt-on cutting edge kits for AD12D Series Grapple Buckets

These are replacement cutting edge blades for the AD12 Series Grapple Buckets.

Toothbar kit for cutting on AD12 Series Debris Grapple Buckets and AY12 Series Four-in-One Buckets

Toothbars break up soil composition and allow for better digging. The kits come in a variety of lengths for root grapple buckets and four-in-one buckets, and some are bolt on and some are not, as identified in the bundle descriptions below.

EXPAND / CLOSE All
Dimensions
Width243.8 cm
96 in.
Height73.7 cm
29 in.
Depth104.1 cm
41 in.
Cutting width243.8 cm
96 in.
Clam opening100.1 cm
39.4 in.
Attachment carrier
Weight
Operational567 kg
1,250 lb
Shipping589.7 kg
1,300 lb
Hydraulic cylinders
Clamp force
Open
Closed6,672.3 N
1,500 lb-ft
Bucket
Set-up time
Warranty
Additional information
Key Specs
Clam opening
Clamp force - Closed
Current series style
Cutting width
Hydraulic cylinders - Type
