Box Blades

BB20L Series

Key Features & Specs
  • Fixed back plate
  • Fixed tailgate
  • iMatchTM compatible
  • Scarifier points

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Fixed back plate is heavy duty for added rigidity
Strong formed upper edge Strong formed upper edge
#

The heavy-duty concave back plate, with a formed upper edge, provides added rigidity and strength for trouble-free performance.

Cutting edge is strategically positioned for a fine finish
BB Series Box Blade cutting edge is reversible BB Series Box Blade cutting edge is reversible
#

The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.

Fixed tailgate helps in rough situations

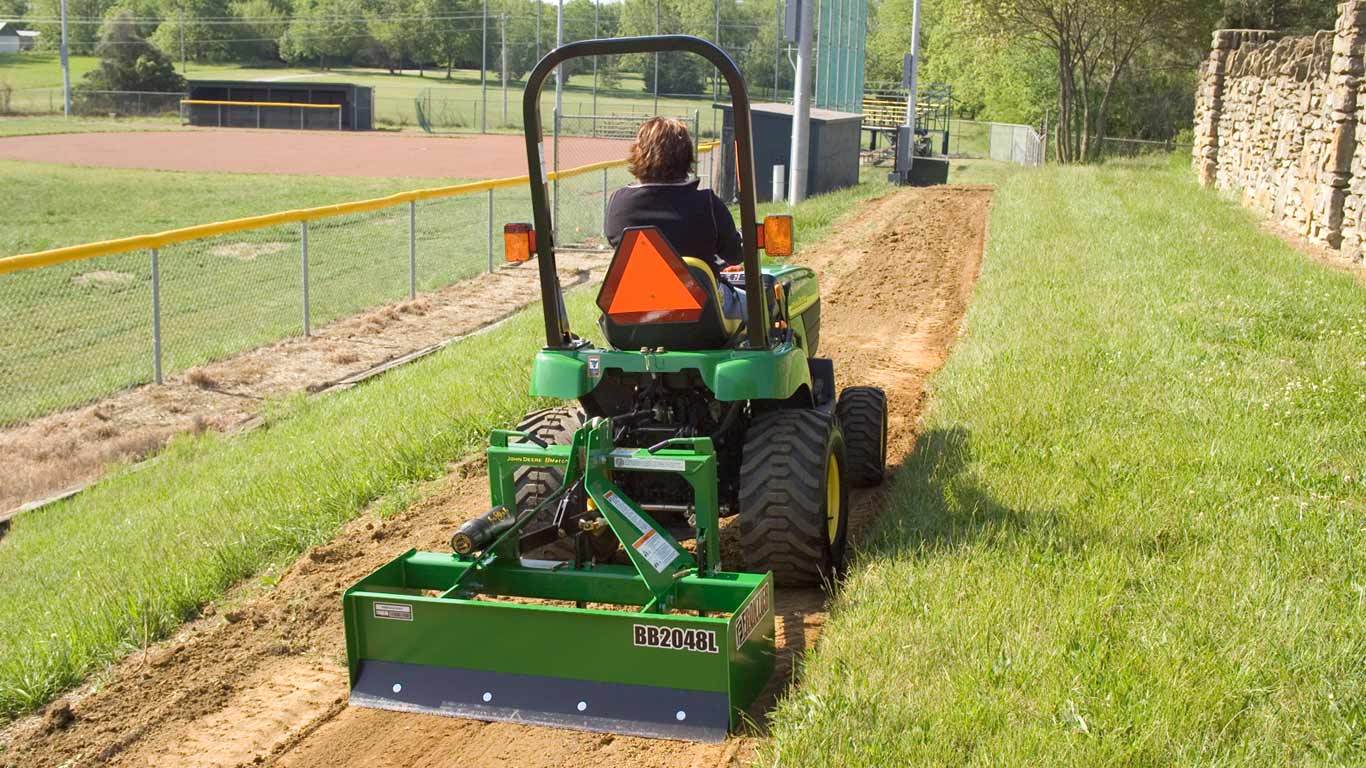

Model BB2048L shown Model BB2048L shown
#

The tailgates on the BB20 and BB20L Series Box Blades are fixed, giving the cutting edge extra power to slice through hard, compacted ground.

iMatch™ quick-hitch compatible for quick, efficient hookup
Innovative hitch system Innovative hitch system
#

The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Scarifier points and shanks are adjustable for a variety of ground conditions
Box blade points and shanks Box blade points and shanks
#

Frontier™ box blade implements feature replaceable hardened, points and shanks that are in position for chipping or deep digging.



The shanks also use a unique locking rod retention system, allowing quick and easy changes to the shank/point penetration level.

EXPAND / CLOSE All
Dimensions
Working width121.9 cm
48 in.
Unit height
Unit depth
Endplate thickness1 cm
0.375 in.
Moldboard thickness0.5 cm
0.1875 in.
Weight
Operating weight124.7 kg
275 lb
Shipping288.5 kg
636 lb
Tractor compatibility
Hitch
CompatibilityCategory 0, limited Category 1
iMatch™ compatible (Cat. 1)
Quick coupler (Cat. 2)
Box
Capacity0.19 m3
6.6 cu ft
DesignReinforced
Cutting edge
ReversibleYes
QuantityTwo
Size1.27x15.24 cm
0.5x6 in.
Scarifier shank and beam
Shank type3 position with holes
PointsReplaceable
QuantityThree
Tubular scarifier beam size10.16x10.16x0.635 cm
4x4x0.25 in.
Beam reinforcement bar size0.09x2.54 cm
0.375x1 in.
Tailgate
Mast
Paint
Shipping
Set-up time
Warranty
Additional information
