Details New

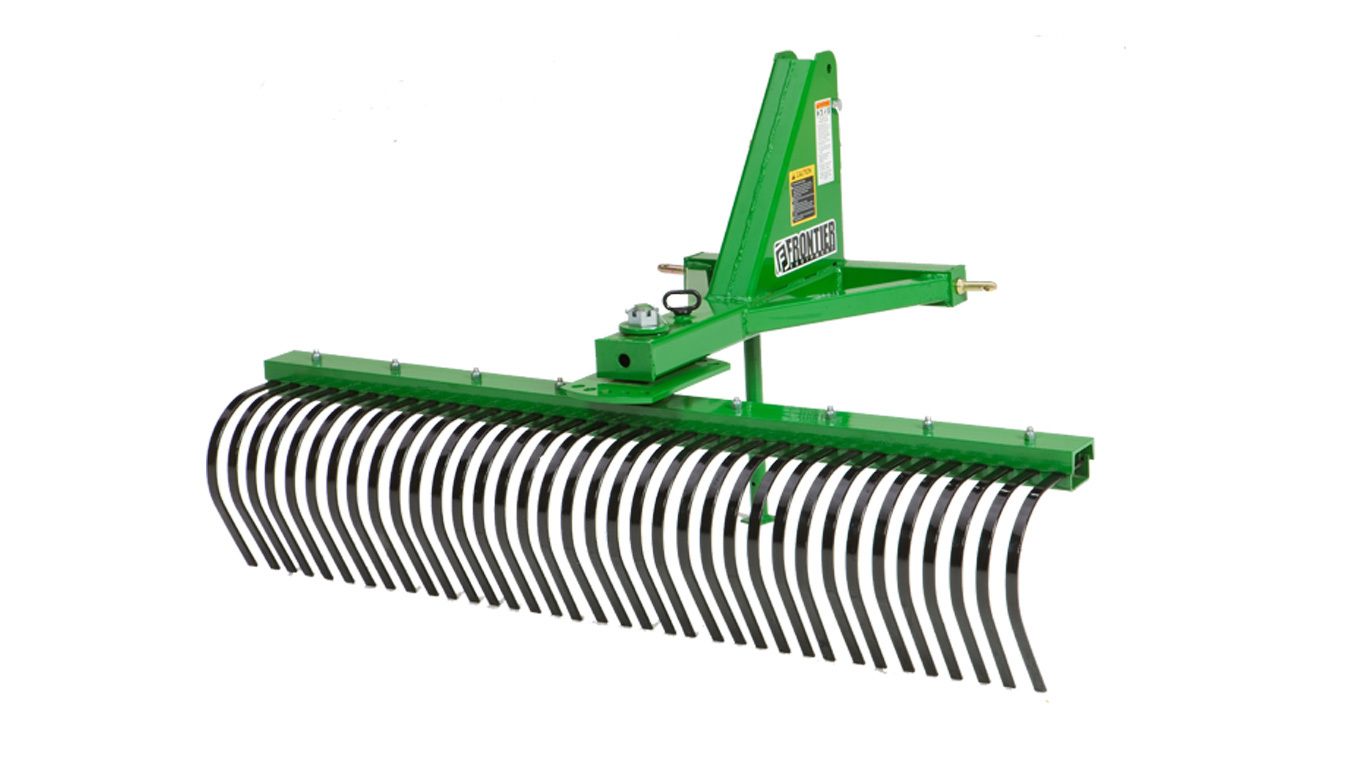

Landscape Rakes

LR50 Series

Key Features & Specs
  • Widths ranging from 60 to 90-in
  • Rotate a full 360 degrees with 5 forward and 5 reverse settings
  • iMatchTM compatible

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Adjustable tine beam
Multiple positions for desired raking profile Multiple positions for desired raking profile

Standard-duty landscaping rake models feature high-strength, formed tine beams constructed with a slotted, bolt-in mounting system. The spring steel tines are spaced at 2.5-cm (1-in.) intervals for exceptional performance in pick-up, grooming, and material distribution. This mounting ensures positive spacing and alignment over each tine.

Tubular steel frame supports angled tine beam
Tubular steel frame and angled tine beam Tubular steel frame and angled tine beam

A strong, tubular-steel frame supports an angled tine beam for superior performance.

Compatible with Category 1 3-point and iMatch™ hitches
Hitch hookup is quick and easy Hitch hookup is quick and easy

These standard-duty landscape rakes are compatible with tractors equipped with Category 1 3-point hitches and are also iMatch hitch. iMatch compatibility ensures a quick and efficient hookup.

EXPAND / CLOSE All
Dimensions
Weight
Operating147 kg
324 lb
ShippingTwo units: 325.7 kg
718 lb
Tractor compatibility
Hitch
CompatibilityCat. 1
iMatch™ compatible (Cat.1)Yes
Tines
Quantity36
Dimensions0.8x2.5 cm
0.3125x1 in.
Spacing2.54 cm
1 in.
Raking angle
Positions5 forward, 5 reverse
Degrees0, 15, 30 degree (angle)
Pivot
Parking stands
Duty
Shipping
Set-up time
Warranty
Additional information
