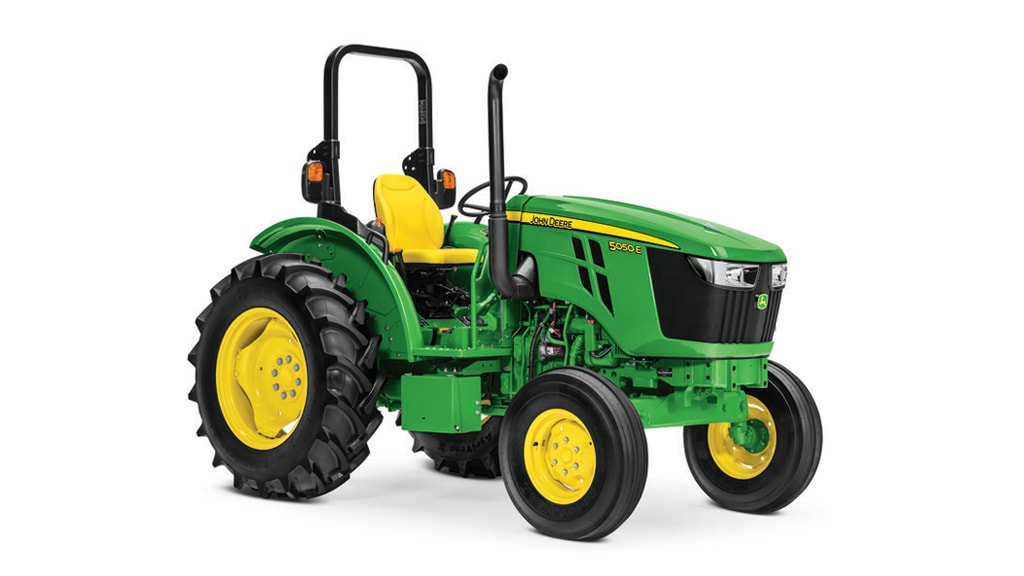

5050E

Adding ease to operation

Operator comfort is important regardless of the application. Improving the 5E 3-Cylinder Tractor models, the hand throttle has been relocated to the right-hand console. This is 30.5 cm (12-in.) closer to the operator and within easy reach versus the previous location on the center-hand console. Operators may also notice the additional legroom provided by the repositioned loader controls, providing a more enjoyable experience.

Overview

The SyncShuttle transmission is designed to match the excellent power and torque characteristics of the John Deere PowerTech™ engines. The 9F/3R SyncShuttle provides nine forward and three reverse speeds with in-line synchronized shuttle shifting.

Benefits

• Transmission durability is enhanced with the pressure-lubricated top shaft, allowing the operator to achieve performance from one working season to the next
• Easy and comfortable shifting
• Operator-friendly transmission controls with hand throttle

Additional detail

Additionally, the in-base transmission is configured with fixed draft links, single-speed power take-off (PTO) and mechanical PTO engagement.

The transmission is characterized as full top shaft synchronized (TSS) when forward shifting on-the-go between speeds and is characterized a synchronized while depressing the clutch.

Easy and comfortable shifting

Nine forward and three reverse (9F/3R) speeds are achieved by using two platform-mounted levers for shift operation. The gear lever at the operator’s right hand selects one of three forward gears and one reverse gear, as well as the integrated park position. The range lever at the operator’s left hand selects collar-shift A, B, and C ranges.

Operators can easily switch directions without having to completely stop the tractor with synchronized, in-line, shuttle-shift capability between forward and reverse gears on the gear-shift lever in all three ranges (A, B, and C ranges).

A neutral start switch requires the gear-shift lever be in the neutral or park positions to start the engine.

A positive park pawl on the transmission provides positive park and eliminates the need for a hand brake. This also eliminates clutch service costs that occur when the park brake is accidentally left engaged.

The same powerful, reliable engine you love, but now no regen required on 5E 3-Cylinder models while still meet the U.S. Environmental Protection Agency (EPA) Final Tier 4 (FT4) exhaust emissions regulations. The John Deere PowerTech™ 3029 EWR engine utilizes a diesel oxidation catalyst (DOC) and cooled exhaust gas recirculation (EGR) aftertreatment system – with no DEF fluid, no DPF, and no regen required, you can focus on completing your jobs while your tractor keeps providing the power you need.

• Provide excellent torque and fuel efficiency
• See over the hood with compact aftertreatment design
• Outstanding performance and durability

The engine in this machine is not equipped with a spark arrestor muffler. It is a violation of California Public Resource Code Section 4442 to use or operate this engine on or near any forest-covered, brush-covered or grass-covered land unless the exhaust system is equipped with a spark arrestor meeting any applicable local or state laws. Other states or federal areas may have similar laws. See ‘Spark Arrestor Screen’ in exhaust attachments section if required for your operating area.



For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page or https://www.deere.ca/en/engines-and-drivetrain/final-tier-4/

Overview

100+ diagnostic codes, real‑time machine vitals, and maintenance intervals, all in one intuitive screen. The Next Generation Primary Display keeps you ahead of problems so you can stay focused on the work, not the worries.

Benefits

• Reduce downtime using more informative descriptions that help pinpoint the issue without guesswork
• Simplify troubleshooting by turning fault codes into easy‑to‑understand information
• Improve first‑time fix rates by helping operators and technicians better understand what the machine is communicating
• Spend less time diagnosing problems and more time getting back to work
• Support better dealer service experiences with clearer diagnostic insight before and during service events
• Increase confidence in machine operation knowing potential issues are clearly identified and explained

Additional details

Free Tools That Keep You Moving

   Put machine logistics, parts, location, and owner’s manuals in your hand. Keeping you productive and in control.

Overview:

Standard LED lighting comes base on all 5E 3‑Cylinder tractors, delivering strong, reliable illumination for early mornings, late evenings, and low‑light working conditions. Designed to support safety and productivity, this standard lighting package helps operators see more clearly without needing to step up to optional packages

Overview

Enhance visibility with standard LED headlights on 5E 3-cylinder tractors.

Benefits

• Standard, no upgrade required LED lighting provides bright, efficient visibility right from the base configuration
• See clearly in low‑light conditions with standard LED headlights and available LED work lights
• Improve safety during transport with integrated lighting and flashing warning lights
• Maximize productivity by confidently extending the workday beyond daylight hours

	5E 3-Cylinder
	Standard OOS	Standard Cab	Premium Cab
Two headlights (high and low beam)	LED	LED	LED
One rear worklight	LED	—	—
Two front and two rear worklights	—	LED	LED
Amber turn signal/flashing warning lights	Two rollover protective structure (ROPS)-mounted	Two forward and two rear roof-mounted	Two forward and two rear roof-mounted
Two rear taillights	X	X	X
Right-hand Console ambient lighting	—	X	X
Three-position dome light (on/off/auto)	—	X	X
Go-home lighting	—	X	X

*From internal data, top property jobs include Rotary Cutting, Loader Work, Baling, Grading, & Tedding/Raking

Overview

Quick‑swap loader attachments and simple implement hookups keep you working, not waiting. Handle 100% of the top property jobs with one tractor and unlock even more capability with 50+ John Deere™ & Frontier™ implements and attachments.
