SCV stack

7, 8 and 9 Series tractors offer a SCV stack aimed at improving performance and aftermarket serviceability. These valves further enable customers to fine-tune hydraulic flow rates and make it easier and more affordable to customize an SCV stack. Now you can switch coupler sizes without having to change an entire SCV slice.

EVT transmission

Stepless transmissions are ideal for overall drivability and those wishing to complete work at precise speeds. Current stepless transmissions are better than ever, but current designs limit true potential. Replacing hydrostatic power with electric power unlocks the ability to monitor the exact load through each major drivetrain component, improves diagnostics, and increases reliability. The EVT transmission delivers efficient power to the ground that John Deere is known for, all with the familiar controls and drive strategy of the IVT. Available as optional equipment on 8R/RT/RX 370 and 8R/8RT/8RX 410 models.

• Improved acceleration between desired ground speeds compared to gearshift transmissions
• Precise infinite speed control from 0.05 to 50 km/h (0.03 to 31 mph)
• Efficient power transfer from the engine to the drawbar results in low fluid consumption while maintaining excellent pulling performance
• Use of electric drive components results in a noticeable reduction in drivetrain noise experienced by the operator compared to the traditional hydraulic motors
• Enhanced reliability with the utilization of proven electric components
• 55 percent reduction in diagnostics requiring tools or a technician for simple in-field troubleshooting
• Compatible with electrical power generation (see Electric Power Generation story under the Transmission tile)

Visibility package (without rear window tint)

Visibility package (with rear window tint*)

Visibility is more than just lighting. It’s mirrors where you need them, shades for the blinding late-fall and early-spring sun, wipers to help keep all the glass clear, and integrated camera capability. The 7 and 8 Series Tractors let you choose the visibility package that best suits your needs – Select, Premium, or Ultimate with 360-degree light-emitting diode (LED) lighting –so you and your operators can run with all-conditions confidence.

*Rear window tint: À la carte option for all cab packages
**Convenience lights illuminate the corners of the cab for easier entry and exit

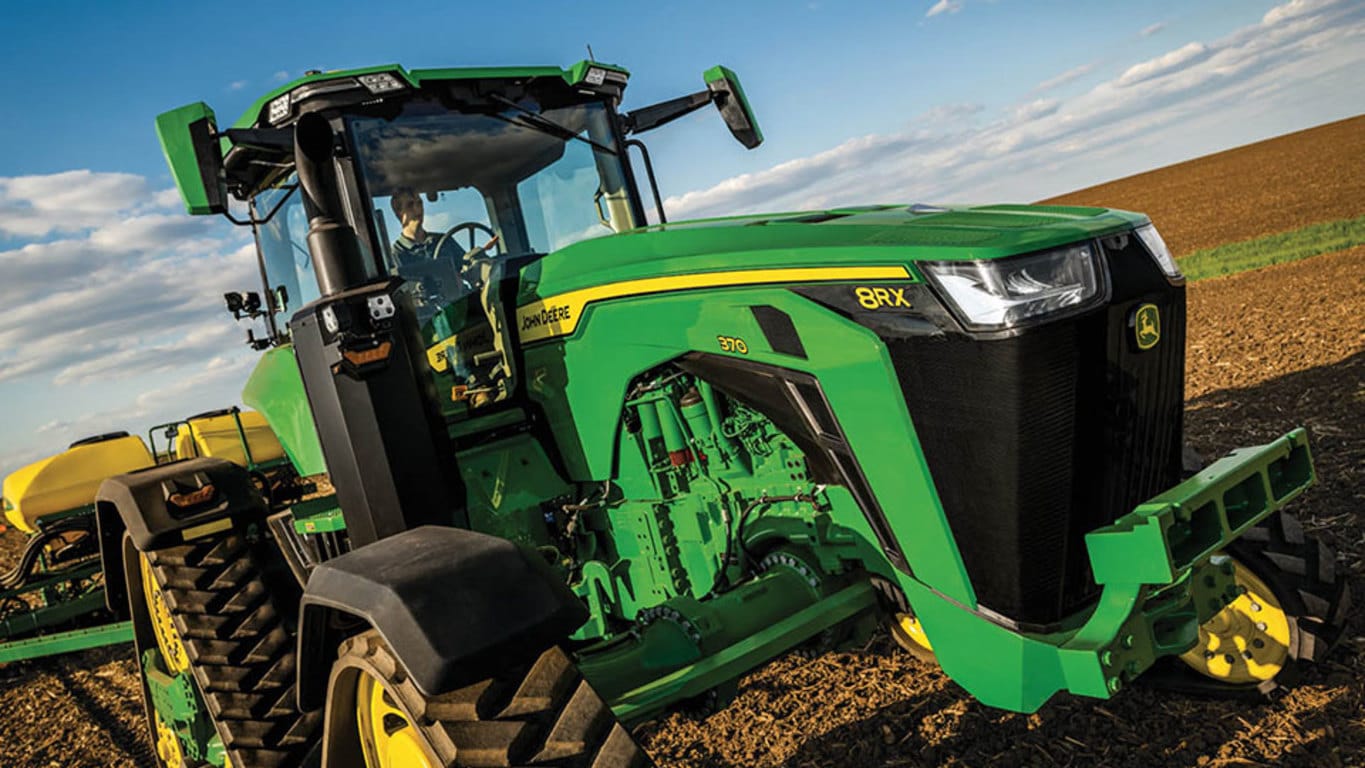

8RX Tractor with cab suspension and air seat

8RX Tractors naturally offer excellent in-field ride due to the large footprint and independent movement of the undercarriage systems. A great ride is also enabled by the lack of power hop due to the track system. 8RX Tractors are equipped with a four-post cab suspension and air seat that is specifically designed for and only found on these models. This system reduces high-frequency vibrations typically associated with road transport and allows 8RX Tractors to strike an unmatched balance in ride quality in the field or on the road.

• Four-post cab suspension with and air seat offers an exceptional ride for operators spending time on the road.
• The cab suspension system specifically designed for 8RX Tractors is offered in base equipment.
• 8RX Tractors naturally ride well in the field due to the independent track systems and a large footprint.

ExactRate tractor tanks

The 8RX is the only tractor on the market that allows operators to carry fertilizer with factory-installed 3785.4-L (1000-gal.) ExactRate tractor tanks. Built-in wet seal solution pump (requires use of one SCV) easily transfers fluid from tractor to planter. Integrated valve compartment for simple tendering, front or rear fill options are available.

• One dealer supports the system from tractor to planter
• Simplified monitoring and control through G5^Plus CommandCenter™ display
• Entry/egress, visibility, and overall machine width un-compromised with fully integrated tanks
• Ground pressure reduced by 14 percent compared to third-party tanks on wheel tractors
• Built-in transfer pump, rinse, and agitation for applications beyond planting

8RX ExactRate tractor tanks and 24R30 planter

8RX and 8R Tractors in the field

All 8 Series Tractors come standard with an 85-cc (5.2-cu in.) hydraulic pump. This pump provides up to 227 L/min (60 gpm) hydraulic flow. A dual pump option featuring 85-cc and 35-cc (5.2-cu in. and 2.1-cu in.) displacement hydraulic pumps is available for all 8R and 8RX Tractors. The dual-pump system provides a hydraulic flow of 318 L/min (84 gpm), ideal for running at lower engine speeds. At the rear, up to six selective control valves (SCVs) are available.

• Single or dual pump options to fit specific producer applications
• Up to 318 L/min (84 gpm) through the dual pump system on 8R and 8RX Tractors
• Options from four to six factory-installed SCVs
• For maximum flow, 1.9-cm (3/4-in.) SCV couplers are available through field installed

A power beyond option is available on all models, and a high-capacity take-out oil reservoir (on 8R Tractors only) is also available for high-demand applications.

8RX Tractor with power beyond

Maximizing uptime using connectivity and technology

Your needs and success are the focus of John Deere. John Deere makes it easy for you to benefit from having a connected tractor in your operation. All tractors come standard with JDLink™ telematics system and users can turn on connectivity in the John Deere Operations Center™ application. With a StarFire™ Integrated Receiver and G5^Plus Display, you can easily step right into advanced technology. If you’re an advanced tech user, you’ll enjoy the benefits of a highly intelligent machine connected to a full suite of solutions on the most open platform in the industry. Advantages of a connected machine include:

• A StarFire Integrated Receiver eliminates all setup, installation, and global positioning system (GPS) calibrations
• AutoTrac™ assisted steering guides the machine with accuracy in a variety of field conditions
• Automation is an option with some applications
• John Deere Connected Support™ is a proactive service approach to improve service efficiency and reduce machine downtime
• JDLink gives you access to information anytime, anywhere, to make data driven decisions with John Deere Operations Center and Documentation

The technology and connectivity in John Deere tractors allow you to optimize productivity, increase uptime, and boost profits with machine information from any device, anywhere.

Large tractor equipment	Precision Technology	JDLink
Base equipment: G5Plus CommandCenter™ display StarFire Integrated Receiver SF1 Optional equipment: G5Plus CommandCenter display plus extended monitor SF-RTK	Base equipment: AutoTrac Section Control Documentation Data Sync Optional equipment*: AutoPath™ AutoTrac Turn Automation AutoTrac Implement Guidance G5Plus Machine Sync In-Field Data Sharing	Base equipment: JDLink telematics system Wireless Data Transfer John Deere Connected Support service Expert Alerts Remote Display Access Service ADVISOR™ Remote service tool

*Available with G5 Advanced Tractor License, for more information on G5 Advanced Licenses please visit the Precision Ag Technology Guidance, Automation and Autonomy Sales Manual.

Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

• Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
• Saves time by remotely viewing in-cab displays, reducing trips to the machine
• Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
• Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.
