Land Planes

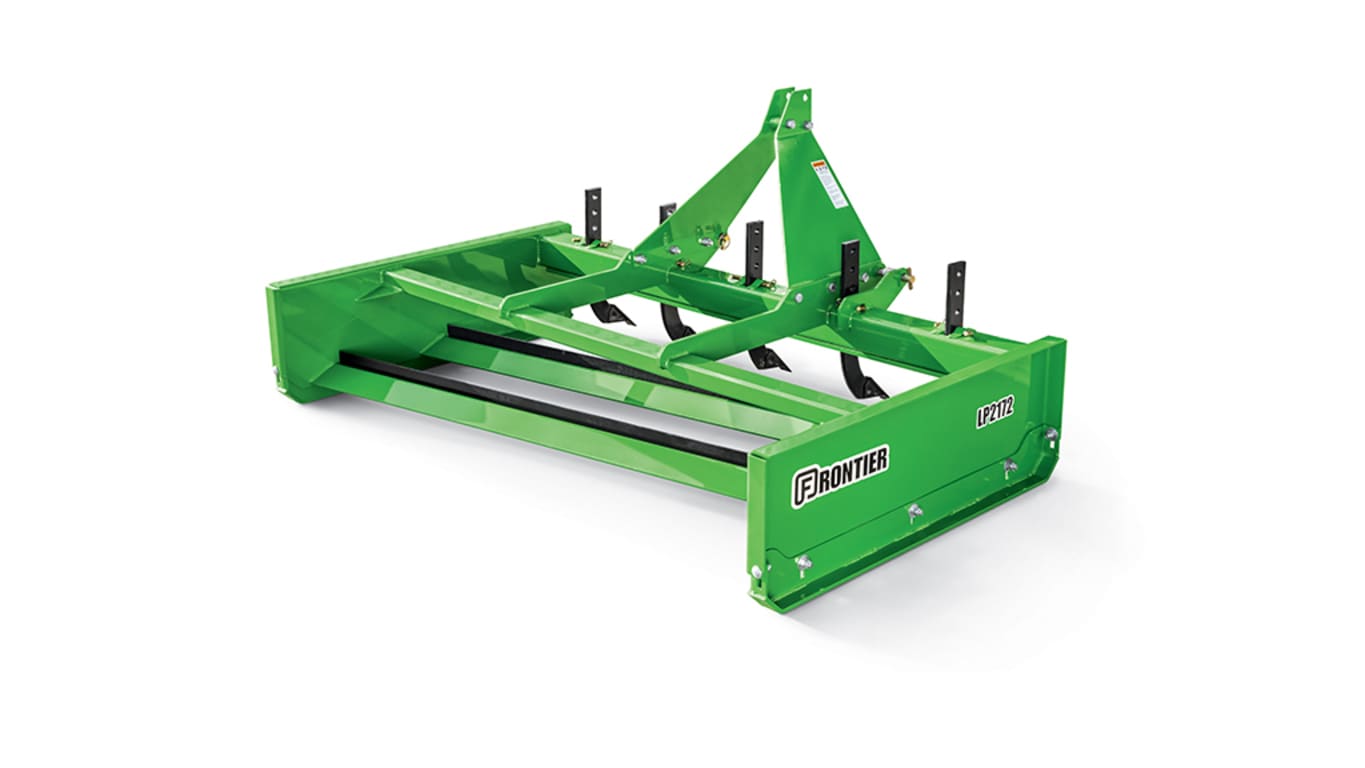

LP21 Series

Key Features & Specs
  • Adjustable skid shoes
  • Scarifier shanks
  • Cutting edges are reversable and replaceable
  • iMatch™/Quick Hitch Compatible

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Adjustable skid shoes extend cutting edge life
Skid shoes are adjustable up and down Skid shoes are adjustable up and down

Skid shoes increase the life of the cutting edges on the land planes while avoiding damage to the working surface.



The skid shoes are adjustable up and down on each side plate to allow for the creation of a crown on a road for water runoff.



By replacing the skid shoes when needed, it will extend the life of the land plane.

Scarifier shanks in base for ripping up hard ground or aggressive grading
Adjustable for different types of groundwork scarifier shanks shown engaged Adjustable for different types of groundwork scarifier shanks shown engaged
Adjustable shanks Adjustable shanks

The scarifier shanks can be easily adjusted for depth control.

EXPAND / CLOSE All
Dimensions
Working widthLP2054L: 137.2 cm
54 in.
LP2160: 152.4 cm
60 in.
LP2172: 182.9 cm
72 in.
LP2184: 213.4 cm
84
LP2196: 243.8 cm
96
Overall WidthLP2054L: 147.3 cm
58 in.
LP2160: 165.1 cm
65 in.
LP2172: 193.0 cm
76 in.
LP2184: 223.5 cm
88 in.
LP2196: 254.0 cm
100 in.
Overall HeightLP2054L: 83.8 cm
33 in.
LP2160: 88.9 cm
35 in.
LP2172: 88.9 cm
LP2184: 88.9 cm
LP2196: 88.9 cm
Overall LengthLP2054L: 121.9 cm
48 in.
LP2160: 121.9 cm
LP2172: 121.9 cm
LP2184: 137.2 cm
54 in.
LP2196: 137.2 cm
Height to Hitch PinsLP2054L: 35.6 cm
14 in.
LP2160: 40.6 cm
16 in.
LP2172: 40.6 cm
LP2184: 40.6 cm
LP2196: 40.6 cm
Weight
OperatingLP2054L: 143.3 kg
316 lb
LP2160: 219.5 kg
484 lb
LP2172: 239.5 kg
528 lb
LP2184: 276.7 kg
610 lb
LP2196: 296.2 kg
653 lb
ShippingLP2054L: 308.4 kg
680 lb
LP2160: 461.8 kg
1018 lb
LP2172: 501.7 kg
1106 lb
LP2184: 553.4 kg
1220 lb
LP2196: 615.1 kg
1356 lb
Implement code
Tractor compatibility
Hitch
StyleAll:Clevis w/ Pin
3-point compatibilityLP2054L: Cat 1 Limited
LP2160: Cat 1
LP2172: Cat 1
LP2184: Cat 1 and 2
LP2196: Cat 1 and 2
iMatch™ compatible (Cat. 1)
Quick-coupler compatible (Cat. 2)All:Yes
Pull-type
Cutting edge
TypeAll:High Carbon Heat Treated Blades
ReversibleAll:Yes
ReplaceableAll:Yes
QuantityAll:Two
Size, in. (cm)All:0.95x15.2 cm
0.375x6 in.
PlacementAll:Blades Positioned at a 10 Degree Angle
Skid shoes
ConfigurationAll: Infinitely adjustable
ThicknessLP2054L: 0.635 cm
0.25 in.
LP2160: 0.95 cm
0.375 in.
LP2172: 0.95 cm
LP2184: 0.95 cm
LP2196: 0.95 cm
Height adjustment rangeAll:6.35 cm
2.5 in.
Shipping
Set-up time
Warranty
Scarifier shanks
AdjustableLP2054L: 3 Position
LP2160: 4 Position
LP2172: 4 Position
LP2184: 4 Position
LP2196: 4 Position
Heat treatedAll:Yes
Available
Points
QuantityLP2054L: 4
LP2160: 4
LP2172: 5
LP2184: 6
LP2196: 7
Tubular scarifier beam size
Tubular scarifier beam thickness
Scarifier Depth RangeLP2054L: 0 cm 0 in. , -3.81 cm -1.5 in., -7.62 cm -3 in.
LP2160: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in.
LP2172: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in.
LP2184: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in.
LP2196: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in.
