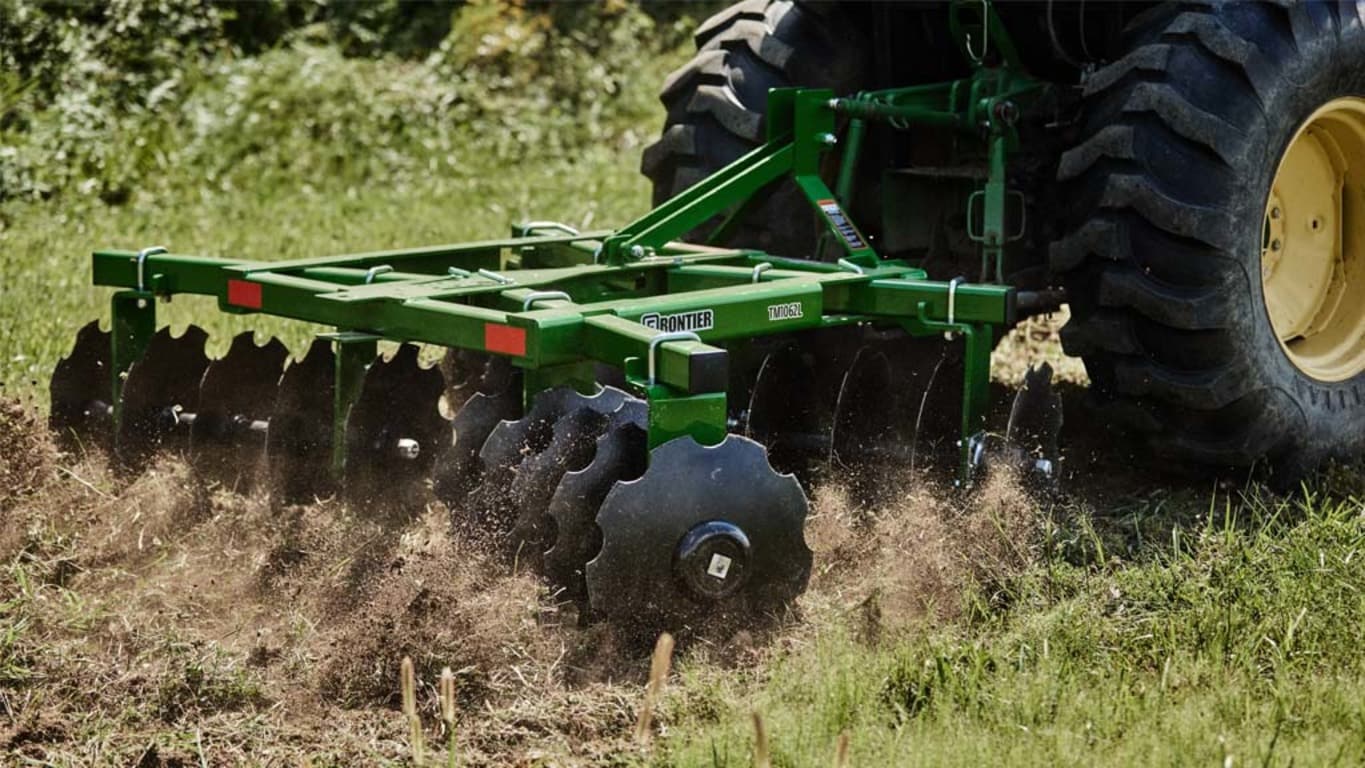

Tandem Disk Harrow

TM10L Series

Key Features & Specs
  • Notched Front & Rear Blades
  • Easy Gang Angle Adjustments
  • Rear Hitch Included
  • iMatch™Quick Attach Compatible

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Gang Angle Adjustments Made Easy
Front Gang Angle Adjustment Front Gang Angle Adjustment
Rear Gang Angle Adjustment Rear Gang Angle Adjustment

Each disk gang on the TM10L can be adjusted individually from outside of the frame.

Individual gang adjustments improve operator ease by eliminating the need to reach into the middle of the frame for disk gang adjustments. Easier adjustments will make it more convenient to precisely set the disk angle necessary for each soil type and desired finish.

In addition to the individual gang adjustments, the TM10L front and rear gang angles are mismatched to enable straighter tracking in the field for a smoother finish.

Rear Hitch
#

The TM10L Rear Hitch feature was designed specifically with increased versatility in mind. The Rear Hitch enables a chain harrow to be attached to the TM10L series. Attaching a chain harrow offers a fewer pass solution that helps improve soil finish, reducing time spent in the field.

Disk Blades for a Variety of Conditions
#

Notched Front and Rear disk blades provide the TM10L with more aggressive soil penetration and versatility to create a finer soil finish. Individual gang angle adjustments enable notched front & rear disk blades to be easily adjusted for a finer soil finish that is typically seen with smooth disk blades.

iMatch™ Compatible
#

The TM10L comes iMatch™ compatible, making it quick and easy to switch implements.

EXPAND / CLOSE All
Dimensions
Working Width48 in.
Overall Width, in. (cm)50 (127) in.
Overall Height, in. (cm)34 (86.4) in.
Overall Length, in. (cm)52 (130.1) in.
Height to Hitch Pins, in. (cm)
Disks
Disk Spacing7.5 in.
Disk Thickness3 mm (0.118 In.)
Disk Diameter, in. (cm)16 (40.6)
Number of Disks12
Front Gang Blade TypeNotched
Rear Gang Blade TypeNotched
Notched (front) / Notched (rear)
Notched (front) / Smooth (rear)
Weight
Operating Weight437 lb
Shipping Weight452 lb
Weight per Disc (Approx.), lb (kg)36 (16.3)
Net
Weight per disk blade
Tractor requirements
Engine HP Range (kW)15-25 (11.2-18.6)
Engine HP Requirements
Recommended PTO hp range
Recommended drawbar hp range
Hitch
CategoryLimited Category I
iMatch / Quick hitchYes
TypeClevis with Pin
Height to Hitch Pins, in. (cm)14 (35.6)
Bolt-on rear hitch
Front hitch type
Style
Gang Axle
Diameter, in.1
TypeSquare
Material
Gangle Angles
Front Gang Angles0,7,14,21 Degrees
Rear Gang Angles0,5,12,19 Degrees
AdjustmentTool-less
Tubing
Hanger Bearing
Bearing typeSelf Aligning Sealed Ball Bearing in Pre-Riveted Flange
Material Thickness
Additional information
Available blade sizes
Blade option five
Blade option four
Blade option one
Blade option six
Blade option three
Blade option two
Construction
Axle Diameter, in.
Blade Spacing
Blade Thickness
Disc Diameter, in. (cm)
Front Gang Angles
Front Gang Blade Type
Gang / Frame Tubing
Number of Blades
Rear Gang Angles
Rear Gang Blade Type
Disk blades
Blade concavity
Quantity
Spacing
Type
Disk gangs
Axle material
Axle size
Bearing standards
Bearing type
Bearing wear plates
Front angle
Furrow fillers
Rear angle
Scrapers
Frame
Duty
Tube size
Type
Key Specs
Approximate working width
Disk blades
Frame
Notched (front) Notched (rear)
Recommended drawbar hp range
Transport - Width
Lighting and safety
Lights
Markings
Safety tow chain
Set-up time
Approximate Assembly Time
Furrow Filler Kit
Labor hours
Rolling Basket
Scraper Kit
Tires
Size
Type
Wheel hub type
Transport
Ground clearance with base blades
Height
Length
Wheel hub bearings
Width
Warranty
Working
Approximate working width
Maximum penetration
