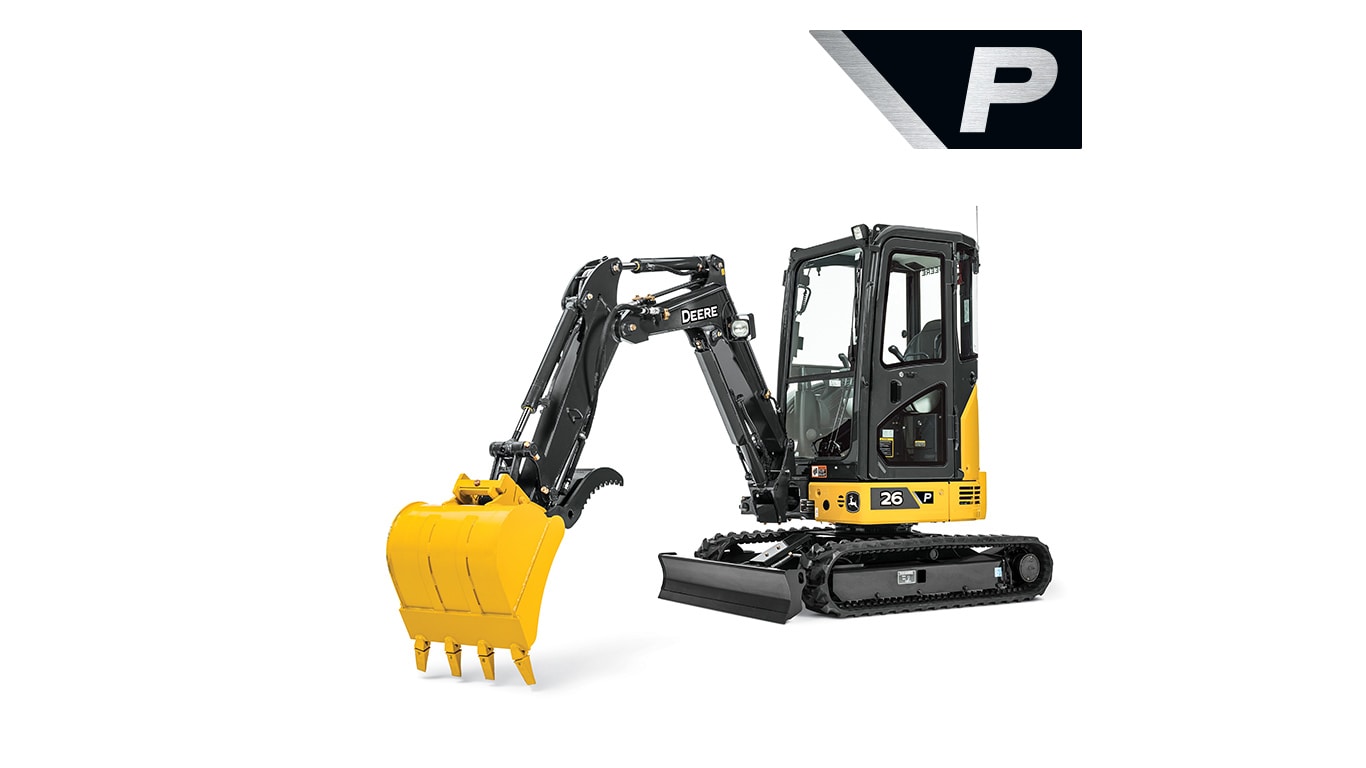

Auxiliary Functions

Overview

Auxiliary 1 allows operators to control primary attachments such as buckets, thumbs, or other attachments to get the most out of your machine. Controlled on the joystick, operators can control attachments with their fingers, freeing up their feet for other functions and reducing fatigue during long work sessions. Auxiliary II is provided for customers looking to expand independent hydraulic controls beyond the basic functions of auxiliary 1. This feature complements Auxiliary I by allowing simultaneous operation of multiple attachments, making complex tasks more manageable.

Benefits

• Ergonomic Control Layout:
  • Aux 1 on Right Joystick & Aux II on Left Joystick (if equipped): This new configuration places critical auxiliary controls within easy reach, allowing operators to manipulate attachments with precision and minimal effort. This design reduces fatigue and enhances productivity during long working hours.
• Standard Auxiliary Flow/Pressure Adjustment:
  • Auxiliary flow can be adjusted in the sealed switch module, allowing for on-the-fly modifications to hydraulic flow based on attachment needs and operator preference.
• Swing boom control on joystick clears up room on the floor for the operator. The speed can also be adjusted in the sealed switch module.

Sealed Switch Module

Adjustable Flow Rate for AUX 1 and AUX 2

Easily customize the hydraulic flow rate for AUX 1 or AUX 2 to match your attachment needs. Simply press the AUX button (7) to select the desired auxiliary line. The selected AUX line will be displayed on your monitor for confirmation.

To switch between AUX 1 and AUX 2, press the AUX button (7) again.

Once your preferred AUX line is selected, adjust the flow rate using the up arrow (8) to increase flow or the down arrow (0) to decrease it, giving you precise control for optimal performance.

Joysticks Controls

Joystick AUX Functions

AUX 1 is standard on all 26 P-tier machines and is located on the right-hand joystick roller, providing consistent control for primary hydraulic attachments.

AUX 2 is an optional feature, mapped to the left-hand joystick roller when equipped.

Boom Swing is always controlled via the left-hand joystick.

When AUX 2 is installed, operators can toggle between AUX 2 and Boom Swing using a dedicated button on the left joystick, allowing seamless switching between attachment control and swing functionality.

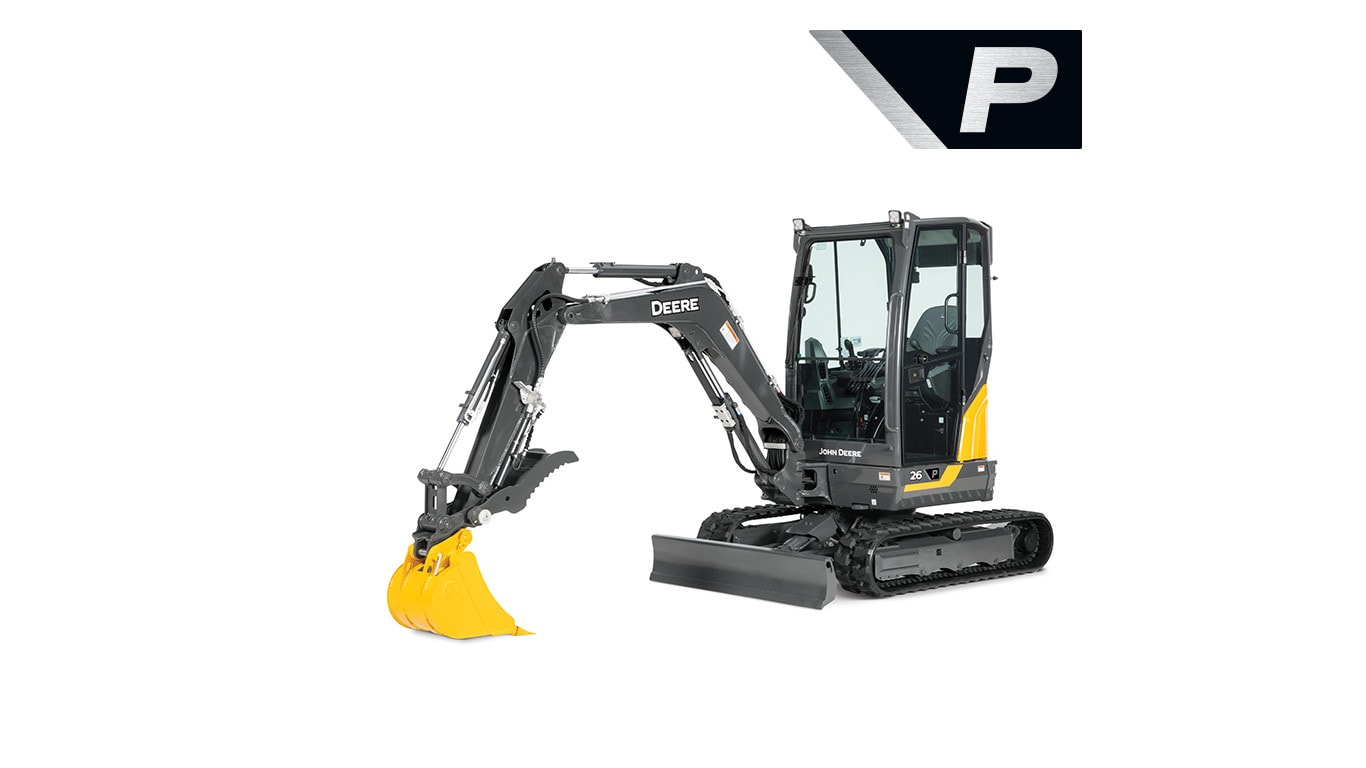

New fixed-pin mechanical coupler

Overview

NEW standard, fixed pin coupler. Hook the dead pin with the coupler, curl, and insert the draw pin. Finally, secure with a safety key. This allows operation in a dig or shovel configuration with a simple low-cost coupler option.

For customers who still want wedge-style compatibility, wedge coupler/adapters will be available through service parts.

Benefits

• Allows quick and simple changing of attachments with no additional tools needed.
• Wedge-style compatibility is available through service parts for use with customers who have existing buckets and attachments from previous generations and series of machines.
• Enables the operator to easily turn bucket around to a shovel position, useful in undermining operation.

Operator View of Cab

Overview

Compact doesn’t have to mean uncomfortable. The new and improved cab option offers a/c and heat as standard features. The ergonomically designed operator station is built to accommodate operators of all sizes. With large entryways and virtually unrestricted sightlines, the spacious operator station delivers all the comfort, convenience, and visibility operators need to bring out their best.

For customers who want to add guards, mirrors, 76.2-mm (3-in.) seat belt, or fire extinguisher bracket, it will be available through field kits and service parts.

Benefits

• Integrated sealed switch module (SSM) common look and feel as other Deere compact equipment and enables machine security code.
• Simple primary display with the ability to track service intervals and job timers.
• Adjustable arm rest without the need of tools.
• Standard features of the enclosed cab include A/C and heat.
• Mechanical suspension seat keeps the operator comfortable for long workdays.
