Details New

for X300 Select Series Lawn Tractors

44-in. Front Blade

Key Features & Specs
  • Clear the way with the 44-inch wide front blade
  • Angle blade 25-degrees, left or right, or straight-on for efficient clearing
  • Enjoy year round usage whether clearing snow, levelling soil or spreading garden mulch
  • Built-in linkage allows blade to float 3-inches to follow uneven terrain for efficient operation

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All

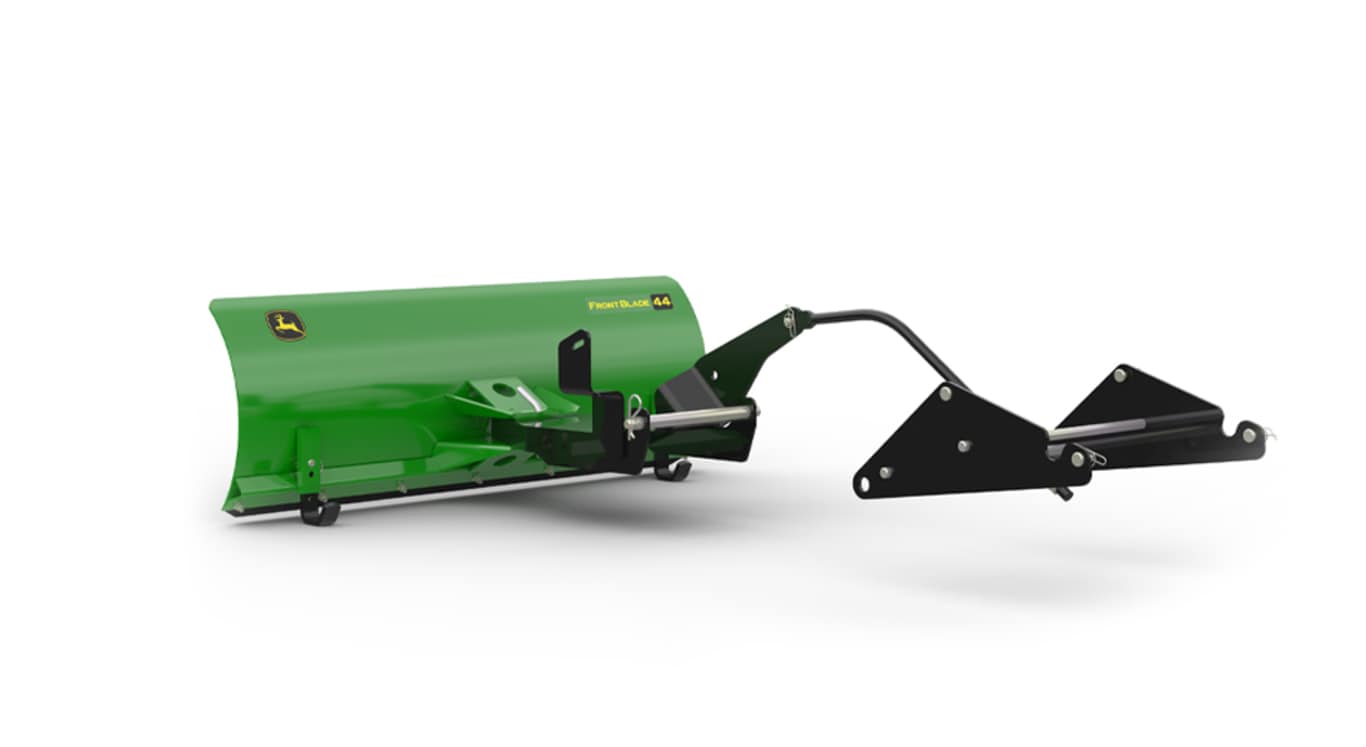

44-in. (112-cm) Front Blade
44-in. (112-cm) Front Blade (shown with optional angling and electric lift) 44-in. (112-cm) Front Blade (shown with optional angling and electric lift)

The front blade is excellent for pushing light snow or loose material. It is 44 in. (112 cm) wide and can be angled 25 degrees right or left or used straight forward.

This 44-in. (112-cm) Front Blade is designed for use on model year 2016 and newer X300 Select Series™ Tractors.

Full working range
44-in. (112-cm) Front Blade used for snow removal (shown with optional angling and electric lift) 44-in. (112-cm) Front Blade used for snow removal (shown with optional angling and electric lift)

The 44-in. (112-cm) Front Blade can be operated from 1 in. (2.5 cm) below ground level to 5 in. (13 cm) above ground level.



A 3-in. (8-cm) floating action is designed into the lift linkage, so the blade is free to follow the contour of the ground.



The lift-linkage design makes raising the blade easy.

Easy-on, easy-off mounting system
44-in. (112-cm) Front Blade removing snow (shown with optional angling and electric lift) 44-in. (112-cm) Front Blade removing snow (shown with optional angling and electric lift)

The blade can be installed or removed in minutes. No tools are needed to remove the blade, and no heavy lifting is required.

Adjustable skid shoes
Adjustable skid shoe Adjustable skid shoe

Adjustable skid shoes on each side of the blade allow the operator to select the correct blading height for various conditions and jobs.



Skid shoes can be adjusted to any of seven different heights, supporting the blade at the selected level as it moves along the ground surface.

Heavy-duty blade construction built to last
Heavy-duty blade construction (shown with optional angling and electric lift) Heavy-duty blade construction (shown with optional angling and electric lift)

Constructed of heavy, 0.12-in. (3-mm) thick steel, the front blade has a reinforcing angle behind the front edge and a replaceable cutting edge.

The cutting edge takes most of the wear to greatly extend the useful life of the blade.

EXPAND / CLOSE All
Key Specs
Cutting widthBlade straight
44 in.
122 cm
Blade angled
40 in.
102 cm
Angling positionsRight and left
25 degree (angle)
Cutting width
Blade straight44 in.
112 cm
Blade angled40 in.
102 cm
Dimensions
Overall height15 in.
38 cm
Overall length
Angling positions
Number of positionsThree
Right and left25 degree (angle)
Range of lift
Garden tractorsAbove ground level: 5 in.
12.7 cm
Below ground level: 1 in.
2.54 cm
Compact utility tractors
Blade skid shoes
Material thickness
Blade0.12 in.
3.05 mm
Replaceable scraper edge0.188 in.
4.76 mm
Blade trip
Blade float
Weight
Additional information
Attaching time
Removal time
Date collected
