Parking stand

Parking stand coupler

For parking the 500E Loader.

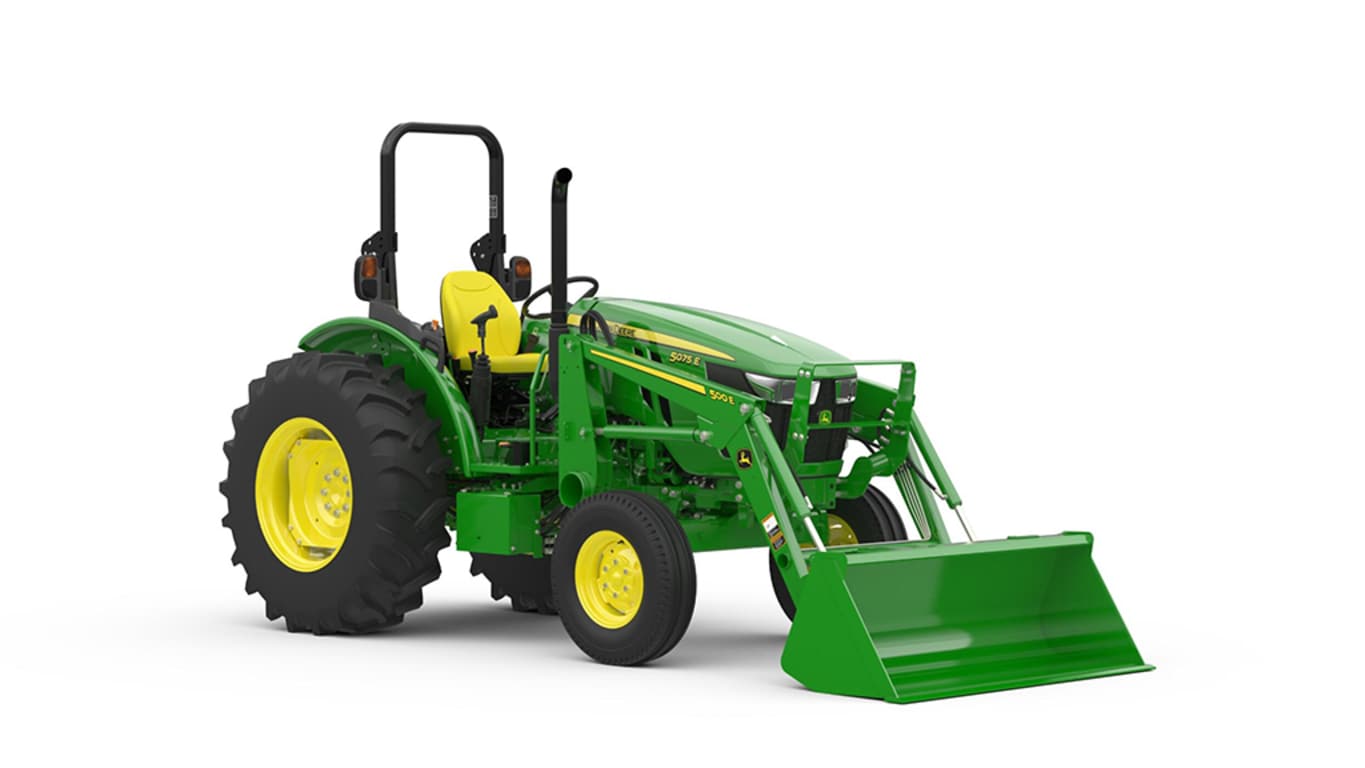

The 500E loader is designed to be a rigid mounted loader to help be affordable as well as close to tractor for improved maneuverability and visibility.

If an upgrade is needed to allow for loader removal, the parking stand and coupler kit is available.

Once this kit is installed, it will have integrated parking stands and couplers to allow customer ease of removal.

The John Deere 500 Style attachment carrier allows one person to quickly change attachments without the use of tools.

Changing from bucket to pallet fork or bale spear takes only seconds to allow for increased productivity.

Simply remove the retaining pin on each side of carrier, back away from first implement, connect to second and reinstall clip pins.

No tools needed nor heavy pins to pull.

Step 1

Retaining pin

Detail of indicated area with pin in storage area

With the bucket level or slightly rolled back, simply remove the retaining pins and place in storage position.

Step 2

Roll the attachment forward to disengage pins

Roll the attachment forward to disengage the lower pins.

Step 3

Lower attachment to ground-disengage top hooks

Lower the attachment to the ground to disengage the top hooks.

Step 4

Back away from attachment

Back away.

To install another attachment simply reverse these steps.
