John Deere Rate Controller 3

Key Features & Specs
  • Manage applications of up to two liquids or both liquid and anhydrous products at the same time.
  • Works with Section Control to minimize overlaps, reduce inputs, by automatically shutting off sections in previously applied areas.
  • Allows equipment to simultaneously document data in the display and John Deere Operations Center™ for more visibility and analysis.
  • Compatible with Gen 4 4600 and 4640, G5 and G5Plus Displays.

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Rate Controller 3 advantage

The John Deere Rate Controller 3 automates rate control to reduce input costs, minimize over and under application, and boost land stewardship.

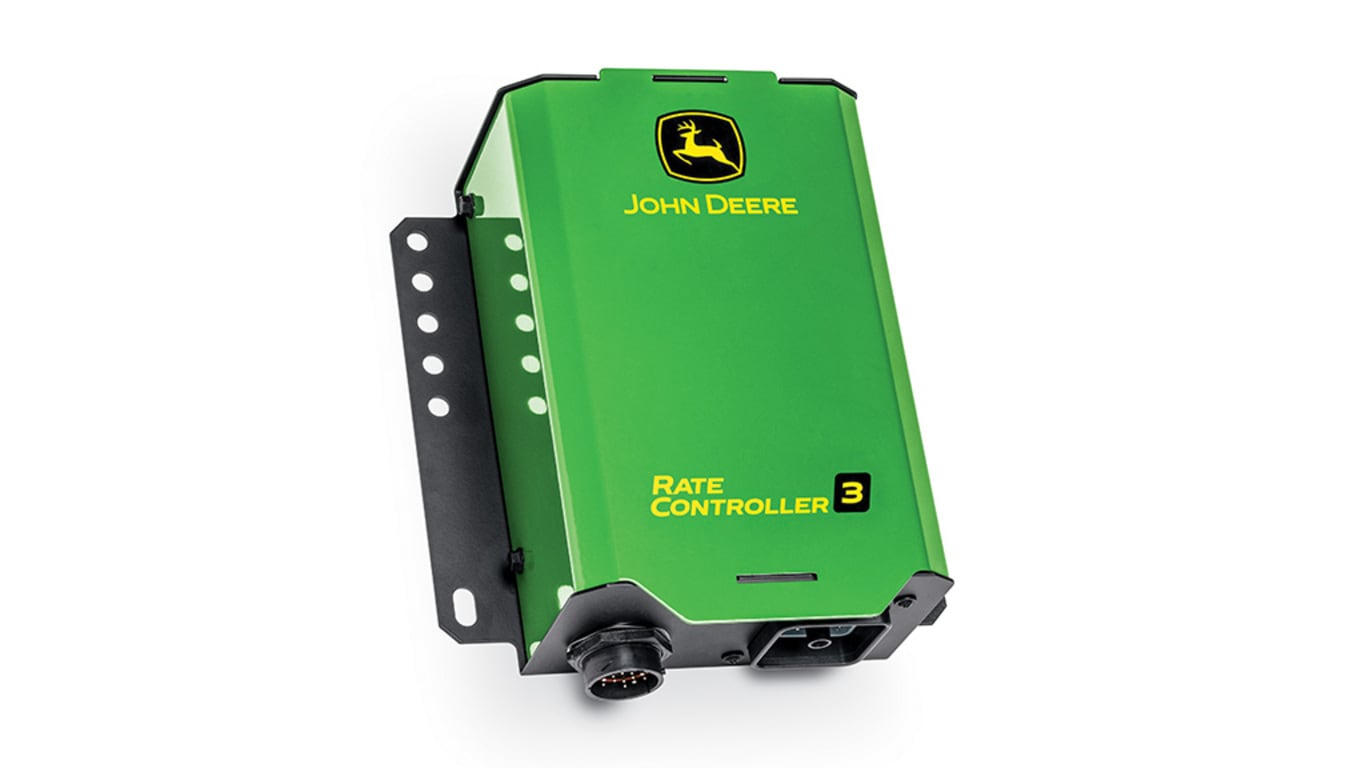

John Deere Rate Controller 3 John Deere Rate Controller 3

The Rate Controller 3 is compatible with John Deere Gen 4 V2, G5, and G5Plus Displays. It stands out amongst the rest through never-before-seen integration with the display, more product capacity, and easy installation and serviceability.



This rate controller remains versatile and reliable for countless operational needs. Compatibility includes liquid and anhydrous applications via planters, anhydrous ammonia (NH3) applicators, self-propelled sprayers, liquid fertilizer applicators, pull-type sprayers, ProGator GPS sprayers, and more.

More product capacity

With the John Deere Rate Controller 3, operators gain additional product capacity when compared to the GreenStar™ Rate Controller. The Rate Controller 3 can control up to 2 products – liquid and/or anhydrous in any combination:

  • 1 liquid product
  • 2 liquid products
  • Anhydrous and 1 liquid product
  • Anhydrous

The increased product capacity of the Rate Controller 3 enables one controller, to complete the same work that would have required two GreenStar™ Rate Controllers in the past. This allows such tasks to be completed simultaneously during a single field pass through one installation and one setup. This minimizes the amount of time and effort required to prepare for work.



The controller can run up to 16 sections. Things that impact section count include:

  • adding an additional product. The 16 sections must them be divided between products.
  • adding an accessory valve. Section capability would be reduced by one section for each accessory valve utilizing a section drive. Examples include left fence row, right fence row, agitation, or recirculation.

NOTE: Two types of direct injection are supported – Raven Sidekick Pro ISO and direct control assigned as the second liquid operation. Using the Raven Sidekick Pro ISO for direct injection will not impact the product or section capacity of the Rate Controller 3. The user can add up to 3 direct injection pumps linked to a single operation, setting up and controlling through ISOBUS VT.



During setup, an unlimited number of profiles can be created, saved, and shared with other displays via USB. Additionally, the Rate Controller 3 will remember the last profile used, making it easy for an operator to get started if swapping machines is required. The ability to create unlimited profiles saves the operator time in the cab and increases the accuracy of setup, making it easy to switch between operations and machines throughout the growing season.

Add profile Add profile
Overall integrated experience

Rate control is a core technology offering that drives customers to purchase other John Deere technology. This increases the importance of a top-notch rate control experience!

New Rate Control App
Rate control app located in the display menu Rate control app located in the display menu

The John Deere Rate Controller 3 brings about a next generation experience for the operator. When a Rate Controller 3 is installed on a machine or implement, it looks and feels like other integrated John Deere technology products. Rate control is no longer setup and managed through the ISOBUS VT app but instead the controller is setup, monitored, and adjusted through an all new rate control app in the display menu. All profile creation, rate control setup, and calibrations/diagnostics are located with this app.

New Rate Controller app compared to the previous ISOBUT VT screen New Rate Controller app compared to the previous ISOBUT VT screen

Within Controller Setup, all profile settings can be established and assigned to the desired Rate Controller 3.



NOTE: The Master Switch can be set up to use virtual on/off, a switch box, or a foot switch. A foot switch is not required.

Rate Controller setup Rate Controller setup

Within Calibrations and Diagnostics, the operator can complete necessary calibrations of the flowmeter, pressure sensor, control valve, etc. along with viewing controller and diagnostic information.

Calibrations and Diagnostics Calibrations and Diagnostics

A summary page then offers an overall view of the settings to quickly verify accurate setup. This is especially beneficial when utilizing Remote Display Access for one consolidated view of the current setup with the ability to easily make adjustments through the Controller Setup shortcut.

Setup summary Setup summary
New Run Pages

Create customized run pages using new run pages modules. This allows the operator to quickly and easily get to work with confidence while keeping a closer eye on every aspect of the operation. For instance, monitor both planting and application through one run page. This is the first time in John Deere history an operator can easily combine a planter and rate controller into one view. The impact of this is huge, especially if running two liquid applications along with planting.

Run Page Example: Planter and Two Liquid Applications Run Page Example: Planter and Two Liquid Applications
Easy installation and serviceability
New harnesses and adapters

The John Deere Rate Controller 3 brings with it an entirely new offering of harnesses and adapters making installation and serviceability much easier. The new connection allows the user to easily connect and disconnect the parts from one another while offering a great seal which protects the internal wiring from weathering or other damage.

Main rate controller harness Main rate controller harness

Adapters are offered for customers who would like to utilize previous harnessing with the John Deere Rate Controller 3.

Connectors

There are two connectors on the bottom of the Rate Controller 3 – the power harness connector and implement harness connector. Both of these connectors reinforce a strong seal that protects against weathering and other potential damage no matter the work environment - in the field, on the golf course, in the orchard, etc.

Rate Controller 3 Connectors Rate Controller 3 Connectors

1. The power harness connector is the 19-pin connector. This is the connector used to install the main rate controller harness which is the power harness included in base when purchasing the Rate Controller 3.



The steps to install main rate controller harness:

  • Line up the connectors
  • Twist them together
Power Harness Connector attached to the Main Rate Controller Harness Power Harness Connector attached to the Main Rate Controller Harness

2. The implement harness connector is the 48-pin connector. This new design adds flexibility and increases compatibility of harnessing for the controller. The person installing or servicing the controller, can more easily reconfigure pins to fit compatibility needs.



The steps to install implement harnessing:

  • Line up the connectors
  • Tighten a bolt to secure in place
Implement harness connector attached to an adapter Implement harness connector attached to an adapter
Diagnostic Light

A diagnostic light is located on top of the Rate Controller 3 for visibility to the controller status or any diagnostic errors. This is a proactive view available prior to accessing further diagnostics in the display.



The operator can diagnose through color and number of blinks.



Color

Number of Blinks

Status

Off

Solid

No Power, Not Programmed, or Programming

Red

Four

Powered & Programmed, No Healthy CAN Bus Connected

Pink

Three

CAN Bus Connected; Address Claim Failed

Yellow

Two

CAN Bus Connected & Address Claimed, Display Not Detected

Blue

One

Display Detected; Compatible App Not Detected

Green

Solid

Communication Established with App

This key will be accessible in Equipment Mobile as well as in the Operator’s Manual and Technical Manual.

Enable additional precision technology

Rate control is the essence of precision technology. It enables product to be applied at a specified rate, where and when it is needed most. Although, the ability and functionality available through the controller grows when paired with other John Deere technology like a StarFire™ Receiver and MTG/Modem with JDLink™ Connectivity.

Documentation

Pair the John Deere Rate Controller 3 with a compatible display and receiver to enable mapping and reporting for practices that otherwise may not have data captured. That data will then be logged on the display and can be transferred to Operations Center. If using an MTG or modem with JDLink™ Connectivity, experience a seamless flow of data, along with near real-time monitoring and analysis. This expands visibility in-field and remotely to make on the fly decisions. For example, maybe an adjustment needs made to settings in order to optimize performance. This also provides accurate documentation of work completed in each field and the ability to make even more educated decisions in the future.

Target rate layer versus actual as-applied map Target rate layer versus actual as-applied map

Having true documentation of what actual work occurred in each field is extremely beneficial. When that granularity is multiplied across all fields, it gives the operation a full record of work complete overtime and the ability to compare season to season and year to year.



NOTE: New with the Rate Controller 3, if a pressure sensor is installed on a liquid profile, a pressure map layer will also be available.

Section Control

Rate control is a foundational requirement to use Section Control. The John Deere Rate Controller 3 and Section Control work together with the receiver (global positioning system) to understand where product has already been applied, triggering section shut off and turn on, alleviating over or under application.



With the correct setup in the cab, this functionality can also be extremely beneficial when crossing in and out of headlands or crossing an interior boundary. Section Control further:

  • Reduces input costs caused by overlap
  • Reduces weed pressure or nutrient deficiency caused by missed sections
  • Reduces operator fatigue from manual turn on/shut off
  • Increases overall yield
  • Enhances land stewardship

NOTE: A Section Control activation is required to use Section Control.



For many customer segments, the impact of environmental considerations and food production practices are becoming more and more driven by consumers. Purchasing decisions are changing immensely with the desire to know where food and textiles originated and how they were produced. The ability to track and report farming practices is becoming important not just at an operational level but also to the overall market. This makes adopting or upgrading rate control more important than ever before.
