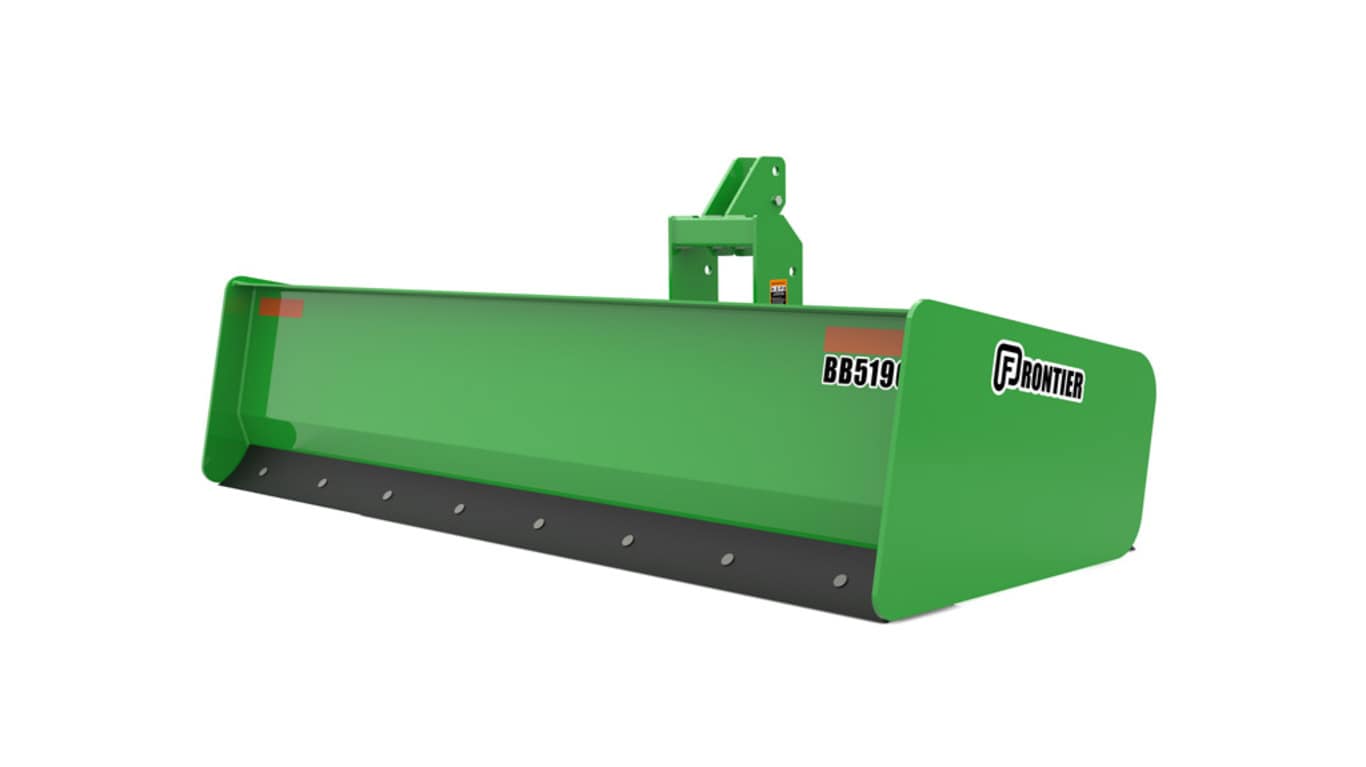

Heavy-Duty Box Blades

BB51 Series

Key Features & Specs
  • Durable construction for heavy-duty jobs
  • Replaceable and adjustable scarifiers
  • Cat. 1 and Cat. 2 3-point hitch compatible
  • Replaceable and reversible cutting edge

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Replaceable and Adjustable Scarifiers
Heavy-duty Scarifiers Heavy-duty Scarifiers
Heavy-duty Scarifiers Heavy-duty Scarifiers

Replaceable heavy-duty scarifiers have multiple adjustment holes for quick and easy changes to shank penetration level. The scarifiers work great for the purposes of chipping or deep digging.

Quick Hitch System Attaches Easily
Easy hitch connections Easy hitch connections
#

iMatch™ quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Replaceable and Reversible Blade for Longevity
#
Precise leveling with steel cutting edge Precise leveling with steel cutting edge

Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.

Solid Moldboard Provides Extra Durability
#
Durable Solid Moldboard Durable Solid Moldboard

A solid moldboard helps in rough conditions. The moldboard give the cutting edge extra power to slice through hard, compacted ground.

EXPAND / CLOSE All
Key Specs
Working widthBB5172: 182.88 cm
72 in.
BB5184: 213.36 cm
84 in.
BB5196: 243.84 cm
96 in.
Cutting edge - ReversibleAll BB51: Yes
Shank typeAll BB51: Four position with holes
HitchCompatibility
All BB51: Category 1 & 2
iMatch™ compatible (Cat. 1)
All BB51: Yes
Max Engine HorsepowerAll BB51: 86.48 kW
120 hp
PTO Horsepower
Dimensions
Working widthBB5172: 182.88 cm
72 in.
BB5184: 213.36 cm
84 in.
BB5196: 243.84 cm
96 in.
Unit heightAll BB51: 91.44 cm
36 in.
Unit depthAll BB51: 81.28 cm
32 in.
Endplate thicknessAll BB51: 1.27 cm
0.5 in.
Moldboard thicknessAll BB51: 0.64 cm
0.25 in.
Weight
Operating weightBB5172: 317.5 kg
720 lb
BB5184: 362.9 kg
800 lb
BB5196: 387.8 kg
855 lb
ShippingBB5172: 337.92 kg
745 lb
BB5184: 374.21 kg
825 lb
BB5196: 399.16 kg
880 lb
Tractor compatibility
Max Engine HorsepowerAll BB51: 86.48 kW
120 hp
PTO Horsepower
Hitch
CompatibilityAll BB51: Category 1 & 2
iMatch™ compatible (Cat. 1)All BB51: Yes
Quick coupler (Cat. 2)
Box
CapacityBB5172: 0.8 m3
28.42 cu ft
BB5184: 0.94 m3
33.13 cu ft
BB5196: 1.07 m3
37.85 cu ft
DesignAll BB51: High Back Box
Cutting edge
ReversibleAll BB51: Yes
QuantityAll BB51: Two
SizeAll BB51: 0.95x15.24 cm
0.375x6 in.
Scarifier shank and beam
Shank typeAll BB51: Four position with holes
PointsAll BB51: Replaceable, Heat treated
QuantityBB5172: Six
BB5184: Eight
BB5196: Eight
Scarifier TubeAll BB51: 12.7x12.7x0.64 cm
5x5x0.25 in.
Tubular scarifier beam size
Beam reinforcement bar size
Tailgate
Mast
Paint
Shipping
Set-up time
Warranty
Additional information
