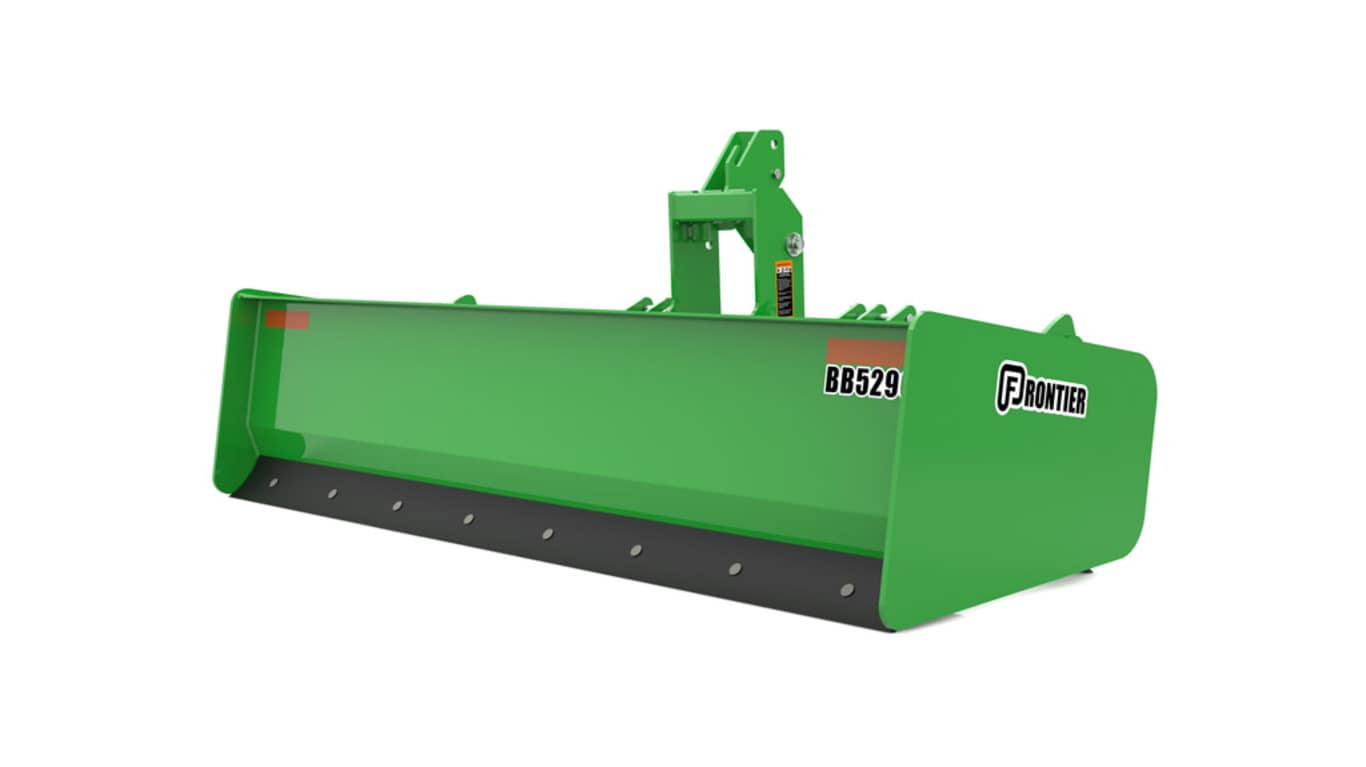

Heavy-Duty Box Blades

BB52 Series

Key Features & Specs
  • Durable construction for heavy-duty jobs
  • Hydraulic retractable scarifiers
  • Cat. 1 and Cat. 2 3-point hitch compatible
  • Replaceable and reversible cutting edge

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Replaceable and Adjustable Hydraulic Scarifiers
Heavy-duty Scarifiers Heavy-duty Scarifiers
#

Replaceable heavy-duty  scarifiers have multiple adjustment holes for quick and easy changes to shank penetration level. The  scarifiers work great for the purposes of chipping or deep digging.

#
Quick Hitch System Attaches Easily
Easy hitch connections Easy hitch connections
#

iMatch™ quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Replaceable and Reversible Blade for Longevity
Precise leveling with steel cutting edge Precise leveling with steel cutting edge
#

Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.

Solid Moldboard Provides Extra Durability
Durable Solid Moldboard Durable Solid Moldboard
#

A solid moldboard helps in rough conditions. The moldboard give the cutting edge extra power to slice through hard, compacted ground.

EXPAND / CLOSE All
Key Specs
Working widthBB5272: 182.88 cm
72 in.
BB5284: 213.36 cm
84 in.
BB5296: 243.84 cm
96 in.
Cutting edge - ReversibleAll BB52: Yes
Shank typeAll BB52: Three position with holes
HitchCompatibility
All BB52: Category 1 & 2
iMatch™ compatible (Cat. 1)
All BB52: Yes
Max Engine HorsepowerAll BB52: 86.48 kW
120 hp
PTO Horsepower
Dimensions
Working widthBB5272: 182.88 cm
72 in.
BB5284: 213.36 cm
84 in.
BB5296: 243.84 cm
96 in.
Unit heightAll BB52: 99.06 cm
39 in.
Unit depthAll BB52: 81.28 cm
32 in.
Endplate thicknessAll BB52: 1.27 cm
0.5 in.
Moldboard thicknessAll BB52: 0.64 cm
0.25 in.
Weight
Operating weightBB5272: 401.4 kg
885 lb
BB5284: 442.3 kg
975 lb
BB5296: 474.0 kg
1045 lb
ShippingBB5272: 412.76 kg
910 lb
BB5284: 453.59 kg
1000 lb
BB5296: 485.34 kg
1070 lb
Tractor compatibility
Max Engine HorsepowerAll BB52: 86.48 kW
120 hp
PTO Horsepower
Hitch
CompatibilityAll BB52 Category 1 & 2
iMatch™ compatible (Cat. 1)All BB52: Yes
Quick coupler (Cat. 2)
Box
CapacityBB5272: 0.8 m3
28.42 cu ft
BB5284: 0.94 m3
33.13 cu ft
BB5296: 1.07 m3
37.85 cu ft
DesignAll BB52: High Back Box
Cutting edge
ReversibleAll BB52: Yes
QuantityAll BB52: Two
SizeAll BB52: 0.95x15.24 cm
0.375x6 in.
Scarifier shank and beam
Shank typeAll BB52: Three position with holes
PointsAll BB52: Replaceable, Heat treated
QuantityBB5272: Six
BB5284: Eight
BB5296: Eight
Scarifier TubeAll BB52: 12.7x12.7x0.64 cm
5x5x0.25 in.
Tubular scarifier beam size
Beam reinforcement bar size
Tailgate
Mast
Paint
Shipping
Set-up time
Warranty
Additional information
