Details New

Box Blades

BB20 Series

Key Features & Specs
  • Fixed back plate for added rigidity
  • Cutting edge is strategically positioned
  • Fixed tailgate helps in rough situations
  • Scarifier has three depth adjustments

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Fixed back plate is heavy duty for added rigidity
Strong formed upper edge Strong formed upper edge
#

The heavy-duty concave back plate, with a formed upper edge, provides added rigidity and strength for trouble-free performance.

Cutting edge is strategically positioned for a fine finish
BB Series Box Blade cutting edge is reversible BB Series Box Blade cutting edge is reversible
#

The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.

Fixed tailgate helps in rough situations

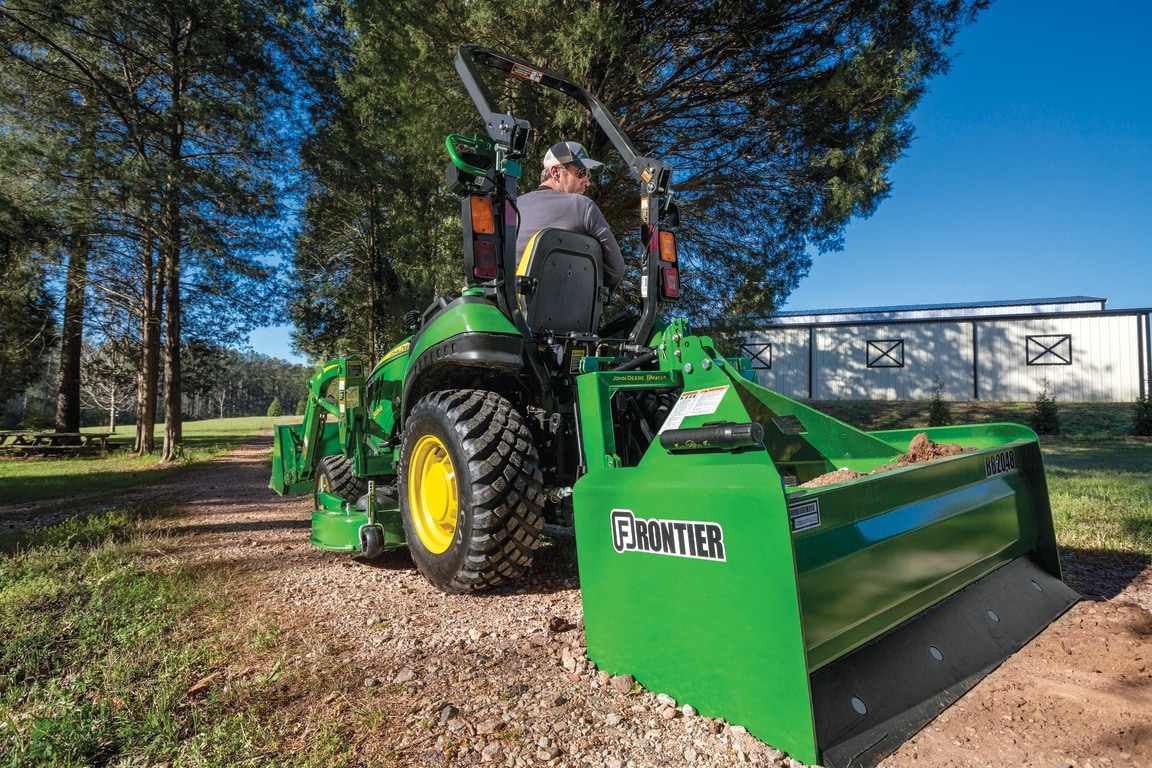

Model BB2048L shown Model BB2048L shown
#

The tailgates on the BB20 and BB20L Series Box Blades are fixed, giving the cutting edge extra power to slice through hard, compacted ground.

iMatch™ quick-hitch compatible for quick, efficient hookup
Innovative hitch system Innovative hitch system
#

The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Scarifier has three depth adjustments for a variety of ground conditions
BB20 and BB21 Series scarifier BB20 and BB21 Series scarifier
#

Adjustments are easy on the BB20 and BB21 Series Box Blades. Simply remove the steel pin and raise or lower the scarifier to increase or decrease ground penetration.



Scarifier shanks can be stored on the scarifier beam when using a box blade for other tasks.

EXPAND / CLOSE All
Dimensions
Working width182.9 cm
72 in.
Unit height85.1 cm
33.5 in.
Unit depth78.7 cm
31 in.
Endplate thickness1 cm
0.375 in.
Moldboard thickness0.5 cm
0.1875 in.
Weight
Operating weight242.2 kg
534 lb
Shipping515.3 kg
1136 lb
Tractor compatibility
Hitch
CompatibilityCat. 1
iMatch™ compatible (Cat. 1)
Quick coupler (Cat. 2)
Box
Capacity0.54 m3
19 cu ft
DesignReinforced with formed edge end plates
Cutting edge
ReversibleYes
QuantityTwo
Size1.27x15.24 cm
0.5x6 in.
Scarifier shank and beam
Shank type3 position with holes
PointsReplaceable
QuantitySix
Tubular scarifier beam size4x4x0.25 in.
10.16x10.16x0.64 cm
Beam reinforcement bar size0.95x2.54 cm
0.375x1 in.
Tailgate
Mast
Paint
Shipping
Set-up time
Warranty
Additional information
