Details New

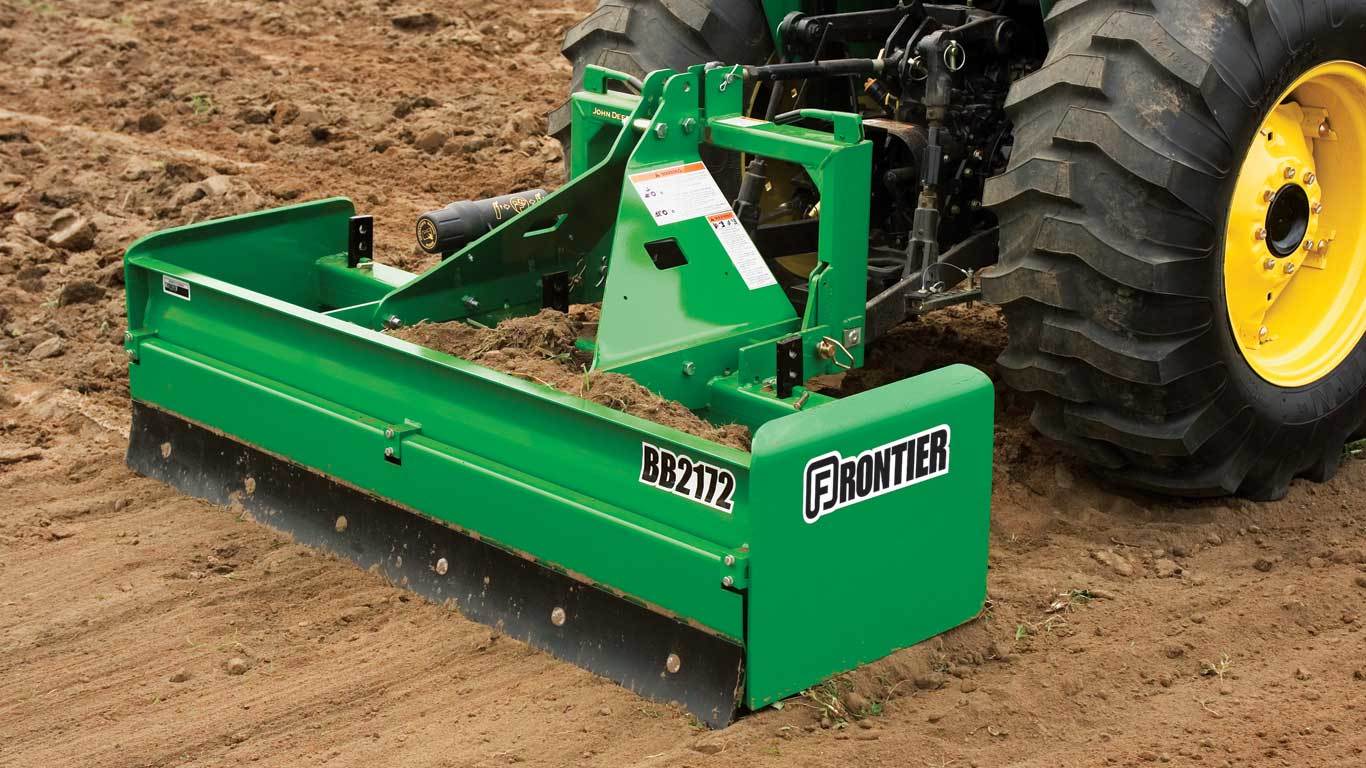

Box Blades

BB21 Series

Key Features & Specs
  • Cutting edge is strategically positioned
  • Floating tailgate helps in rough Conditions
  • Match™ compatible for quick, efficient hookup
  • Scarifier has three depth adjustments

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Cutting edge is strategically positioned for a fine finish
BB Series Box Blade cutting edge is reversible BB Series Box Blade cutting edge is reversible
#

The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.

Floating tailgate helps in rough conditions
Box blade floating tailgate Box blade floating tailgate
#

The tailgate floats, allowing material to flow through the blade during heavy grading conditions.

iMatch™ quick-hitch compatible for quick, efficient hookup
Innovative hitch system Innovative hitch system
#

The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Scarifier has three depth adjustments for a variety of ground conditions
BB20 and BB21 Series scarifier BB20 and BB21 Series scarifier
#

Adjustments are easy on the BB20 and BB21 Series Box Blades. Simply remove the steel pin and raise or lower the scarifier to increase or decrease ground penetration.



Scarifier shanks can be stored on the scarifier beam when using a box blade for other tasks.

EXPAND / CLOSE All
Dimensions
Working width213.4 cm
84 in.
Unit height85.1 cm
33.5 in.
Unit depth78.7 cm
31 in.
Endplate thickness1 cm
0.375 in.
Moldboard thickness0.5 cm
0.1875 in.
Weight
Operating weight302.5 kg
667 lb
Shipping343.4 kg
757 lb
Tractor compatibility
Hitch
CompatibilityCat. 1
iMatch™ compatible (Cat. 1)
Quick coupler (Cat. 2)
Box
Capacity0.63 m3
22.3 cu ft
DesignReinforced with formed edge end plates
Cutting edge
ReversibleYes
QuantityTwo
Size1.27x15.24 cm
0.5x6 in.
Scarifier shank and beam
Shank type3 position with holes
PointsReplaceable
QuantitySeven
Tubular scarifier beam size10.16x10.16x0.64 cm
4x4x0.25 in.
Beam reinforcement bar size0.95x2.54 cm
0.375x1 in.
Tailgate
Mast
Paint
Shipping
Set-up time
Warranty
Additional information
