Box Blades

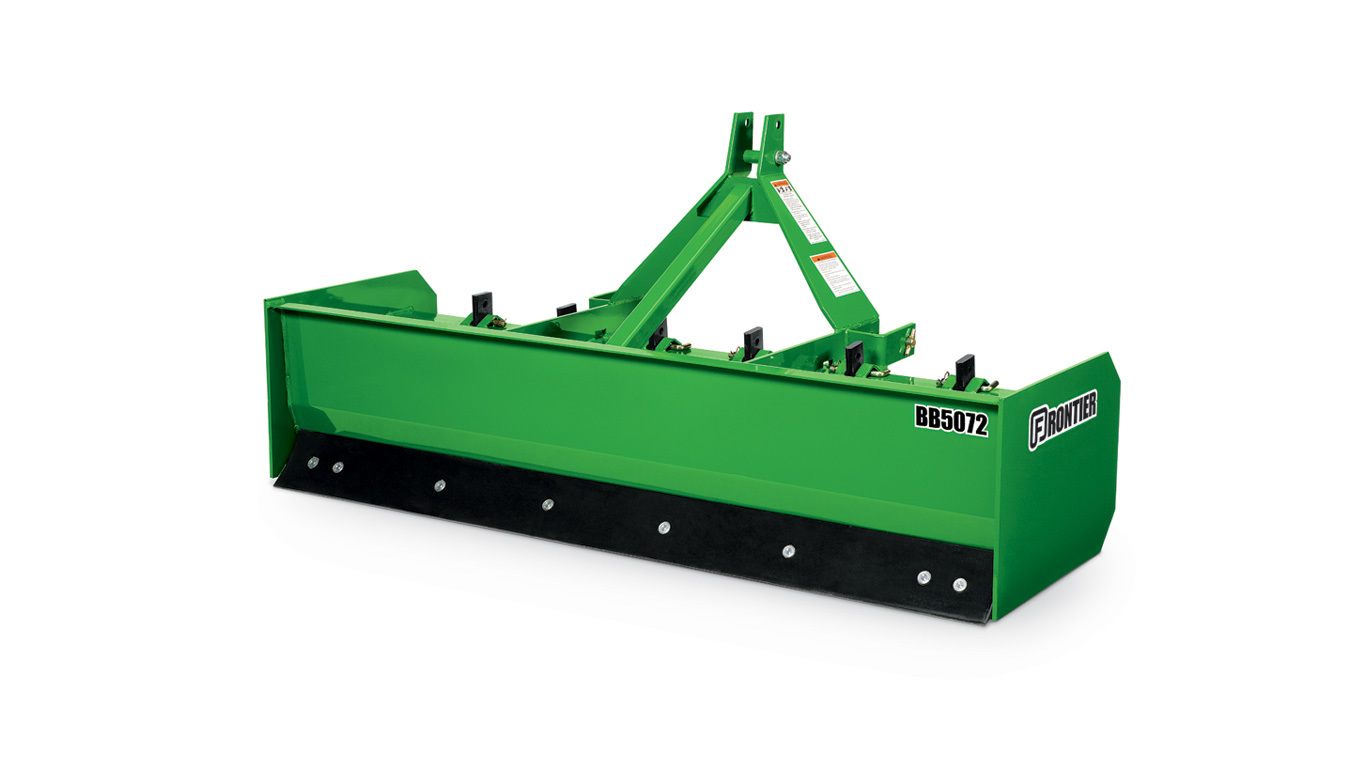

BB50 Series

Key Features & Specs
  • Replaceable and adjustable ripper shanks
  • iMatchTM compatible
  • Replaceable and reversible blade
  • Fixed tailgate

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Fixed back plate is heavy duty for added rigidity
Strong formed upper edge Strong formed upper edge
#

The heavy-duty concave back plate, with a formed upper edge, provides added rigidity and strength for trouble-free performance.

Cutting edge is strategically positioned for a fine finish
BB Series Box Blade cutting edge is reversible BB Series Box Blade cutting edge is reversible
#

The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.

Fixed tailgate helps in rough situations
#

The tailgates on the BB50 Series Box Blades are fixed, giving the cutting edge extra power to slice through hard, compacted ground.

iMatch™ quick-hitch compatible for quick, efficient hookup
Innovative hitch system Innovative hitch system
#

The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Scarifier has three depth adjustments for a variety of ground conditions
BB50 Series scarifier BB50 Series scarifier

Adjustments are easy on the BB50 Series Box Blades. Simply remove the steel pin and raise or lower the scarifier to increase or decrease ground penetration.



Scarifier shanks can be stored on the scarifier beam when using a box blade for other tasks.

EXPAND / CLOSE All
Dimensions
Working width243.8 cm
96 in.
Unit height85.1 cm
33.5 in.
Unit depth78.7 cm
31 in.
Endplate thickness1 cm
0.375 in.
Moldboard thickness0.5 cm
0.1875 in.
Weight
Operating weight273.1 kg
602 lb
Shipping288.9 kg
637 lb
Tractor compatibility
Hitch
CompatibilityCat. 1
iMatch™ compatible (Cat. 1)Yes
Quick coupler (Cat. 2)
Box
Capacity0.6 m3
21.24 cu ft
DesignBox
Cutting edge
ReversibleYes
QuantityTwo
Size0.95x15.24 cm
0.375x6 in.
Scarifier shank and beam
Shank type4 Position with holes
PointsHardened, crimped
QuantitySeven
Tubular scarifier beam size10.16x10.16x0.64 cm
4x4x0.25 in.
Beam reinforcement bar size1.27x1.27 cm
0.5x0.5 in.
Tailgate
Mast
Paint
Shipping
Set-up time
Warranty
Additional information
