Details New

Snow Pushes

AS11E Series

Key Features & Specs
  • Spring-loaded steel trip edge
  • Back drag attachment
  • Field-installed rubber edge kit

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Stay safe with a spring-loaded, steel trip edge
Great safety feature Great safety feature

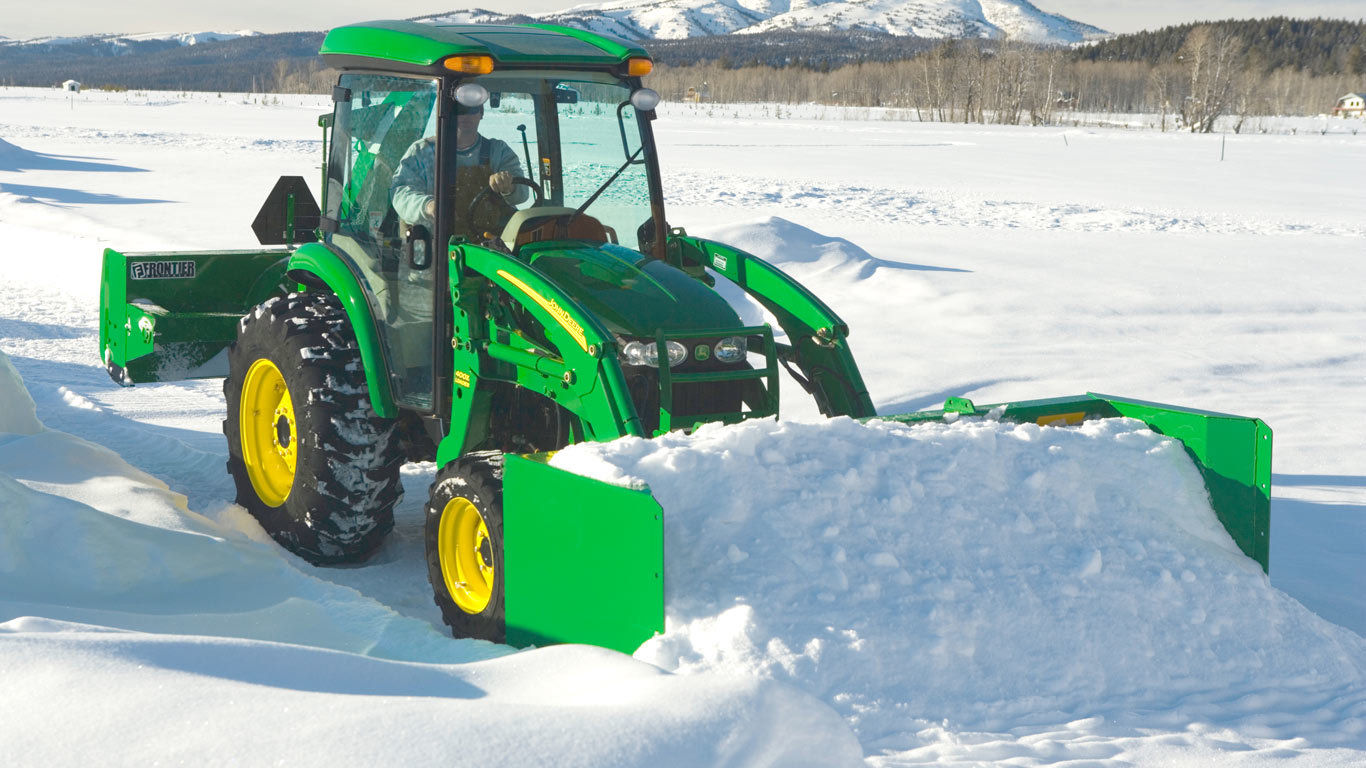

The Frontier™ AS11E Snow Pushes are equipped with a spring-loaded, steel trip edge. This safety feature protects the cutting edge from immovable objects.

Back drag attachment for AS11E Snow Push
AS11E Series Snow Push AS11E Series Snow Push

The field-installed back drag kit allows AS11E Snow Push operators to move snow from those hard-to-reach areas that other blades cannot get to.

Field-installed rubber edge kit for back drag attachment on AS11E Snow Push
For fresh or dry snow pushing
AS11E Series Snow Push rubber edge AS11E Series Snow Push rubber edge

The replacement rubber edge kits come in different lengths, and are for the back drag attachment on AS11E Snow Pushes.



The rubber edges are for fresh and dry snow pushing, removing the piles of snow a steel blade leaves behind.



Because they are reversible, they have a longer wear life.

EXPAND / CLOSE All
Dimensions
Width280.4 cm
110.38 in.
Height101.1 cm
39.8 in.
Depth105.4 cm
41.5 in.
Cutting width279.4 cm
110 in.
Attachment carrier
Weights
Equipment427.7 kg
943 lb
Shipping450.4 kg
993 lb
Cutting edge
Rubber
Steel, spring resetYes
Moldboard
Thickness10 gauge
3.4 mm
0.135 in.
Height96.8 cm
38.1 in.
Capacity
Skid shoes
Set-up time
Warranty
Additional information
