Details New

Subsoiler

PS10 Series

Key Features & Specs
  • Corrosion-resistant, powder-coat paint increases durability
  • Steel shank

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Hitch compatibility
Fits Category 1 3-point hitches Fits Category 1 3-point hitches
#

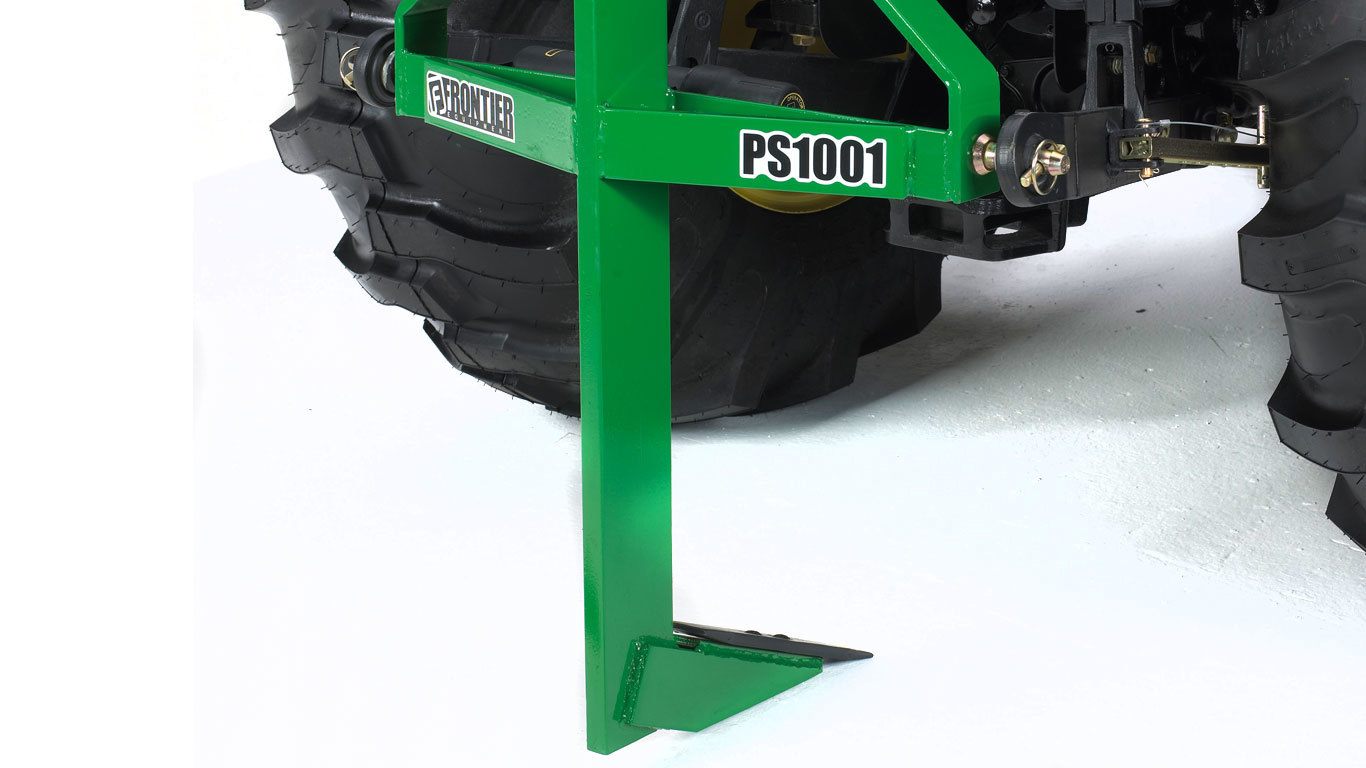

The Frontier™ PS10 Series Subsoiler fits tractors with a Category 1 3-point hitch, allowing the operator to make a quick, easy connection.

Corrosion-resistant, powder-coat paint increases durability
Powder coated for corrosion resistance Powder coated for corrosion resistance
#

Corrosion-resistant, powder-coat paint increases durability and prevents wear and tear, allowing longer wear life.

Reversible and replaceable sloped point
Reversible and replaceable for extended life Reversible and replaceable for extended life
#

The rectangular, sloped point on the PS10 Series Subsoiler is reversible and replaceable, extending its wear life and dependability.

Steel shank rips deeply through hard, compacted soil
Deep ripping action for compacted soil Deep ripping action for compacted soil
19-mm (.75-in.) thick steel shank 19-mm (.75-in.) thick steel shank

The Frontier™ PS10 Series Subsoiler is equipped with a 19-mm x 102-mm (.75-in. x 4-10.) steel shank that is the source of its deep ripping action through hard, compacted soil.

EXPAND / CLOSE All
Key Specs
Working width/depthWorking depth: up to 61 cm
24 in.
Transport length41 cm
16 in.
Transport width83 cm
32.5 in.
Horsepower19-34 kW
25-45 hp
Hitch - CategoryCategory 1
Dimensions
Transport length41 cm
16 in.
Transport width83 cm
32.5 in.
Transport height124 cm
49 in.
Working width/depthWorking depth: up to 61 cm
24 in.
Moldboard/tine
Weight
Implement44 kg
96 lb
Shipping62 kg
136 lb
Tractor requirements
Hitch
CategoryCategory 1
iMatch™ compatibleNo
Moldboards/tines/shanks
Tine
Packaged
Safety
Set-up time
Warranty
Additional information
