Details New

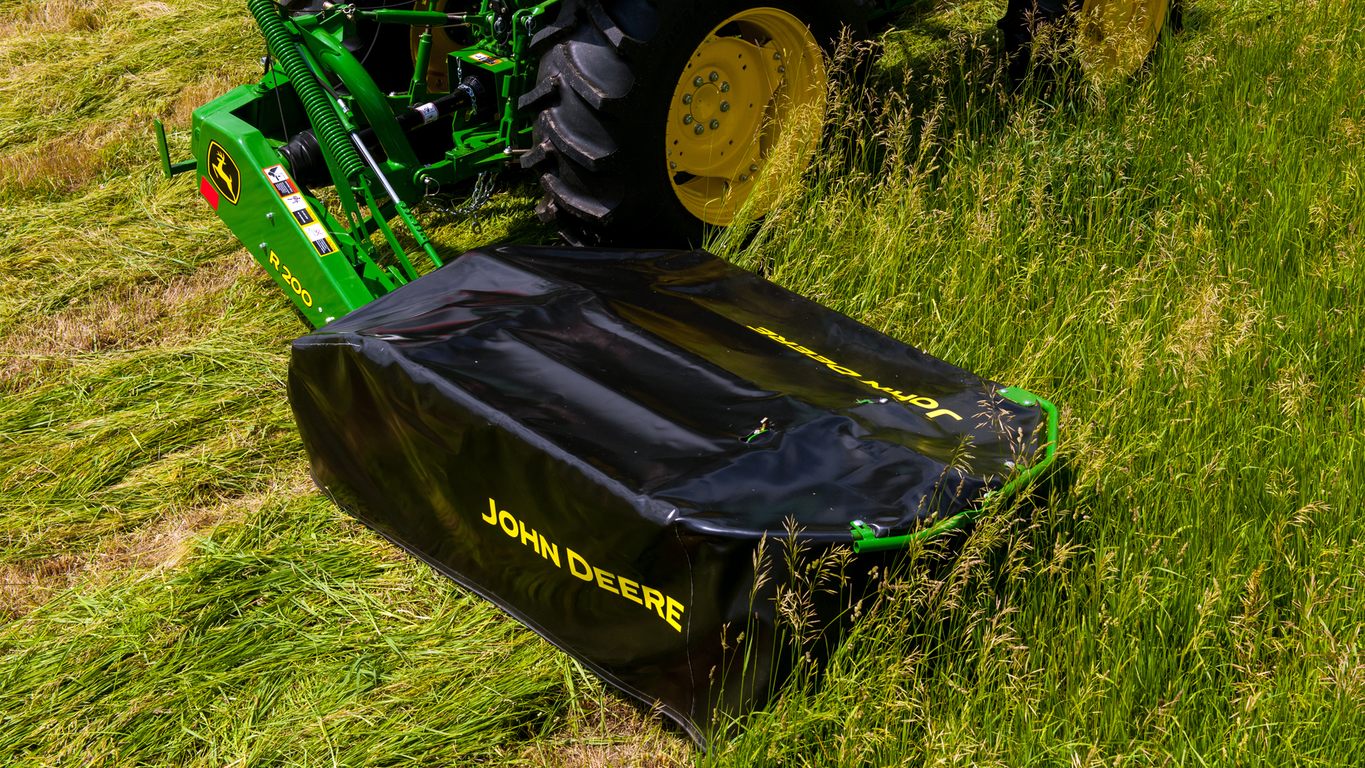

Disc Mower

R200

Key Features & Specs

Easy-to-attach 3-point hitch tractor hookup

High-clearance frame and suspension

Disc quill easy to remove for serviceability


FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Easy-to-attach 3-point hitch tractor hookup
Easy-to-attach 3-point hitch Easy-to-attach 3-point hitch

The R160 and R200 Mowers attach to tractors with a Category 1 and 2, 3-point hitch. The R160 and R200 are not quick-hitch compatible.



The R160 and R200 models rely on the parking stand to hold up 3-point hitch arms to ensure easy hook up to the tractor.

Adjustable lower hitch pins Adjustable lower hitch pins
#

Lower hitch pins can be adjusted left or right to match the mower offset for tractors with wider tire spacing. The R160 and R200 models have an offset range of 172 mm (7 in.).

Uptime

 Cutting arc provides a wide range of cutting angles

Heavy-duty cutterbar for the toughest cutting conditions
Rotary disc cutterbar Rotary disc cutterbar
#

A multi-V-belt drive system transfers power from the gearbox to each rotary disc.

Power is transmitted to the rotary discs through fully enclosed gears running in oil for a quiet, smooth, reliable operation.



All models have a spring-loaded belt tensioner for easier belt adjustment. The belt tension automatically compensates for initial belt stretch, increasing belt life.

High-speed rotary discs High-speed rotary discs
#

Rotating at 2986 rpm, the high-speed discs cut in the toughest conditions.

The low-profile cutterbar allows a close cut while maintaining a level cutterbar. The cutting height is controlled by adjusting the tilt of the cutterbar.

Each disc has two free-swinging knives:

  • Easy to remove and replace
  • Two cutting edges, doubling the use life
Easy-to-remove disc quill
Removable quill Removable quill
#

The cutterbar is protected from severe impact should an object be struck.

  • Disc drive-shaft shears
  • Reduces chance of internal damage to cutterbar
  • Improves cutterbar reliability

Disc quills are easily removed from the top of the cutterbar for improved serviceability.



Each disc has two free-swinging knives:

  • Easy to remove and replace
  • Two cutting edges, doubling the use life
  • Swings away to reduce possible damage if a solid object is struck
Lift and suspension system
Heavy floatation spring Heavy floatation spring

The disc mowers use the hydraulic cylinder to lift the cutterbar from the cutting position to the transport position, where the cutterbar automatically locks into place.



The R160 has a cutting arc of +35 degrees to -22 degrees.



The R200 has a cutting arc of +35 degrees to -16 degrees.



A heavy spring establishes even flotation along the full length of the cutterbar in a variety of different field conditions and topography.

Performance

Cutting arc provides a wide range of cutting angles



EXPAND / CLOSE All
Key Specs
Mower
Number of disksFive
Number of knives10
Width of cut2 m
6.58 ft
Transport width
Weight465 kg
1025 lb
Disk speed2986 rpm
Cutting speed
Cutting arc+35 to -22 degree (angle)
Lift systemHydraulic
Minimum PTO HP26 kW
35 hp
PTO speed540 rpm
Tilt
Breakaway
Stroke
Sickle speed
Knife drive
PTO drive
