Details New

Drawn Planter

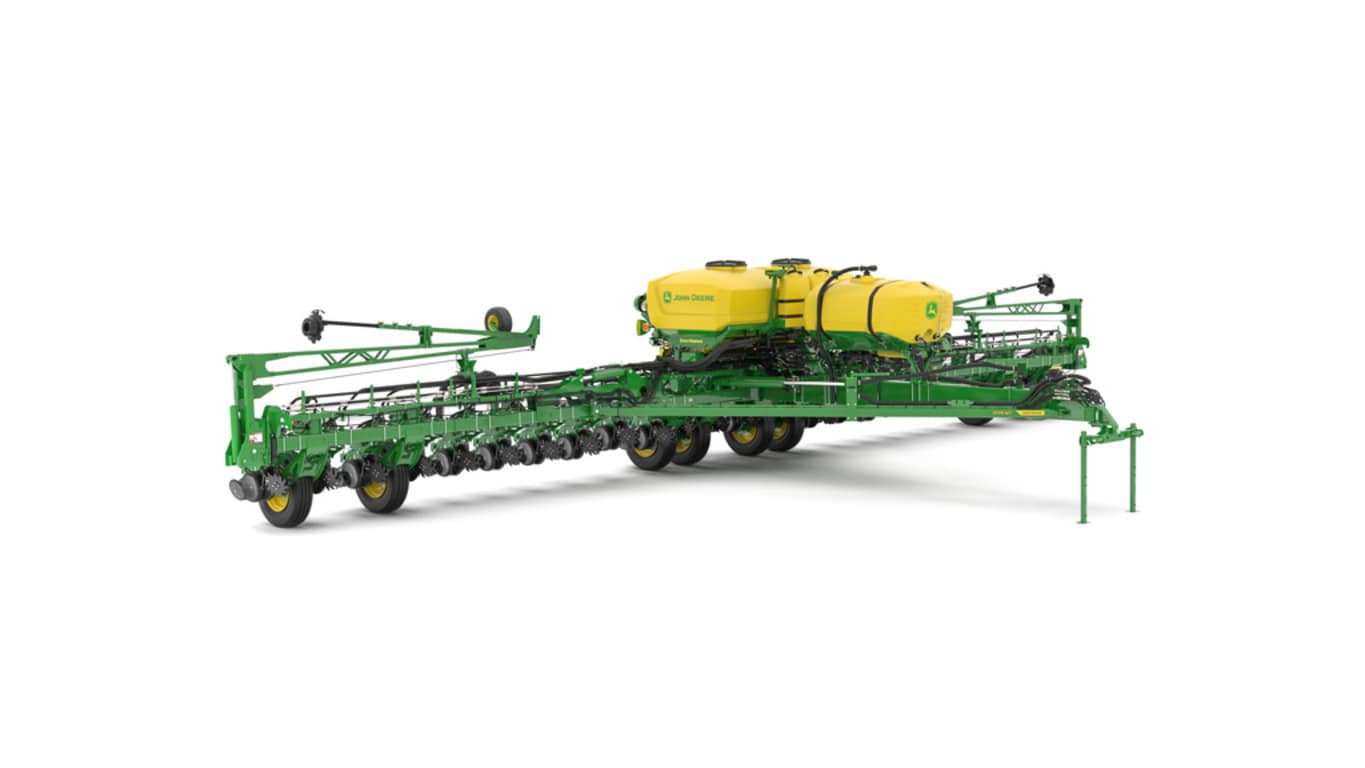

1775NT 24Row30

Key Features & Specs
  • 24 rows on 30-in. spacing
  • Available with optional ExactEmerge™ or MaxEmerge™ 5e row unit or standard in mini-hopper, 1.6-bu., or 3-bu. MaxEmerge™ 5 row unit
  • Insecticide option for mini-hopper and 1.6-bu.
  • 3-section frame flexes 21 degrees up & down with narrow transport of 12 ft.

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Increase visibility with planter auxiliary camera
Planter auxiliary camera Planter auxiliary camera

The planter auxiliary camera utilizes an adjustable magnetic mounting base. This allows customers the ability to move and adjust the field of view to see what’s most important to them.

  • Camera is integrated into the SeedStar™ 5 planter Ethernet system, video is streamed to the CommandCenter™ display
  • Camera is mounted to an adjustable magnetic base allowing customers full adjustability of their field of view
  • Configurable with existing programmable video triggers
  • Compatible with model year 2025 and newer SeedStar 5 planters and performance upgrade kits
  • Mirror image view and adjust field of view from the video app on the G5 CommandCenter™ display
Adjustable magnetic camera mounting bracket Adjustable magnetic camera mounting bracket
Improve liquid fertilizer tendering logistics with fertilizer level sensors
Picture of the liquid fertilizer level sensor Picture of the liquid fertilizer level sensor

Liquid fertilizer level sensing is available on model year 2026 electric drive planters.



Fertilizer level sensing allows farmers to know how much liquid fertilizer is left in the tank from the convenience of the cab. The fertilizer level is displayed on the G5 CommandCenter™ Display in the SeedStar™ app.

  • Better coordinate fertilizer tendering plans by knowing how many total gallons of liquid fertilizer are left on the planter.
  • See total gallons of liquid fertilizer left on both planter and tractor if tractor is equipped with ExactRate™ tractor tanks.
  • Enables customizable low fertilizer tank level warning alarms to prevent running out of liquid fertilizer.
  • Fertilizer tender drivers and farm managers can remotely view fertilizer tank levels from a smart connected device using the John Deere Operations Center™ mobile app.
  • Removes the need for the operator to manually set the fertilizer tank volume and enter the specific gravity.
View cumulative fertilizer tank levels on both 8RX ExactRate tanks and planter liquid fertilizer tank levels on the G5 CommandCenter Display View cumulative fertilizer tank levels on both 8RX ExactRate tanks and planter liquid fertilizer tank levels on the G5 CommandCenter Display
Improve seed tendering logistics with CCS™ tank level sensors
CCS tank levels displayed in the SeedStar™ application CCS tank levels displayed in the SeedStar™ application

Seed level sensing is available on all model year 2026 electric drive planters equipped with Central Commodity System (CCS) tanks operating on the SeedStar™ 5 planter application.



Seed level sensing gives farmers better knowledge of planter seed levels. This reduces the risk of running out of seed while planting also allowing farmers to better manage seed tendering logistics to have the seed in the right place at the right time.



View individual and total tank levels from the G5 CommandCenter™ display in the SeedStar app:

  • Better plan tendering logistics with seed volume or seed percentage remaining
  • Remotely view seed tank percent levels from your computer using John Deere Operations Center™ or from your connected smart device using the John Deere Operations Center mobile app
  • Individual tank level displayed helps farmers prevent one tank emptying before the other
  • Enables customizable low seed tank level warning alarms
Customizable tank level alarms - view tank 1, tank 2 and total seed volume on G5 Display Customizable tank level alarms - view tank 1, tank 2 and total seed volume on G5 Display
ExactShot™ liquid fertilizer dosing system
ExactShot delivers product directly onto the seed in-furrow, eliminating waste between seeds ExactShot delivers product directly onto the seed in-furrow, eliminating waste between seeds

Save on in-furrow fertilizer cost with ExactShot liquid fertilizer dosing system.



High input costs reduce the profitability of any operation. ExactShot can save growers up to 66% of the cost of in-furrow applied nutrients improving their use and efficiency while protecting yield loss along the way. It does this by dosing the product on top of the seed, in the furrow, eliminating the application of product between seeds.



Using less product also results in fewer stops to refill your tanks, improving the overall efficiency of your planting operation.

  • Reduce in-furrow fertilizer use up to 66 percent*
  • Increase time between starter liquid fertilizer refills in the field
  • Maximize nutrient use efficiency by placing product only on the seed
  • Enable the potential to add higher-cost or additional applications

*NOTE: Based on internal tests of an ExactShot system performed across 21 farms in six Midwestern states applying a 5.1-cm (2-in) dose on seeds with 15.2-cm (6-in) in-row seed spacing. ExactShot requires a per acre fee when in dosing mode. In continuous mode there is no fee required.



How does it work?

When paired with John Deere’s ExactEmerge™ BrushBelt™ technology, the system tracks each seed with infinite accuracy from meter to seed trench, synchronizing each dose with the exact timing of the seed drop. Placing the solenoid directly above the nozzle tip, below the row-unit, adds an additional level of accuracy with each dose not found in similar products.

Two modes of operation

The overall benefits of ExactShot may vary with different products, crop types, soils, etc. In these scenarios, the system can be switched to a more traditional continuous stream of product directly from the display. This gives operators the flexibility to quickly change their application method without the need to change hardware on the planter.

Dosing mode screen on G5 display Dosing mode screen on G5 display
Continuous mode screen on G5 display Continuous mode screen on G5 display

Agronomic benefits and savings



Multiple field studies* have shown yields were maintained when the same effective application rate of in-furrow starter fertilizer was dosed directly onto the seed compared to the traditional continuous stream. In some highly responsive instances, as the local rate was increased, yield also increased without adding cost to the application.



By reducing rates, customers can increase their overall profit margins, receiving a higher return on investment with 18.7-L/ha (2-gpa) dosing on-seed compared to 56.1-L/ha (6-gpa) continuous stream. View our ExactShot calculator to see how reduced rates can impact your operation.



Reducing the amount of fertilizer used also reduces the risk of nutrients leaching into nearby rivers, lakes, and ponds.



Additionally, because ExactShot significantly reduces how much product is needed, growers can also gain the ability to use beneficial products in-furrow during planting like biologicals, fungicides, and liquid insecticides that may otherwise be too costly to apply.



*NOTE: Internal tests of an ExactShot system performed across 21 farms in six Midwestern states. ExactShot requires a per acre fee when in dosing mode. In continuous mode there is no fee required.

ExactRate™ Equivalent Valve Pulsing Mode
ExactRate Equivalent Mode Continuous nozzle tip compared to an ExactShot Dosing Mode nozzle tip ExactRate Equivalent Mode Continuous nozzle tip compared to an ExactShot Dosing Mode nozzle tip

Farmers can now select ExactRate Equivalent mode when running the ExactShot system in continuous mode equating to equal continuous fertilizer application performance compared to an ExactRate fertilizer system.   ExactRate Equivalent replaces the previous Auto Pulsing mode. ExactRate Equivalent mode requires the 65-degree black nozzle tips that orient the spray pattern parallel with the row.

Easy fluid transfer with the ExactRate™ fluid transfer system
24-row 1775NT Planter equipped with ExactRate fluid transfer system 24-row 1775NT Planter equipped with ExactRate fluid transfer system

The ExactRate fluid transfer system pairs planters seamlessly with the ExactRate tractor tanks. It provides an easy connection point to allow transfer from the ExactRate tractor tanks back to the planter tank. This enables up 6056 L (1600 gal.)* of combined capacity between the tractor and planter tanks.



  • Factory installed
  • Designed and tested by John Deere to ensure the lines won’t pinch when folding
  • Easily attaches to the ExactRate tractor tanks



ExactRate is available on the following models: 1775NT, 1795, DB44, DB60, and DB66.



*NOTE: 6056 L (1600 gal.) assumes a 2271-L (600-gal.) tank on a 24-Row 1775NT Planter as well as the 3785-L (1000-gal.) capacity on the 8RX Tractor.

Liquid Transfer Automation Liquid Transfer Automation

Spend less time focusing on fertilizer tank transfers and reduce the chance of errors from losing prime in the ExactShot or ExactRate system and prevent overfilling the planter fertilizer tanks with Liquid Transfer Automation. SeedStar 5 planters running an ExactRate or ExactShot fertilizer system now have the option to automate the fertilizer transfer process from the tractor to the planter through setting an SCV assignment with Liquid Transfer Automation. Liquid Transfer Automation also allows farmers the ability to adjust auto fill set-points to help store the weight of the fertilizer on the tractor and off the planter, reducing compaction issue from full fertilizer tanks on the planter.

Liquid Transfer Automation is compatible with SeedStar 5 software only and planters equipped with ExactRate or ExactShot fertilizer systems with fertilizer level sensing.

Easily carry fluid on the planter with liquid tanks
Liquid tank mounted on a 24-row 1775NT Planter Liquid tank mounted on a 24-row 1775NT Planter

John Deere factory-installed liquid tanks offer a convenient way to carry fluid on the planter frame. Styling cues match the CCS™ system tanks, and all brackets and mountings are 100 percent factory installed.



  • Factory installed
  • Up to 2271 L (600 gal.) of fluid capacity
  • Clear sight tube to check fluid level
  • Air bleed and overflow protection
Liquid Tank mounted to a 24-row 1775NT Planter Liquid Tank mounted to a 24-row 1775NT Planter
Decrease ground pressure with factory-installed tracks for 1775NT Planters
John Deere factory-installed tracks on a 24-row 1775NT Planter John Deere factory-installed tracks on a 24-row 1775NT Planter

Alleviate the ground pressure in your center section with John Deere factory-installed tracks. The tracks offer a larger footprint to allow for less compaction and better flotation.



  • 91.7-kPa (13.3-psi) ground pressure (based on weight distribution of a fully ballasted 24-row 1775NT Planter over track flat plate area)
  • 32.2-km/h (20-mph) transport speed
  • Half-full carrying capacity during transport on a 24-row 1775NT Planter
  • 100 percent factory installed



NOTE: Factory-installed tracks are only available on the 1775NT Planters.



These factory-installed tracks increase the planter’s flat plate area from 722.6 cm2 to 2683.9 cm2 (112 sq in. to 416 sq in.), which leads to reduced compaction in the planter’s center rows. When paired with the four tracks on the 8RX Tractor, the full solution provides just 103.4 kPa (15 psi) to the ground.



NOTE: Transport duration, carrying capacity, and transport speed assumes the planter is being pulled behind an 8RX with 61-cm (24-in.) belts. See the tractor/planter Operator’s Manual for additional transport restrictions and information.



Tracks are also available as an aftermarket attachment on 1775NT 12-row, 16-row, or 24-row hydraulic drive and electric drive planters.



Key benefits include:

  • Reduced compaction in the planter’s center rows
  • Better flotation
  • Low maintenance, since all joints on the tracks are lubricated for life
  • Increased transport speeds (32.2 km/h [20 mph]) and cylinder walking features available when installed on model year 2022 electric drive planters



Compatibility:

  • All 1775NT 12-row, 16-row, and 24-row electric drive and variable rate drive machines
  • All 1770NT 12-row, 16-row, and 24-row electric drive and variable rate drive machines
  • Kits are not compatible with ground drive planters (and/or ground drive attachments)
24-row 1775NT Planter on tracks being pulled by an 8410RX model 24-row 1775NT Planter on tracks being pulled by an 8410RX model
Increase visibility at night with light-emitting diode (LED) lighting package
LED light on stairs to the CCS™ system platform LED light on stairs to the CCS™ system platform

As planting windows get tighter, many growers are working longer hours to get the seed in the ground. With the planter LED lighting package, John Deere delivers better visibility when planting a night.



  • Four additional LED lights
  • Improves visibility when planting at night
  • Illuminates row-units when servicing at night
  • Turns on when tractor lights are engaged
EXPAND / CLOSE All
Key Specs
Number of rows24
Row spacing76 cm
30 in.
Frame - Fold configuration
Frame - FlexibilityUp and down: 21 degree (angle)
Row unit seed hoppersCapacity
2.2 L (0.062 bu)
58 L (1.65 bu)
106 L (3.0 bu)
Seed MetersBase
Vacuum
Finger pickup
Optional
Rows and Row Spacing
Number of rows24
Row spacing76 cm
30 in.
Frame
Fold configuration
Frame tube size
Fold-and-go from tractor cab
FlexibilityUp and down: 21 degree (angle)
Hitch
Base
Optional
Rear hitch
Lift System
TypeWheel modules with hydraulic cylinders
Number of cylinders
Tires
BaseImplement tire: VF295/75R22.5
OptionalFactory-installed Soucy tracks
Quantity
Row Units
TypeStandard: MaxEmerge™ 5 row units
Optional: ExactEmerge™ row units
MaxEmerge 5e row units
OpenerTru-Vee double disk
Depth gauging
Adjustment
Walking wheels
Row unit seed hoppersCapacity
2.2 L (0.062 bu)
58 L (1.65 bu)
106 L (3.0 bu)
Row unit down force
Scrapers, opener blades
Seed tube sensors
Seed Meters
BaseVacuum
Optional
Finger pickupOptional
Radial bean meterOptional
Central Commodity SystemSeed capacity
4581 L
130 bu
Drive System
BaseHydraulic variable rate drive
Optional
Number of drive wheels
Drive wheel disconnect
Counter shaft
Drill shaft
Seed transmission
Transmission combinations
Markers
TypeAutomatic alternating or independent control
Control
Marker disk
Shear bolt protection
Less marker option
Closing System
Rubber tire closing system
Cast iron closing system
Herbicide and Insecticide
Insecticide only hopper
Herbicide only hopper
Insecticide and herbicide hopper
Liquid Insecticide System
System available
Tank capacity
Seed Monitor System
Base
Optional
Tillage Attachments
Unit-mounted coulter
Frame-mounted coulter
Bubble blade
.63-in. fluted blade (25 flutes)
.7-in. fluted blade (13 flutes)
1-in. fluted blade (8 flutes)
Row tillage support hanger
Tine tooth
Cons. furrower w/ leading cutout blade
V-wing bed sweeps
Row cleaner
Row cleaner - unit-mounted coulter
Row cleaner - unit-mounted DD fert. opener
Fertilizer
Onboard / towed / tractor tanks
Tank capacity2271 L
600 gal.
Fixed-rate application
Variable-rate application
Pump type
Pump rate
Fertilizer opener type
Flow divider distribution system
Pressure manifold distribution system
Dry fertilizer
ExactRate Fluid Transfer SystemAvailable
Dimensions
Transport width (with markers)3500 mm
137.8 in.
Transport width (without markers)
Transport length13320 mm
524.4 in.
Transport height3588 mm
141.26 in.
Transport weight
Transport underframe clearance
Field operation height
Field operation width18977 mm
747.1 in.
Field operation length8862 mm
348.9 in.
Ag Management Solutions
Map-based seeding
Field documentation
Parallel tracking
Additional Information
Recommended tractor horsepowerMinimum tractor size required: 90 kW
120 PTO hp
Operating with extra planter attachments or when planting in soft seedbeds and rolling ground, more tractor power is required.
Recommended tractor hydraulicsHydraulic oil required to operate machine: 5.7 L
1.5 gal.
Hydraulic system working pressure: 20,684 kPa
206.84 bar (3000 psi)
Hydraulic system burst pressure: 82,737 kPa
827.37 bar (12,000 psi)
Tractor standby pressure: 15,514 kPa
155.14 bar (2250 psi)
Warranty length
Date collected
