A liquid-cooled, 3-cylinder diesel engine provides exceptional power, performance, fuel economy, and durability to handle commercial-use applications:

• Large displacement provides exceptional torque
• Cast-iron block improves noise absorption
• Quality features include cast-iron cylinder liners, overhead valves, full-pressure lubrication, and replaceable oil filter
• Solenoid-shift starter ensures easy starts, even in cold weather
• High-energy glow plugs ensure quick starts in cold weather; an automatic sensing system tells the operator when the engine is ready to start
• Mechanical fuel bleed eliminates the need for tools and fuel leaking onto the ground when bleeding the fuel system:
  • Simply pump the fuel pump that is located on the side of the engine
• Electric fuel shutoff eliminates the need for a separate kill switch
• Indirect injection with pre-combustion chambers provide smooth, quiet operation
• Engine-mounted 40-amp alternator supplies regulated charge to the battery for fast recharge:
  •  Also provides plenty of power for 12-volt-powered attachments and accessories
• Low exhaust emissions are certified to meet U.S. Environmental Protection Agency (EPA) and state of California standards for cleaner air:
  • Overhead valve design for efficient airflow
  • Swirl chamber combustion design for efficient combustion
  • Liquid cooled for more consistent operating temperatures
  • Closed crankcase ventilation recirculates and burns crankcase hydrocarbons

Horsepower (hp)	Maximum torque	Cooling	Displacement
24 hp (17.9 kW)	---	Liquid	60.6 cu in. (993 cc)

Air-intake system

Engine intake air is drawn in through screened panels at the base of the pedestal and on the right and left sides of the tractor:

• Cleanest and coolest area of the tractor
• Pre-cleans the air to keep large chaff and debris from entering the radiator or air cleaner
• Easy to clean and service so engine operates at optimum temperature

The diesel engine uses a heavy-duty cyclonic canister-type replaceable air filter:

• Completely sealed for effective cleaning
• Cyclone action that is designed to eject 90 percent to 95 percent of the dirt before it reaches the paper element
• Secondary safety element that provides additional filtering
• Total effective filter area of 512 sq in. (3303 sq cm)

An air filter restriction indicator is standard equipment:

• Indicator light on the dash alerts the operator when the air filter is dirty and needs to be replaced
• With a visual check, air filter daily service is simplified
• Indicator extends the engine life by eliminating inadvertent dirt entry into the engine from over-servicing of the air filter

Fuel tank has a large 5.2-U.S. gal. (19.7-L) capacity

A large, 5.2-U.S. gal. (19.7-L) capacity fuel tank holds enough fuel for extended operation between refills:

• Fuel-fill location is on the left fender for easy access, increased safety, fewer spills, and convenience during filling.
• A fuel filter/separator with replaceable element includes a shutoff valve and is conveniently located on the front of the engine.

Battery and alternator are large capacity

A high-capacity, regulated alternator charging system provides plenty of power to quickly recharge the battery and run electrical equipment, such as lights or a sprayer:

• 40-amp alternator is provided as standard equipment on diesel engines.

A large-capacity, 500 cold-cranking amp battery provides plenty of cranking power for quick, sure starts in cold weather:

• Mounted at the front of the tractor frame for easy accessibility

A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently. The deck is forged from 9-gauge, 0.15-in. (3.8-mm) steel and has welded-on reinforcement at the bottom edge for extra strength and durability.

High-capacity mower decks are formed in a hydraulic press to minimize the number of welds and provide a smooth underside for reduced material buildup:

• Wider and higher discharge opening provides an even clipping dispersal for an excellent finished appearance in all conditions.
• Durable plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
• 1-in. (2.5-cm) cold-forged spindles are heat-treated for strength and supported by ball bearings.
• Front edge is raised above the blade plane to allow even cutting of tall grass.
• Blade overlap is greater than many conventional decks for a clean cut.
• Mower can side-discharge, mulch (optional), or use a Power Flow™ collection system (optional).

Ramps are provided to permit driving over the mower deck for installing and removing it from the tractor:

• Constructed of 30 percent glass-filled polypropylene for strength to carry the weight of the tractor
• Polypropylene material will not rust or corrode for lasting good appearance
• Shark tooth shaped grips designed into the ramp inclines for added wheel traction when driving onto the mower deck
• Tire grab at the rear of the ramp gives extra wheel traction
• Ramps removed and replaced without tools to permit convenient servicing of the mower spindles

A wash port is provided to make cleaning the underside of the mower deck easy:

• Hose connector is included with the mower deck.

Optional high-performance mulching attachment

The high-performance mulching attachment provides excellent mulching performance:

• This is a high-performance mulching attachment that includes formed steel baffles to control the material and special mulching blades for superior performance.
  • The special mulching blades that are included can also be used for side discharging and collecting, though overall performance may be slightly less than with the standard blades.
• Order: BM23977, 54 HC mulching attachment  or BM23978 60 HC mulching attachment



Optional MulchControl™ attachment

The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

• A beautiful looking lawn
• Grass clippings not blown onto the operator, driveways, or flower beds
• Less fertilizer use
• Elimination of the effort needed to dispose of clippings

MulchControl is an innovative, simple design that is easy to use and maintain:

• The MulchControl attachment includes baffles to control the flow of material under the deck.
• The left mower blade area is completely enclosed and optimized for mulching, thus will mulch even when the mower is in the side-discharge mode.
• Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.

MulchControl operation

The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:

• The operator is required to get off of the machine in order to engage or disengage mulch mode.

An optional hydraulic MulchControl actuator attachment is available to replace the standard control lever and allow the operator to control MulchControl from the seat using the tractor’s hydraulic control lever.

NOTE: To have hydraulic control of the MulchControl baffle, both MulchControl and hydraulic MulchControl actuator attachments must be ordered. The hydraulic MulchControl actuator is an extra-cost option for the MulchControl attachment.

Changing from mulching to side discharge or vice versa with the hand lever or hydraulic MulchControl actuator option takes only a few seconds.



MulchControl is well-suited to the following mowing situations:

• Usually mulch, but side discharge when grass gets too long
• Usually side discharge, but would like to be able to close the chute to control clippings
• Always mulch a main lawn, but often side discharge secondary lawns
• Bag clippings, but want to go farther before emptying bags

MulchControl puts the operator in control of the clippings. Now the operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.

MulchControl limitations

While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

• When cutting strong southern grasses, such as Zoysia and Bermuda
• When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
• When optimum bagging and lawn clean-up is desired

MulchControl compatibility

MulchControl is a field-installed attachment. Mulching blades are included:

• MulchControl is for 2015 and newer X700 Signature Series Tractor and:
• 9074M 54-in. (137-cm) HC Mower Deck (serial number 030,001-070,000)
• 9078M 54-in. (137-cm) HC Mower Deck (serial number 070,001-)
• 9075M 60-in. (152-cm) HC Mower Deck (serial number 030,001-070,000)
• 9079M 60-in. (152-cm) HC Mower Deck (serial number 070,001-)
• Optional hydraulic MulchControl actuator (BUC10536) is available for model year 2019 and newer mower decks (9078M and 9079M) only. In addition, mower must be equipped with the basic MulchControl attachment.



NOTE: The hydraulic MulchControl actuator is not available for the 48-in. (122-cm) Accel Deep™ Mower Deck.

Order:

BM26300 MulchControl attachment (54 HC)

BM25258 MulchControl attachment (60 HC)

BUC10536 Hydraulic MulchControl actuator

Mower deck attachability

High-capacity mower decks have ramps positioned on top of the deck for easy installation:

• On a four-wheel drive (4WD) tractor, the operator can simply drive onto and over the deck.
• On a two-wheel drive (2WD) tractor, the operator must back onto and over the deck.

To remove the mower deck:

• Disconnect the drive shaft.
• Unlock the draft arm locks.
• Back or drive the tractor onto and off the mower deck.
  • On a 4WD tractor, the operator can simply back onto and off the deck.
  • On a 2WD tractor, the operator can simply drive forward onto and off the deck.

Optional AutoConnect™ drive

The AutoConnect driveshaft is an optional kit that will automatically connect or remove the drive from the mower deck to the tractor's mid power take-off (PTO) shaft.



The AutoConnect drive does not need to be removed from the tractor when using front-powered equipment.



Drive-over mower quick reference (major steps)

John Deere has designed a system that makes it easy to remove and reinstall the mower deck. A few steps need to be followed carefully to ensure success.

The list below includes the major steps. Refer to the operator’s manual for a more detailed procedure. The tractor most likely has the mower already installed, so these steps begin with the removal procedure.

DRIVEJD - Always Dependable Product



                                                                 Mower removal steps

Drive tractor to level area.



Ready mower deck.

• Adjust wheels and lower mower deck
• Draft arms removed (front) and released (rear)
• Power take-off (PTO): disconnect if manual PTO-connect system, then back up to clear rear draft arms (If equipped with AutoConnect™, backing up also disconnects the PTO)
  • Raise rear draft arms

 Increase engine speed, engage traction assist, and drive over.



                                                                 Mower installation steps

Verify tractor and mower are ready.

• Alignment of tractor and mower deck
• Draft arms up
• PTO in correct position (If manual PTO connect, place shaft in mower hanger)

 Engage traction assist, increase engine speed, and drive or back over.



Join mower to tractor.

• Alignment and attachment verified and PTO connected
• Draft arms hookup, front
• Position mower wheels

Done! Set mower deck height and mow.

An exclusive 4-year or 700-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X700 Series Tractors.

• The warranty is hassle free, with one company handling all of the paperwork.
• Premium features of X700 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Power steering is standard equipment on all X700 Series Tractors. It provides effortless, automotive-like control:

• Reduced operator fatigue
• Better maneuverability
• Increased productivity

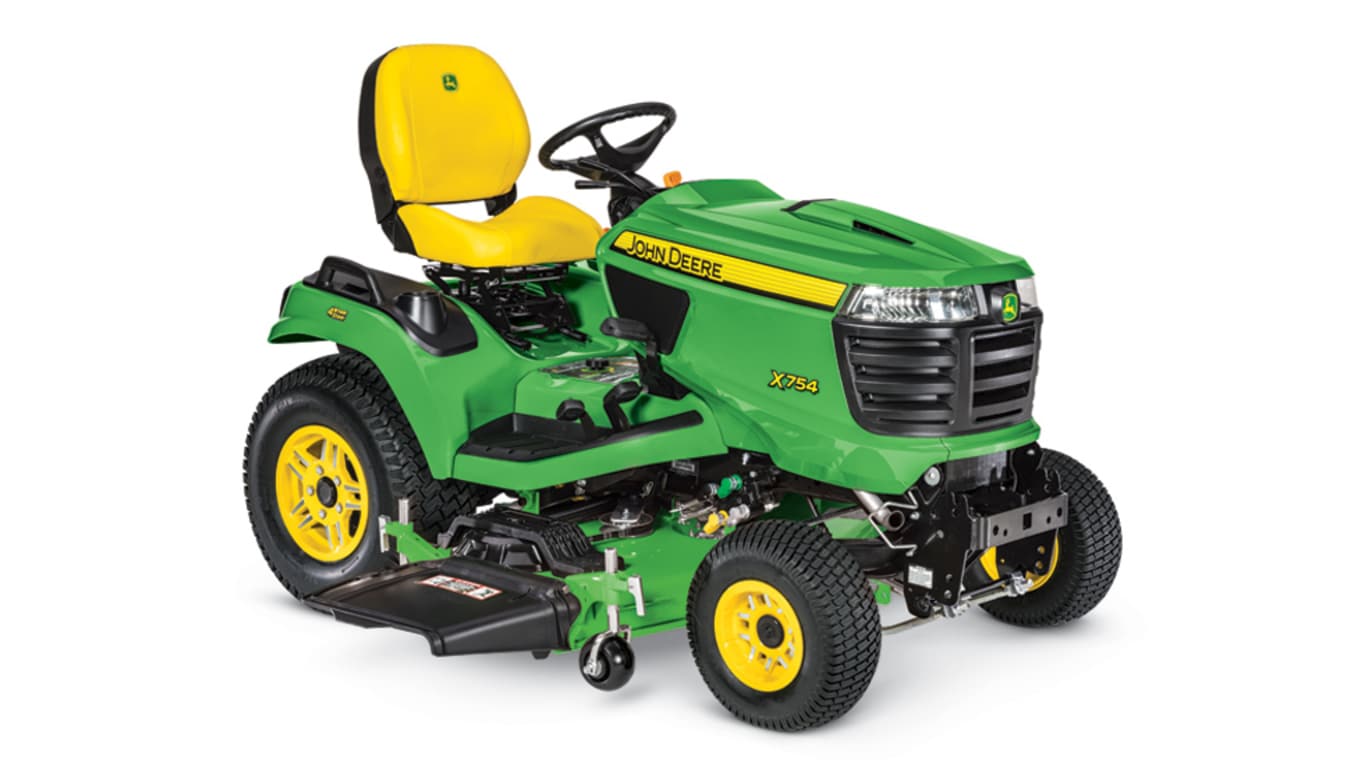

Four-wheel power steering on the X734, X739, and X754 Tractors provides very significant maneuverability and trimming advantages over two-wheel-steering equipped tractors:

   1. The uncut circle diameter is greatly reduced, eliminating or greatly reducing the need to back up when trimming around trees, shrubs, etc.

• Cutting inside turns created by landscaping, flower beds, etc. can also be done much more efficiently with a four-wheel-steer equipped tractor.

   2. Interference from the mower and tractor wheels is eliminated because they are several inches away from the object being trimmed around.

• When cutting rectangle-shaped areas, square corners can be cut more effectively and efficiently.

   3. The outside turning circle is reduced, decreasing the time spent turning and increasing mowing efficiency.

The X739 Tractor has both full-time four-wheel drive (4WD) and four-wheel steering, which gives it the optimum in both traction and maneuverability.

	Two-wheel steer (X730, X750)	Four-wheel steer (X734, X754)	Full-time 4WD (X738, X758)	Full-time 4WD with four-wheel steer (X739)
Turning radius	25 in. (63.5 cm)	21 in. (53.3 cm)	25 in. (63.5 cm)	21 in. (53.3 cm)
Uncut circle radius (60- in. (152-cm) mower deck)	28 in. (71.1 cm)	6 in. (15.2 cm)	28 in. (71.1 cm)	6 in. (15.2 cm)
Turns lock-to-lock left	2.4	2.5	2.3	2.2
Turns lock-to-lock right	2.4	2.5	3.1	2.8

The tilt steering wheel can be adjusted for optimum operator comfort:

• Six positions can be selected with the push of a lever for the most comfortable setting.
• The full-up position makes getting on and off the tractor easy.
• The steering wheel is designed for comfortable, no-slip operation.

Two-piece tilt-back seat

Two-piece, 21-in. (53-cm) high-back seat, with John Deere branded embroidery, has a thick seat cushion for lasting comfort, even after a full day of use. The back can be angled to maximize operator comfort by using a convenient lever on the side of the seat.

A four-bar adjustable seat suspension and 7-in. (18-cm) slide-rail fore-aft adjustment are provided to optimize operator comfort.

Optional armrest kit

Optional armrests increase operator support and comfort, thus reducing fatigue and improving productivity, especially when mowing for extended periods of time. Armrests are adjustable to suit the operator. The embroidered logo on the seat back makes this upscale seat look as good as it feels.

Optional air-ride suspension seat

The optional air-ride seat minimizes vibration the operator feels while using the tractor and provides a very smooth ride. This seat has a full pneumatic suspension that is easy for operators to adjust to suit their individual needs. Wide, shaped ergonomic cushions are comfortable and reduce back strain.

Features include:

• Simple switch on the front of the seat makes adjustment easy
• Back-angle adjustment
• Three-position lumbar adjustment
• Armrest height adjustment
• 7-in. (18-cm) fore-aft adjustment

Key benefits of the seat:

• Provides maximum ride comfort and quality, thus minimizing operator fatigue
• Dampens lower frequency vibration better than mechanical suspensions

NOTE: The air-ride seat is compatible with all X700 Signature Series Tractors, model year 2013 and later (serial number 010,001-). Plug and play wiring harness for use with the air-ride suspension seat has been added to model year 2019 tractors (serial number 70,001-) to reduce seat-installation time. Model year 2013-2018 (serial number 010,001-070,000) requires AM146765 wiring harness. See DTAC solution 115258 for more information.

Foot pads

Foot pads help isolate the operator's feet from vibration:

• Provide a non-slip surface for safer mounting or dismounting the tractor
• Attractive styling

Handgrips, toolbox, cup holder, and 12-V outlet

The fender handles provide a convenient handhold to use when getting on and off the tractor and when operating on slopes:

• Plastic material is durable and will not rust.
• The cup holder is designed to hold a variety of drink container sizes.
• Toolbox provides a safe and convenient location to store tools and supplies.
• Exact Adjust mower leveling tool and gauge storage features are provided in the tool box.

12-V outlet

12-V outlet located for the convenience of connecting a variety of electrical and electronic equipment:

• Outlet switch is located on the dash for starting and stopping an electric spreader or sprayer.

Headlights and taillights provide good visibility

Large, automotive-type headlights and taillights provide unsurpassed nighttime illumination:

• Standard 37-W halogen headlights provide excellent nighttime visibility.
• Large automotive-type taillights enhance the tractor's appearance and safety.
• Headlights, taillights, and rear work lights are easily operated with a single dash-mounted switch.

Rear lights provide visibility for the tractor operator and others:

• Standard backup lights can be turned on full time to double as rear work lights.
• Backup lights come on automatically when the operator depresses the reverse pedal.

An advantage of X700 Series Garden Tractors is their ability to use attachments for snow removal and a variety of other yard-care tasks.

The front quick-hitch mounting system allows for a tool-free change between the front blade, rotary broom, and snow blower. Additional attachments available for use with the equipment listed below include:

• Quik-Tatch tractor frame weights to add ballast for traction and stability
  NOTE: Ballast is required for some applications.
• Tire chains or TerraGrip traction belts for extra traction when using snow-removal equipment
• Weather protection (shown below) for operator protection and comfort

47-in. (119-cm) and 54-in. (137-cm) Quick-Hitch Snow Blowers

The 47-in. (119-cm) and 54-in. (137-cm) Snow Blowers have the capacity to handle big snow-removal jobs.

The front quick-hitch mounting system allows for a tool-free change between the front blade, rotary broom, and snow blower.

54-in. (137-cm) and 60-in. (152-cm) Quick-Hitch Front Blades

The 54-in. (137-cm) and 60-in. (152-cm) Front Blades are excellent for moving snow, gravel, dirt, sand, or other loose material. They can be hydraulically angled up to 27 degrees right or left or used in the straight-ahead position.

52-in. (132-cm) and 60-in. (152-cm) Rotary Brooms

The 52-in. (132-cm) and 60-in. (152-cm) Rotary Brooms increase tractor versatility by allowing use for a variety of sweeping jobs. The broom effectively meets the needs of commercial, farm, home, and estate operators with four-season versatility:

Spring
Rotary brooms can be used to dethatch lawns and clean off tennis courts and other areas quickly and effectively.

Summer
Rotary brooms effectively perform a wide variety of sweeping jobs, including cleaning sidewalks, parking lots, driveways, construction job sites, and barns. They can also be used for backfilling trenches.

Fall
Rotary brooms can be used to sweep leaves and windrow pine needles. They sweep artificial turf and clean up spectator areas after sporting events.

Winter
Rotary brooms effectively move up to 2 in. (5 cm) of snow, which may eliminate the need for a snow thrower, depending on the geographic area.

47-in. (122-cm) Rotary Tiller

The 647 Rotary Tiller is 47-in. (122-cm) wide and ideal for preparing seedbeds, controlling weeds, and other tillage jobs for homeowners, golf courses, hospitals, schools, and estates. It requires a tractor equipped with a Category 1, 3-point hitch and 540-rpm rear power take-off (PTO).

Weather enclosure and hard-side cab

The roomy steel-frame weather enclosure shields the operator against snow, rain, sun, and wind.

This hard-side cab is rollover protection structure (ROPS) certified for extra protection:

• An electric front windshield wiper is included.
• Optional attachments for the hard-side cab include a heater, heater disconnect kit, inside and outside mirrors, rear window wiper, strobe light, work lights, switch panel fuse block kit, and optional tractor alternators to provide extra capacity to operate the cab accessories.

The contoured dash has clean, attractive styling and ergonomic controls for easy use:

• Controls are color coded for easy identification by the operator.
• Controls are logically placed and easy to reach.
• The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
• The reverse implement option (RIO) switch is an easy-to-see and easy-to-use yellow button.
• Cruise control activation is handled by an automotive-style button.
• Functional design of the throttle control provides good appearance and a comfortable feel.

The instrument display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:

• Display features dark-cockpit design to minimize operator distractions.
• Display is back lit for night visibility.
  • Night visibility is especially useful with snow blower use.
• Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
• Electronic fuel gauge provides real-time fuel level information.
• A tachometer graphically displays engine speed.
  • Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
• An indicator tells the operator when the PTO is operating.
• Bright caution and stop lights capture the operator's attention when important information is on the instrument cluster.
  • Damage can be prevented and repair costs reduced by addressing problems early.
• Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
  • The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
• Operators are advised if battery voltage is low, normal, or excessive.
• The service indicator light illuminates to indicate a diagnostic error code is stored.
  • On-board diagnostics provides trouble codes for use by trained technicians.
    • For example, a technician will be able to test switch functionality and circuit continuity without tools.

Twin Touch™ foot control is easy to use and has cruise control

Twin Touch foot pedals control the speed and direction of travel:

• Automotive-type accelerator control for easy operation
• Twin Touch design that allows operator to change direction without lifting foot off platform
• Large pedal surface for increased operator comfort

When the master brake pedal is depressed, the PTO and cruise control disengage.

Cruise control is standard equipment:

• To engage, push in on the cruise lever and hold until the foot is removed from the forward pedal.
• For emergency stop, the cruise control can be released by pushing on the master brake pedal or pushing down on the forward pedal.

Differential lock

A foot-operated differential lock supplies positive power to both rear drive wheels for increased traction:

• Differential lock button is conveniently located on the left footrest for easy engagement.

Hydraulic power steering gives effortless control

Power steering is standard equipment. It provides effortless, automotive-like control:

• Reduced operator fatigue
• Better maneuverability
• Increased productivity

	Two-wheel steer (X730, X750)	Four-wheel steer (X734, X754)	Full-time four- wheel drive (X738, X758)	Full-time four-wheel drive with four- wheel steer (X739)
Turning radius	25 in. (63.5 cm)	21 in. (53.3 cm)	25 in. (63.5 cm)	21 in. (53.3 cm)
Uncut circle radius (60- in. (152-cm) mower deck)	28 in. (71.1 cm)	6 in. (15.2 cm)	28 in. (71.1 cm)	6 in. (15.2 cm)
Turns lock-to-lock left	2.4	2.5	2.3	2.2
Turns lock-to-lock right	2.4	2.5	3.1	2.8

Parking brake control

The parking brake control is conveniently located below the key switch on the steering pedestal:

• Holds the brake pedal securely in the locked position

Depressing the brake pedal disengages the PTO and cruise control:

• Allows the engine to be started
• Applies wet-disk brakes (internal in transmission) for use as a parking brake

Mower deck height-of-cut control

The depth stop allows setting the mower height from the operator's seat:

• Locks the mower in fully raised position so 3-point hitch equipment can be raised or lowered independently of the mower
• Returns mower deck to the same preset height each time it is lowered
• Provides a mower cut-height range from 1 in. to 5.25 in. (2.5 cm to 13.3 cm)
• Informs the operator of the approximate mower cut-height through an indicator

Exact Adjust ports on either side of the fender deck allow access to the rear mower deck height adjusting links:

• Allow mower deck to be easily leveled side-to-side
• Leveling can be done from above the fender deck by using the Exact Adjust tool

Exact Adjust

Exact Adjust tool and mower deck leveling gauge are stored in the toolbox to provide a convenient means of checking and adjusting the deck level:

• Used in conjunction with Exact Adjust ports for easy and accurate leveling of the mower deck for optimum mowing performance

Consult the operator's manual for the correct adjusting procedure. Basic adjusting steps to properly level the mower deck include:

• Park the tractor on a level surface.
• Inflate tires to the correct pressure.
• Consult the label for the cutting-height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.
• Set mower cutting-height knob to the correct deck-leveling position.
• Adjust mower wheels as necessary so they do not contact the ground surface.
• Remove the onboard deck-leveling gauge and Exact Adjust tool that are located in the tractor toolbox.
• Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim. The location of adjustment points will vary slightly between decks.
  • Left- and right-rear adjustment points are under the deck rim near the rear mower wheels.
• Adjust mower deck front-to-back level, if necessary.
  • Loosen rear nuts equally on each side of front lift rod.
  • Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
    • Front adjustment point varies by mower deck
  • Tighten rear nuts after adjustment is complete.
• Return the gauge and tool to their storage position in the toolbox.

NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key. The rounded end allows for some misalignment with the bolt as the deck is adjusted.

Two-function hydraulics give effortless control of equipment

A two-function hydraulic control system is standard equipment.

The hydraulic system allows effortless equipment control:

• Raising and lowering
• Angling and spout rotation
• Control levers
• Levers are positioned on the steering pedestal for quick, easy, and precise fingertip control of equipment.
• Lower lever has a float position, allowing front-mounted equipment such as a blade, snow blower, or rotary broom to follow the contour of the ground.

Four hydraulic couplers with color-coded covers are available for quick, easy connections.

John Deere Signature Series are the very best mowing tractors available and can also handle a wide range of other yard care chores, such as snow removal, lawn cleanup, and landscaping work. These heavy-duty tractors include models with two-wheel drive (2WD) and four-wheel drive (4WD), two- and four-wheel steering, and even a model with full-time 4WD and four-wheel steering.

Standard equipment styled alloy wheels and John Deere brand embroidery:

• Standard equipment styled alloy wheels give X700 Series Tractors a fresh, upscale appearance that goes well with their high-quality standards and superior performance.
• John Deere brand embroidery has been added to the standard equipment 21-in. (53-cm) two-piece adjustable seat to make it look as good as it feels.

The open platform is roomy and uncluttered:

• Makes getting on and off the tractor easy
• Provides ample legroom with built-in heel pockets for comfortable operation

The single-piece hood completely encloses the engine:

• Improves appearance
• Provides quieter operation
• Easy to remove for service accessibility
• Painted hood
  • More scratch and scuff resistant than molded-in color
  • Deep scratches repairable with paint

Important advantages for superior mowing performance and equipment versatility

Available mower decks include a 48-in. (122-cm) Accel Deep™ Mower Deck or 54-in. (137-cm) or 60-in. (152-cm) Edge™ High-Capacity Mower Deck. All mowers have premium design features to give a clean, level cut and excellent performance, whether side discharging, mulching, or collecting lawn material.

X700 Signature Series Tractors offer these important performance advantages:

• Heavy-duty robotically welded frame for the strength to operate a wide variety of equipment
• Plenty of engine horsepower and torque to operate larger equipment
• Electronic fuel injection (X730, X734, X738, X739)
  • Fast and sure starts
  • Better fuel economy than carbureted engines
  • Reduced emissions
• Diesel models (X750, X754, X758)
  • Increased durability
  • Improved fuel economy
  • U.S. Environmental Protection Agency (EPA) Final Tier 4 compliant
• Easy-to-operate Twin Touch™ foot-controlled hydrostatic transmission
• Power steering for quick, precise control
• Four-wheel drive for optimum traction in any use and ground condition (X738 and X758)
• Four-wheel steering for unsurpassed trimming ability (X734 and X754)
• Full-time four-wheel drive and four-wheel steering for unsurpassed traction, maneuverability, and trimming ability (X739)
• Differential lock for increased traction control
• Hydraulic power take-off (PTO) clutch with soft, modulated engagement
• Shaft-driven equipment versus a belt drive
• Shaft-driven transmission versus a belt drive
• Automotive-type dash instrument cluster with gauges and indicator lights
• Two-spool hydraulic control valve with outlets
• From-the-seat adjustable mower depth stop with gauge
• Exact Adjust mower-leveling feature with onboard gauge and adjusting tool
• Automotive-type headlights and taillights
• Optional 540-rpm rear PTO
• Optional limited Category 1 3-point hitch for rear-mounted equipment

Frame is full-length welded steel for strength

The full-length, welded C-channel steel frame provides plenty of strength to handle heavy equipment:

• Frame side rails are formed from 7-gauge, 0.18-in. (4.6-mm) steel for extra strength.
• The front bumper/weight bracket is formed from heavy, 0.375-in. (9.5-mm) steel.

The frame is robotically metal inert gas (MIG) welded:

• Consistent welds for maximum strength
• No bolts to come loose

A front Quik-Tatch weight bracket is designed into the frame:

• Provides a convenient way to add up to 168 lb (76 kg) of weight to the front of the tractor using four suitcase weights
• Extends ahead of the hood to act as a bumper

A front receiver hitch is designed into the frame:

• Optional drawbar/ball mount and hitch balls are available.
• Excellent for positioning trailers, boats, etc., in tight quarters.

An optional rear receiver hitch is available.

Front axle and wheel spindles are heavy duty

The front axles are made of strong, shock-resistant cast iron:

• Will not bend or deform, as is possible with steel-fabricated axles
• Replaceable bushings are used at the center axle pivot and spindles
  • Provide excellent wear resistance
  • Easy service and maintenance with grease fittings

The 2WD tractors use large, 1-in. (2.5-cm) diameter wheel spindles for durability:

• Have the strength to handle heavy front implements
• Provide long life at bearing surfaces
• Use sealed precision bearings in the front wheels for long life

The 4WD tractors use heavy-duty cast and machined front spindle and wheel motor assemblies for durability and long life.
