- Replaceable and adjustable ripper shanks
- iMatchTM compatible
- Replaceable and reversible blade
- Fixed tailgate
Features
Expand AllCollapse All

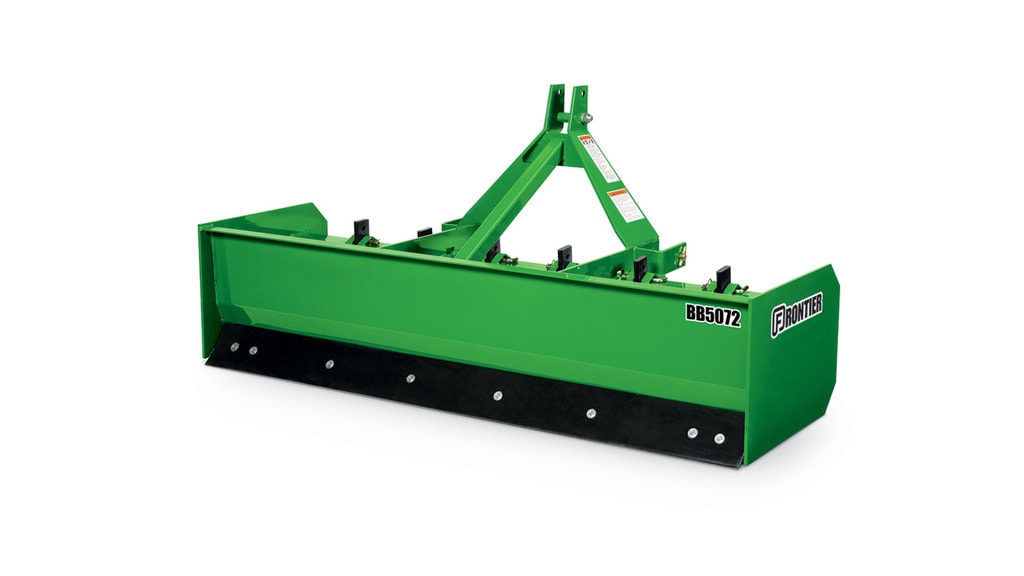

Strong formed upper edge
BB Series Box Blade cutting edge is reversible
Innovative hitch system
BB50 Series scarifier
Fixed back plate is heavy duty for added rigidity
Strong formed upper edge
The heavy-duty concave back plate, with a formed upper edge, provides added rigidity and strength for trouble-free performance.
Cutting edge is strategically positioned for a fine finish
BB Series Box Blade cutting edge is reversible
The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.
Fixed tailgate helps in rough situations
The tailgates on the BB50 Series Box Blades are fixed, giving the cutting edge extra power to slice through hard, compacted ground.
iMatch™ quick-hitch compatible for quick, efficient hookup
Innovative hitch system
The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.
Scarifier has three depth adjustments for a variety of ground conditions
BB50 Series scarifier
Adjustments are easy on the BB50 Series Box Blades. Simply remove the steel pin and raise or lower the scarifier to increase or decrease ground penetration.
Scarifier shanks can be stored on the scarifier beam when using a box blade for other tasks.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere BB50 Series Box Blades |
Dimensions
| Working width | 243.8 cm 96 in. |
|||
|---|---|---|---|---|
| Unit height | 85.1 cm 33.5 in. |
|||
| Unit depth | 78.7 cm 31 in. |
|||
| Endplate thickness | 1 cm 0.375 in. |
|||
| Moldboard thickness | 0.5 cm 0.1875 in. |
Weight
| Operating weight | 273.1 kg 602 lb |
|||
|---|---|---|---|---|
| Shipping | 288.9 kg 637 lb |
Tractor compatibility
| PTO Horsepower | 20.1-41.8 kW 27-56 hp |
|---|
Hitch
| Compatibility | Cat. 1 | |||
|---|---|---|---|---|
| iMatch™ compatible (Cat. 1) | Yes | |||
| Quick coupler (Cat. 2) |
Box
| Capacity | 0.6 m3 21.24 cu ft |
|||
|---|---|---|---|---|
| Design | Box |
Cutting edge
| Reversible | Yes | |||
|---|---|---|---|---|
| Quantity | Two | |||
| Size | 0.95×15.24 cm 0.375×6 in. |
Scarifier shank and beam
| Shank type | 4 Position with holes | |||
|---|---|---|---|---|
| Points | Hardened, crimped | |||
| Quantity | Seven | |||
| Tubular scarifier beam size | 10.16×10.16×0.64 cm 4x4x0.25 in. |
|||
| Beam reinforcement bar size | 1.27×1.27 cm 0.5×0.5 in. |
Tailgate
| Type | Fixed |
|---|
Mast
| Type | Welded |
|---|
Paint
| Color | JD Green |
|---|
Shipping
| Configuration | Two per crate |
|---|
Set-up time
| Labor hours | 0.25 |
|---|
Warranty
| Time period | 1 year |
|---|
