- Durable construction for heavy-duty jobs
- Hydraulic retractable scarifiers
- Cat. 1 and Cat. 2 3-point hitch compatible
- Replaceable and reversible cutting edge
Features
Expand AllCollapse All
Heavy-duty Scarifiers
Easy hitch connections
Precise leveling with steel cutting edge
Durable Solid Moldboard
Replaceable and Adjustable Hydraulic Scarifiers

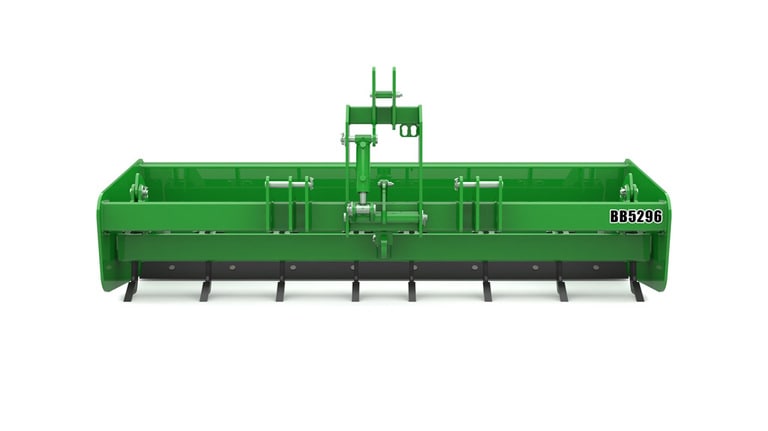

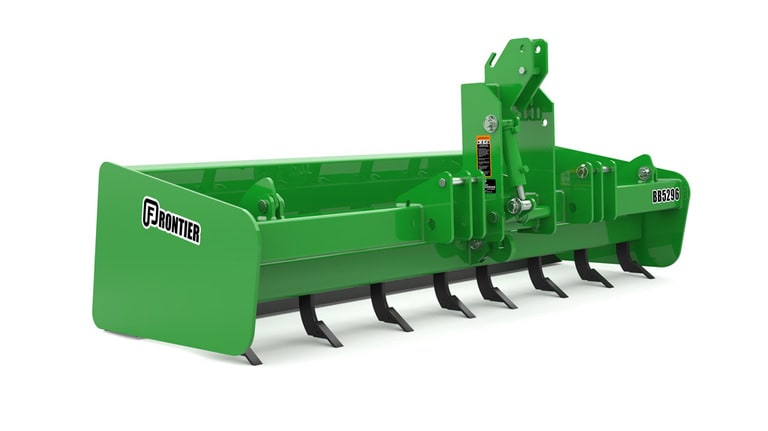

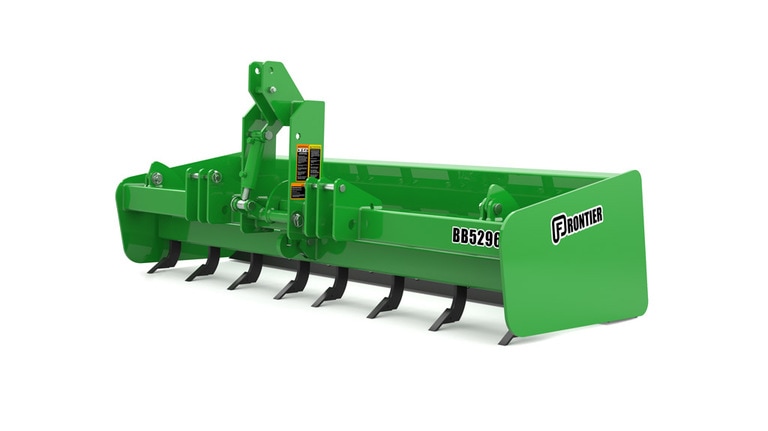

Heavy-duty Scarifiers
Replaceable heavy-duty scarifiers have multiple adjustment holes for quick and easy changes to shank penetration level. The scarifiers work great for the purposes of chipping or deep digging.
Quick Hitch System Attaches Easily
Easy hitch connections
iMatch™ quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.
Replaceable and Reversible Blade for Longevity
Precise leveling with steel cutting edge
Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.

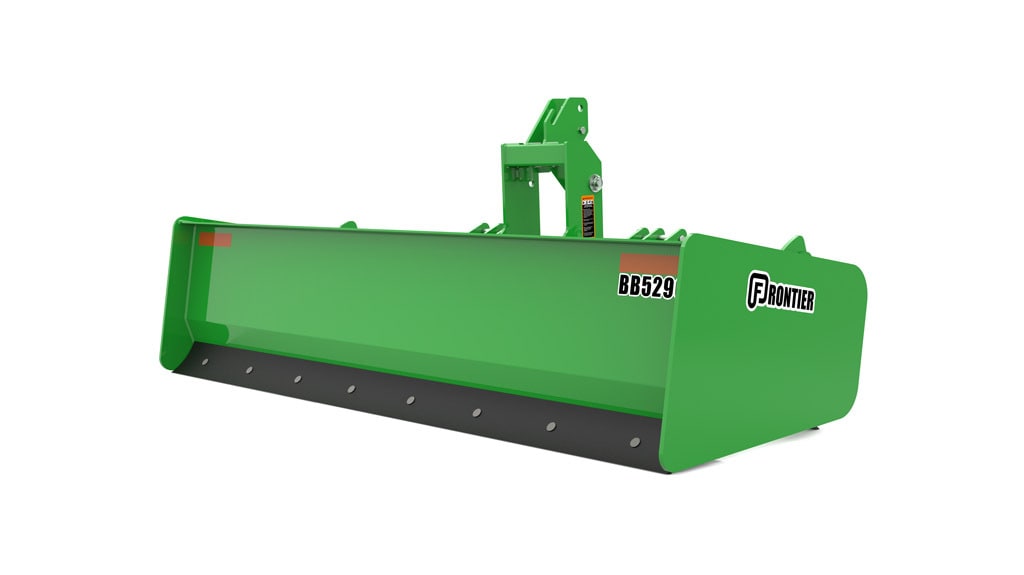

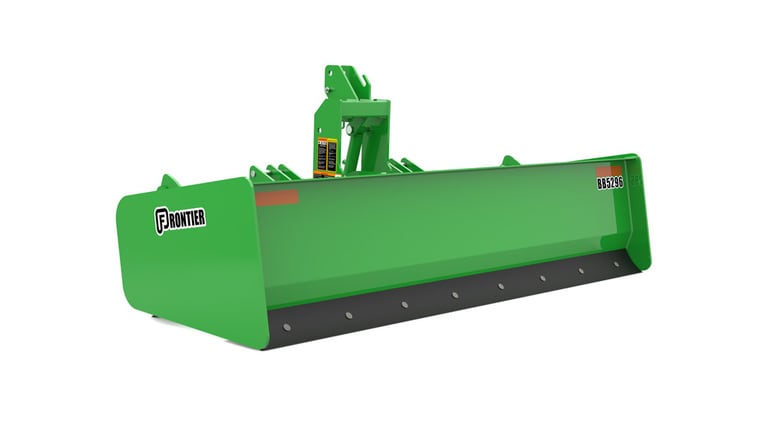

Solid Moldboard Provides Extra Durability
Durable Solid Moldboard
A solid moldboard helps in rough conditions. The moldboard give the cutting edge extra power to slice through hard, compacted ground.
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere BB52 Series Heavy-Duty Box Blades |
Key Specs
| Working width | BB5272: 182.88 cm 72 in. BB5284: 213.36 cm 84 in. BB5296: 243.84 cm 96 in. |
|||
|---|---|---|---|---|
| Cutting edge – Reversible | All BB52: Yes | |||
| Shank type | All BB52: Three position with holes | |||
| Hitch | Compatibility All BB52: Category 1 & 2 iMatch™ compatible (Cat. 1) All BB52: Yes |
|||
| Max Engine Horsepower | All BB52: 86.48 kW 120 hp |
|||
| PTO Horsepower |
Dimensions
| Working width | BB5272: 182.88 cm 72 in. BB5284: 213.36 cm 84 in. BB5296: 243.84 cm 96 in. |
|||
|---|---|---|---|---|
| Unit height | All BB52: 99.06 cm 39 in. |
|||
| Unit depth | All BB52: 81.28 cm 32 in. |
|||
| Endplate thickness | All BB52: 1.27 cm 0.5 in. |
|||
| Moldboard thickness | All BB52: 0.64 cm 0.25 in. |
Weight
| Operating weight | BB5272: 401.4 kg 885 lb BB5284: 442.3 kg 975 lb BB5296: 474.0 kg 1045 lb |
|||
|---|---|---|---|---|
| Shipping | BB5272: 412.76 kg 910 lb BB5284: 453.59 kg 1000 lb BB5296: 485.34 kg 1070 lb |
Tractor compatibility
| Max Engine Horsepower | All BB52: 86.48 kW 120 hp |
|||
|---|---|---|---|---|
| PTO Horsepower |
Hitch
| Compatibility | All BB52 Category 1 & 2 | |||
|---|---|---|---|---|
| iMatch™ compatible (Cat. 1) | All BB52: Yes | |||
| Quick coupler (Cat. 2) |
Box
| Capacity | BB5272: 0.8 m3 28.42 cu ft BB5284: 0.94 m3 33.13 cu ft BB5296: 1.07 m3 37.85 cu ft |
|||
|---|---|---|---|---|
| Design | All BB52: High Back Box |
Cutting edge
| Reversible | All BB52: Yes | |||
|---|---|---|---|---|
| Quantity | All BB52: Two | |||
| Size | All BB52: 0.95×15.24 cm 0.375×6 in. |
Scarifier shank and beam
| Shank type | All BB52: Three position with holes | |||
|---|---|---|---|---|
| Points | All BB52: Replaceable, Heat treated | |||
| Quantity | BB5272: Six BB5284: Eight BB5296: Eight |
|||
| Scarifier Tube | All BB52: 12.7×12.7×0.64 cm 5x5x0.25 in. |
|||
| Tubular scarifier beam size | ||||
| Beam reinforcement bar size |
Tailgate
| Type | All BB52: Fixed |
|---|
Mast
| Type | All BB52: Welded |
|---|
Paint
| Color | All BB52: JD Green |
|---|
Shipping
| Configuration | All BB52: One per |
|---|
Set-up time
| Labor hours | All BB51: 0.50 |
|---|
Warranty
| Time period | All BB51: One year |
|---|
