- Quick and easy attachment
- Replaceable tines
- Rugged tubular frame enhances durability
Features
Expand AllCollapse All
Fits John Deere 300CX Series Loaders
Fits John Deere 600 and 700 Series Loaders
Fits John Deere global carrier
Made of hardened steel
Bale spear frame for AB11 and AB13
Quick and easy attachment
Fits John Deere 300CX Series Loaders
Fits John Deere 600 and 700 Series Loaders
Fits John Deere global carrier
The AB11 and AB13 Series Bale Spears are equipped with a quick-change, global, and quick-attach attaching system. These systems save time and allow easy attachment for the operator.
The proper attachments are as follows:
- AB11E and AB13E – fits John Deere 300CX Series Loaders
- AB11D and AB13D – fits John Deere 600 and 700 Series Loaders
- AB11G and AB13G – fits John Deere Global Loaders
- AB13K – fits John Deere loaders with global Category 2 carriers
Replaceable tines for extended implement life
Made of hardened steel
The AB11 and AB13 Series Bale Spear tines are made out of hardened steel and replaceable.
Rugged, tubular frame enhances durability and efficiency
Bale spear frame for AB11 and AB13

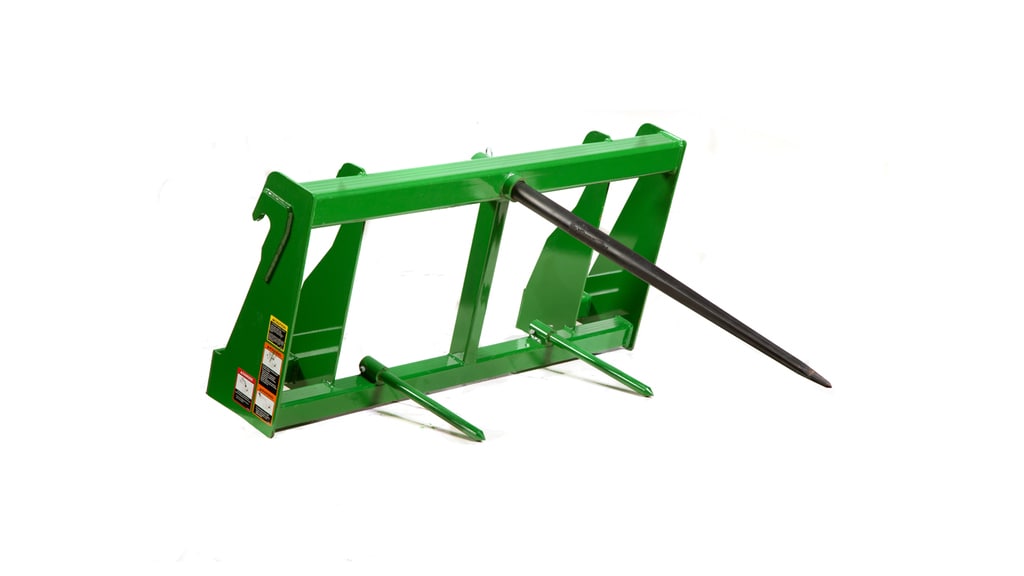

The frame on the AB11 and AB13 Series Bale Spear is constructed of a square, tubular design, making it extremely strong and durable.
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere AB13K Bale Spear |
Key Specs
| Current series style | Global Category 2 – H480 | |||
|---|---|---|---|---|
| Square |
Dimensions
| Overall height | 74.7 cm 29.4 in. |
|||
|---|---|---|---|---|
| Overall width | 148.8 cm 58.6 in. |
|||
| Overall length | 160.8 cm 63.3 in. |
Attachment carrier
| Current series style | Global Category 2 – H480 |
|---|
Weight
| Operational | 150.1 kg 331 lb |
|||
|---|---|---|---|---|
| Shipping | 172.8 kg 381 lb |
Spears
| Primary | Location Top Quantity One Size 5.7×134.6 cm 2.25×53 in. |
|||
|---|---|---|---|---|
| Stabilizing | Location Bottom Quantity Two Size 3.2×50.8 cm 1.25×20 in. |
Bale
| Round | Quantity One Size Large round Maximum weight 1,360.8 kg 3,000 lb |
|||
|---|---|---|---|---|
| Square |
Set-up time
| Labor hours | 0.25 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected |
|---|
