- Quick, easy connection
- Rugged, tubular frame
- Replaceable spears for extended implement life
Features
Expand AllCollapse All
AB14D fits 600 and 700 Series Loaders
AB14G is global and fits all series loaders
AB14A fits 800 Series Loaders
Rugged, tubular frame
Hardened steel tines enhance implement durability
Quick, easy connection
AB14D fits 600 and 700 Series Loaders
AB14G is global and fits all series loaders
AB14A fits 800 Series Loaders

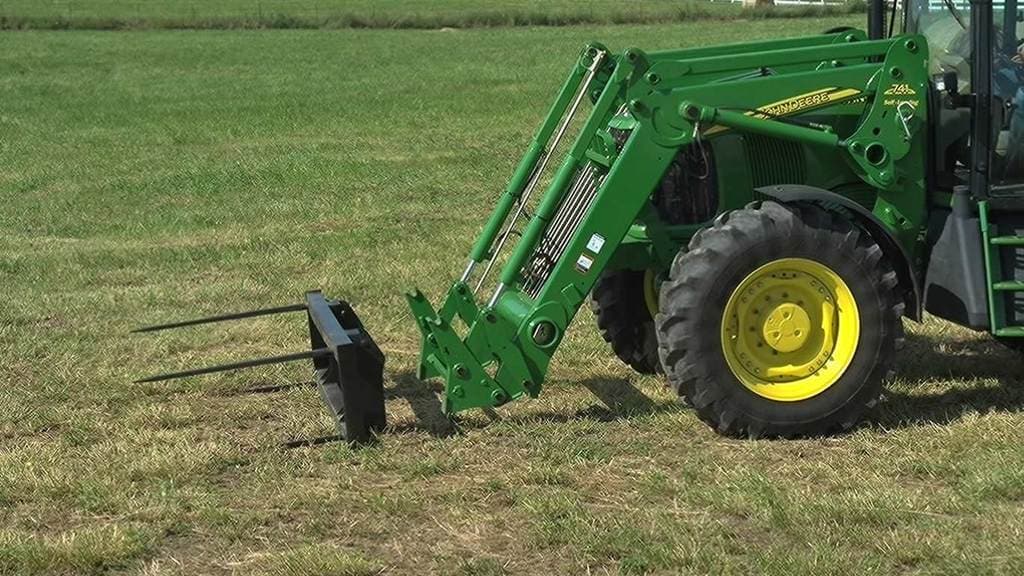

The AB14 Series Bale Spears are equipped with quick-change, quick-attach, and global attaching systems. These systems create ease and accuracy for the operator. The proper attachments are as follows:
-
AB14D – 600 and 700 Series Loaders
-
AB14A – 800 Series Loaders
-
AB14G – Global Loaders
Rugged, tubular frame built to withstand harsh conditions
Rugged, tubular frame
The frame on the Frontier™ AB14 Series is a square, tubular design, making it extremely strong and durable.
Replaceable tines for extended implement life
Hardened steel tines enhance implement durability
The tines on the Frontier™ AB14 Series are made out of hardened steel and are replaceable.
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere AB14G Bale Spear |
Key Specs
| Current series style | Global | |||
|---|---|---|---|---|
| Square | Quantity One Size Large square Weight 907.2 kg 2,000 lb |
Dimensions
| Overall height | 43.2 cm 17 in. |
|||
|---|---|---|---|---|
| Overall width | 63.5 cm 25 in. |
|||
| Overall length | 177.8 cm 70 in. |
Attachment carrier
| Current series style | Global |
|---|
Weight
| Operational | 176.9 kg 390 lb |
|||
|---|---|---|---|---|
| Shipping | 210.9 kg 465 lb |
Spears
| Primary | Location Top Quantity Two Size 5.1×124.5 cm 2×49 in. |
|||
|---|---|---|---|---|
| Stabilizing | Location Bottom Quantity 2 Size 3.2×63.5 cm 1.25×25 in. |
Bale
| Round | Quantity Two Size Less than: 1.823 m 6 ft Maximum weight 907.2 kg 2,000 lb |
|||
|---|---|---|---|---|
| Square | Quantity One Size Large square Weight 907.2 kg 2,000 lb |
Set-up time
| Labor hours | 0.25 |
|---|
Warranty
| Time period | 1 year |
|---|
