- Strong frame for added durability
- Quick and easy attachment
- Serrated edge for secure movement
- Strong hinges for increased life
- See brochure for loader series compatibility
Features
Expand AllCollapse All
Steel frame built to enhance bucket durability
Fits 300 to 500 Series Loaders
Serrated edges enhance overall bucket performance
Strong, sturdy hinges are built to last
Strong frame for added durability
Steel frame built to enhance bucket durability
The AY11 Series Four-in-One Bucket frame is built with welded components and high-tensile, heavy-gauge steel for maximum durability.
Attachment is quick and easy
Fits 300 to 500 Series Loaders

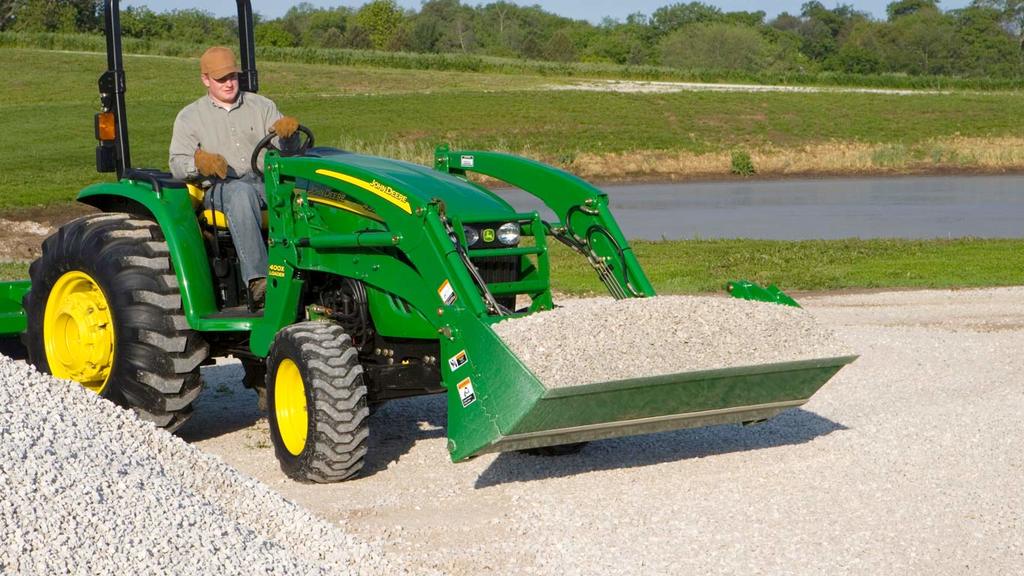

Attaching the AY11 Series Four-in-One Bucket to a John Deere loader is easy with its quick-change and global attaching systems. Just line up the loader’s connecting points to the attachment frame and lock in place.
Serrated edge for secure movement
Serrated edges enhance overall bucket performance
The AY11 Series serrated edge firmly grasps material for secure movement.
Strong, steel hinges for increased wear life
Strong, sturdy hinges are built to last
The hinges on the AY11 Series are made of heavy-duty steel to resist bending and provide longer wear capability.
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere AY11 Series 4-in-1 Buckets |
Key Specs
| Cutting width | 134.62 cm 53 in. |
|||
|---|---|---|---|---|
| Clam opening | 81.2 cm 32 in. |
|||
| Current series style | 100, 200 and 300 (300 on 3E Tractor Only) | |||
| Hydraulic cylinders – Type | Two double-acting | |||
| Clamp force – Closed | 5,782.7 N 1,300 lb-ft |
Dimensions
| Width | 134.6 cm 53 in. |
|||
|---|---|---|---|---|
| Height | 52.4 cm 20.63 in. |
|||
| Depth | 64.6 cm 21.5 in. |
|||
| Cutting width | 134.62 cm 53 in. |
|||
| Clam opening | 81.2 cm 32 in. |
Attachment carrier
| Current series style | 100, 200 and 300 (300 on 3E Tractor Only) |
|---|
Weight
| Operational | 128 kg 282 lb |
|||
|---|---|---|---|---|
| Shipping | 137 kg 302 lb |
Hydraulic cylinders
| Type | Two double-acting |
|---|
Clamp force
| Open | 4,448.2 N 1,000 lb-ft |
|||
|---|---|---|---|---|
| Closed | 5,782.7 N 1,300 lb-ft |
Bucket
| Capacity |
|---|
Set-up time
| Labor hours | 0.25 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected |
|---|
