SS10P Series

Hopper

The reinforced fiberglass hopper on the 10 Series Pendular Spreader guarantees superior corrosion resistance, resulting in increased durability and longer wear life.

• It comes complete with a frame made of sturdy, tubular steel and painted with polyester resin powder coat for added corrosion resistance.

Standard spout

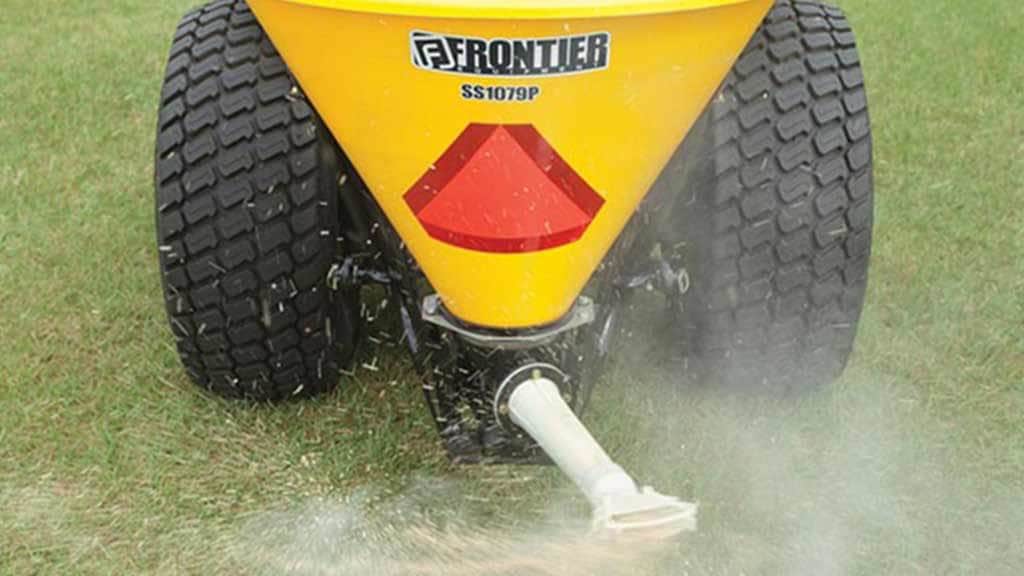

Frontier™ Pendular Spreaders are designed to provide a precise spread. To accommodate this, they can be outfitted with various spreader spouts.

The spreader spouts are made of nylon and reinforced fiberglass for corrosion resistance and increased durability.

By simply rotating the optional directional spout’s tip, an easy spread adjustment can be made to the left only, to the right only, or to the middle.

Optional left/right directional attachment

Optional left/right directional attachment

PTO driveline

The 10 Series Pendular Spreader comes standard with a 540-rpm PTO, Category 1 driveline. Its heavy-duty shielded shaft, made in compliance with American Society of Agricultural and Biological Engineers (ASABE) requirements, is built to last and ensures operator safety.

The anti-wear, cast-steel gearbox operates in an oil bath, providing a longer life and durability for the driveline.

Hydraulic gate control drawing from operator’s manual

The hydraulic gate control kit is used to open and close the gate of the spreader without the operator having to get off the tractor by using the tractor’s hydraulic system.

Filter grate drawing from operator’s manual

The filter grate kit is used when loading SS1079P, SS1116P, SS1180P, and SS1220P Pendular Spreaders. It keeps hard and clumpy material from damaging parts or clogging the spreader.

All the field conversion agitator kits listed below allow operators to use multiple types of seed or fertilizer without clumping up.

The hopper covers seal tightly around the containers so seed or fertilizer will not get wet or spill while in transport. Hopper covers are made of polyvinyl chloride (PVC).

The field conversion kits listed below are identified for the appropriate broadcast or pendular spreaders.

Deflector shield conversion kits for broadcast spreaders ensure that material is thrown where the operator chooses.

Side-row discharge conversion kits for broadcast spreaders focus the spread to the side of the tractor.

The left-right direction attachment concentrates material to specific areas when using pendular spreaders.

A salt and sand spout kit and an optional locking nut are also available.

The field-installed rubber insert kit is used to keep the discharge from clogging.
