- Reversible cutting edges
- Trip-edge protection
- Optional skid shoes
- Optional hydraulic angle adjustment unit available for AF10 (F)
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|

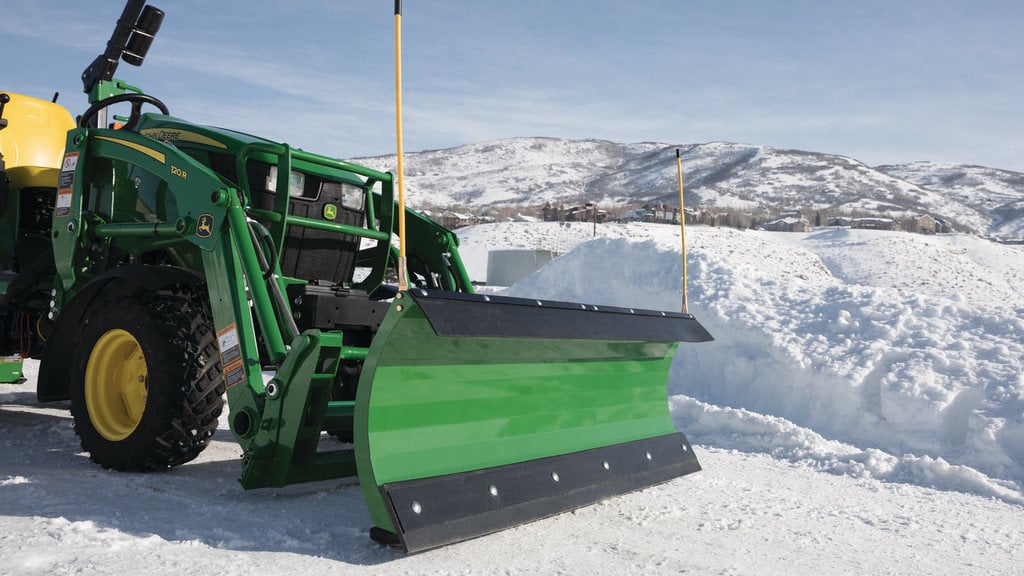

| John Deere AF10F Front Blade |
Dimensions
| Width | 151.3 cm 59.6 in. |
|||
|---|---|---|---|---|
| Height | 53.3 cm 21 in. |
|||
| Depth | 67.3 cm 26.5 in. |
|||
| Cutting width | 151.3 cm 59.6 in. |
Attachment carrier
| Current series style | H120 and H130 |
|---|
Weight
| Operational | 77.6 kg 171 lb |
|||
|---|---|---|---|---|
| Shipping | 98.4 kg 217 lb |
Moldboard
| Thickness | 12 gauge 2.8 mm 0.109 in. |
|||
|---|---|---|---|---|
| Height | 53.3 cm 21 in. |
Angle/pivot
| Standard adjustment | Manual | |||
|---|---|---|---|---|
| Degrees (each side) | 30 and 60 degree (angle) |
Hydraulic cylinders
| Type | None |
|---|
Skid shoes
| Standard | Yes |
|---|
Set-up time
| Labor hours | 0.5 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected | 05 December 2016 |
|---|
