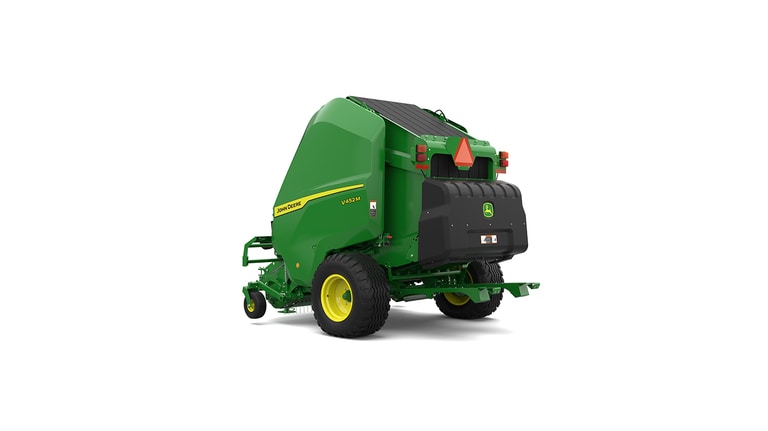

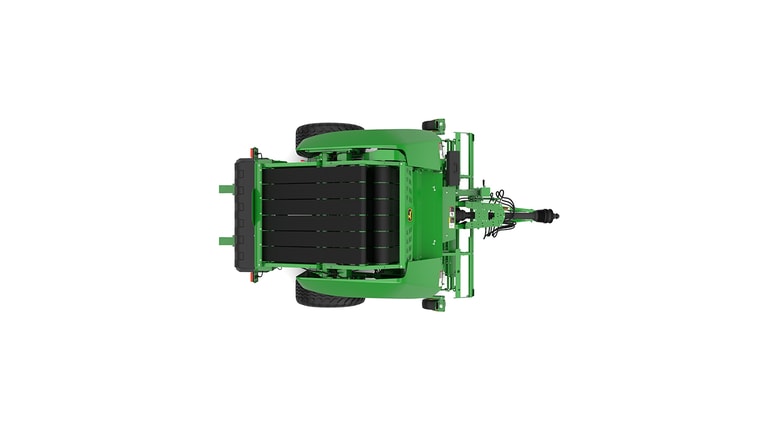

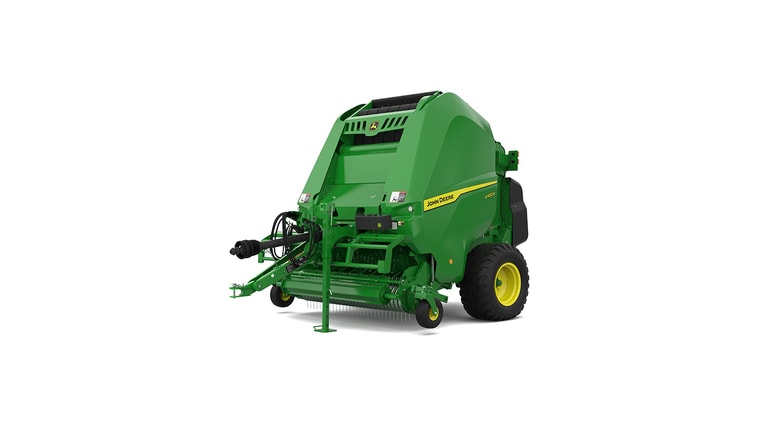

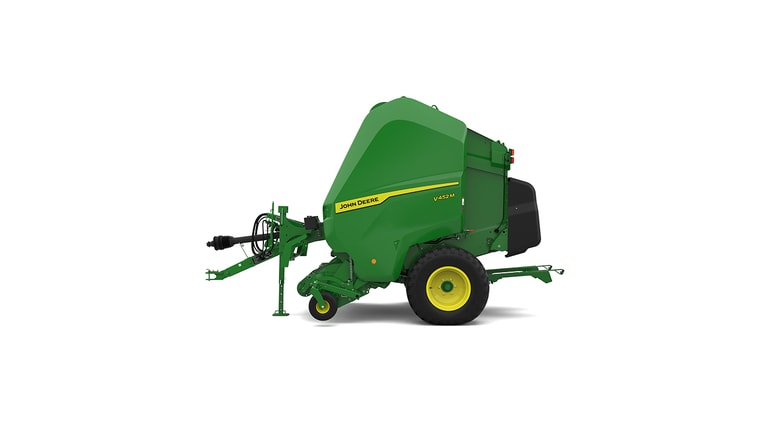

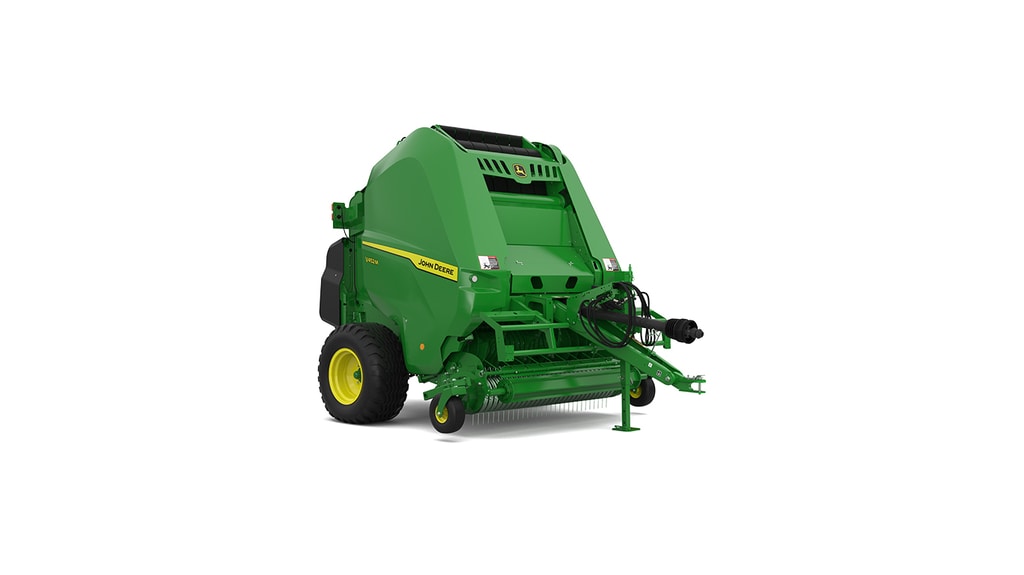

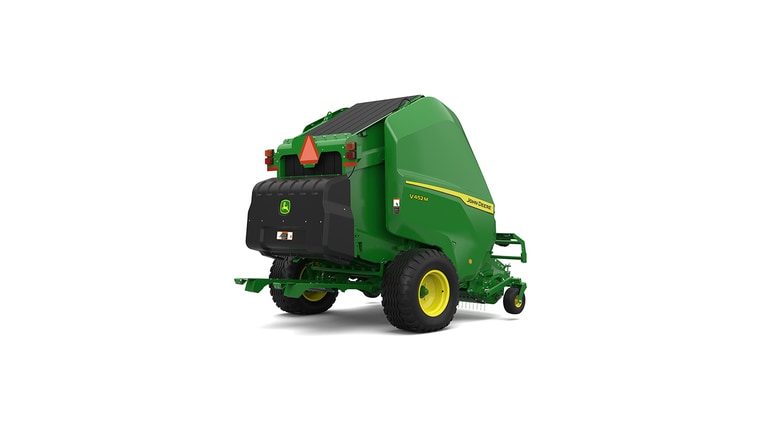

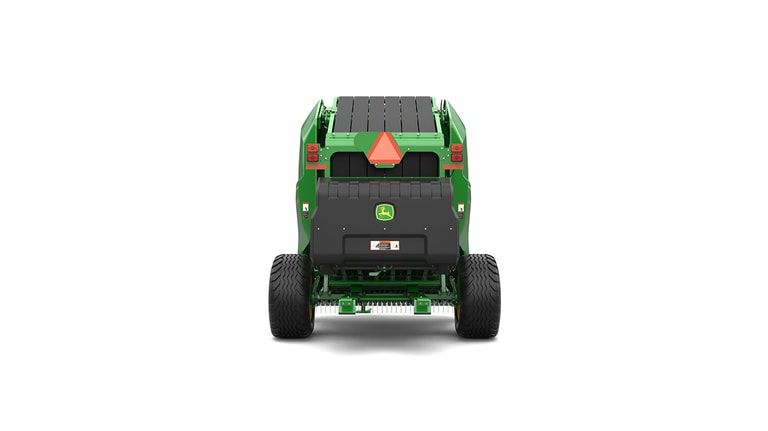

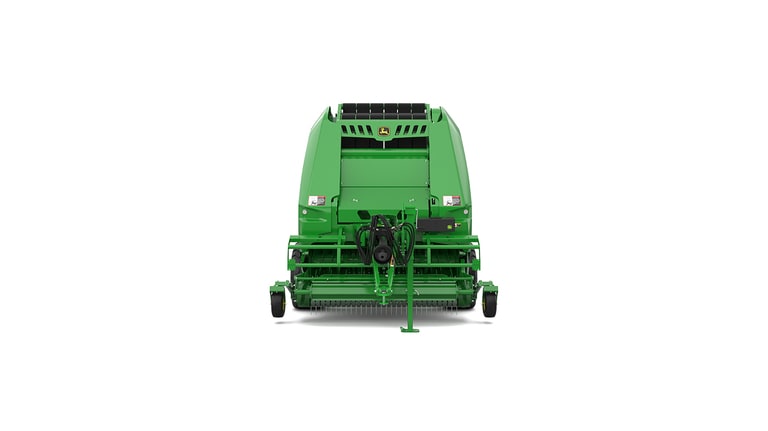

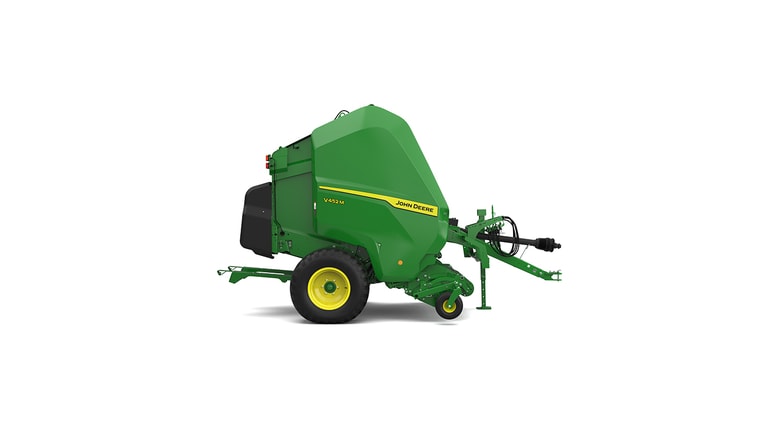

V452M

This equipment enables a second belt drive roll to be added to M Series round balers.

Code	Name	Description/Components/Compatibility
8492	Silage Preparation for M Series	Supply as standard with MaxiCut HC rotor. Optional with RotoFlow HC rotor (see option code 1035). Dedicated chain/sprockets drive roll (roll #4). Improves belt traction in the event of slippage.

Benefits:

• Significantly increases baling capacity in very wet conditions by enhancing belt traction.
• Engages traction only when belt slippage occurs, minimizing unnecessary wear.

Every John Deere baler comes standard with the Baler Automation – Select feature, allowing you to take advantage of an advanced level of automation within the John Deere ecosystem.

Code	Name	Description/Components/Compatibility
3900	Baler Automation – Select	Compatible only with John Deere tractors equipped with ISOBUS and having Tractor Implement Automation (TIA) activation. The tractor must be equipped with Electronic Selective Control Valves (E-SCVs) and an Infinitely Variable Transmission (IVT) to operate all sub-modes: E-SCV: Gate cycle management IVT: Stop the tractor when the bale size is reached / enable tractor stop when pickup is plugged PTO disengagement Requires discharge ramp on baler (see option code 4020). Three Baler Automation sub-modes symbol with status on the main page (Red: Disabled / Green: Enabled / Blue: Active): Gate Automation Tractor Speed Automation Unplug Assist Automation Automation widget included. Only on manual action, once gate is close and icon “Ready-to-Bale” appear on the display the operation will start again when the Command Pro joystick or reverser is cycled. No additional hydraulic SCV or Power Beyond system is needed. Manual bale unload function. Automation automatically disengages with a single touch on the SCV or brakes during operations. Each automation sub-modes can be disengaged if not required.

Benefits:

• No additional package is required to enjoy a high level of comfort when baling in the John Deere ecosystem.
• Award-winning feature that significantly reduces the number of actions, providing stress-free operation and enhanced operator comfort.
• Error-proof baling thanks to the automation system that doesn’t miss any steps, improving overall efficiency during long baling days.

MaxiCut HC68 Premium is a cutting rotor with 15 knives. Its High-Capacity design ensures optimum crop flow.



In Premium version, the MaxiCut HC68 has a selection of 7 or 8 knives for a theoretical cutting length of 136 mm (5.3 in.) and, with all knives engaged 68 mm (2.7 in.).

Code	Name	Description/Components/Compatibility
1049	MaxiCut HC68 Premium	High-capacity design with large augers and rotor on the same axis. Three 6 mm (0.2 in.) thick high hardness steel double teeth per revolution. 2 set of knives (0-7-8-15), controlled from the display. Theoretical cutting length of 136 mm (5.3 in.) or 68 mm (2.7 in.). Hydraulic knives protection system with adjustable pressure. Knives position monitored from the cab. Full width drop floor, controlled from the display. Deliver with 15 knife filler plates and holder.

Benefits:

• High-Capacity (HC) design for uniform and regular feeding of the bale chamber.
• High-quality materials for reliability and durability.
• Excellent cutting quality in all conditions thanks to the new hydraulic system.
• Real-time monitoring of knife position from the cab.
• More productive time in the field: use alternatively two sets of knives double sharpening operation intervals.
• Full width drop floor, exclusive to John Deere, to reduce downtime due to plugs.

With this configuration, the moisture sensor integrated into the baler provides agronomic characteristics on the harvested crops.

Code	Name	Description/Components/Compatibility
2101	Moisture Indicator	Moisture indicator inside the bale chamber (right-hand side). Moisture values are displayed on two widgets: Instant value Last average moisture Crop type selection on moisture settings page for accurate measurements. Configurable moisture alarm on the moisture settings page. Function can be deactivated from the display. Moisture data is documented on the display or via the Operations Center. Yield map layer not available in the John Deere Operations Center (see option code 2102 for wrapper baler).

Benefits:

• Display instant moisture data to adjust your operations in real time.
• Protect your crop from spoilage or mold with a configurable moisture alarm.
• Easily document each bale moisture for optimal storage management and traceability.

Overview

John Deere’s Baler Automation is a factory-integrated solution that automates key baling functions—Gate, Speed, and Weave—so operators can focus on productivity, not precision in steering or timing. Each automation mode is designed to reduce fatigue, improve bale consistency, and increase throughput across a wide range of field conditions and operator experience levels. These modes can be used independently or together, depending on tractor configuration and customer needs.

Benefits

• Reduced Operator Fatigue and Error
  Gate Automation eliminates the need for manual gate control, reducing repetitive tasks and minimizing the risk of premature gate opening or missed wrap cycles. Operators can stay focused on crop flow and field conditions, even during long baling days.
• Improved Productivity and Throughput
  With automation handling critical timing and steering functions, operators can maintain a steady pace and produce more bales per hour—especially in high-yielding or time-sensitive conditions.
• Labor Flexibility and Training Simplicity
  Automation enables less-experienced operators to achieve professional-grade results with minimal training. This is especially valuable for custom operators, large farms with rotating crews, or operations looking to scale without compromising bale quality.
• Consistent Bale Shape and Density
  Weave Automation ensures uniform crop distribution across the bale chamber by automatically steering the baler side-to-side. This results in tight, square-shouldered bales with consistent density—reducing spoilage, improving stacking, and enhancing feed quality.
• Optimized Bale Uniformity Through Precise Timing
  Speed Automation automatically stops the tractor at the exact moment the bale reaches full size, allowing a precise bale size and enabling bale consistency in bale appearance, shape and weight uniformity.
• Enhanced Feed Value and Storage Efficiency
  Denser, well-shaped bales retain more leaf material, improving nutritional value. Uniform bale size also simplifies transport, stacking, and storage planning.

Additional details

Breakdown of Baler Automation Modes



Gate Automation

• Function: Automatically opens and closes the baler gate after the wrap cycle.
• How It Works: Uses mechanical or electronic selective control valves (MSCVs/E-SCVs) to control gate movement. The baler commands the gate to open and close once the tractor is fully stopped.
• Operator Role:
• Must start, stop, and drive the tractor manually.
• Must manually weave if needed.
• Tractor must be at 0 km/h (0 mph) before gate opens.
• Customer Value:
• Prevents premature gate opening and bale ejection errors.
• Opens and closes gate at exact time it’s needed, resulting in faster gate cycles.
• Improves cycle consistency and reduces re-baling.
• Reduces operator fatigue and error, especially in long baling days.
• Compatibility:
•  Available on most 6R/7R/8R tractors with E-SCVs.
• Available on other tractors with MSCV when using the valve (3901 option code).
• Also compatible with 6030/7030 Premium tractors (MY2010+).
• Controlled via Gen4/Gen5 display.
• Can be used independently of Speed Automation.
• Option Code 3900 enables Gate and Speed Automation when using ESCV’s and does require Tractor Implement Automation (TIA) activation, which is a $0 activation available via Stellar Support. Some late-model tractors may already have TIA enabled.
• Option Code 3901 enables Gate Automation when using mechanical SCVs and does not require TIA activation. The baler provides automation logic; the tractor simply supplies hydraulic flow. Baler to baler





Speed Automation

• Function: Automatically stops and restarts tractor movement at the start/finish of each bale cycle.
• How It Works: When the bale reaches full size, the baler commands the tractor to slow to a stop. After the gate closes and the “ready-to-bale” icon appears, the operator taps the foot throttle to resume baling.
• Operator Role:
• Must drive the tractor and weave if needed.
• Tractor stop/start is automated; operator resumes motion with foot throttle or left-handed reverser on IVT on equipped models.
• Customer Value:
• Ensures consistent bale size and wrap timing.
• Reduces operator fatigue and improves throughput.
• Allows operators to maintain focus on crop flow and field conditions.
• Contributes to denser bales by ensuring consistent crop feeding and optimal chamber fill timing.
• Compatibility:
• Requires IVT-equipped 6R/7R/8R tractors.
• Option Code 3900 enables Gate and Speed Automation when using ESCV’s and does require Tractor Implement Automation (TIA) activation, which is a $0 activation available via Stellar Support. Some late-model tractors may already have TIA enabled.
• Option Code 3901 enables Gate Automation when using mechanical SCVs and does not require TIA activation. The baler provides automation logic; the tractor simply supplies hydraulic flow.



Weave Automation

• Function: Automatically steers the baler side-to-side to evenly fill the bale chamber.
• How It Works: Uses bale shape sensors and a steerable hitch to monitor chamber fill and adjust baler position. Includes following mode when PTO is off, allowing the baler to follow directly behind the tractor, useful in turns or when repositioning. The system calibrates based on windrow width and bale shape inputs.
• Operator Role:
• Drives the tractor; Weave Automation handles baler movement.
• No manual weaving required.
• Adjusts windrow width and response rate settings as needed.
• Customer Value:
• Produces tight, square-shouldered bales with consistent density.
• Reduces crop drive-over, preserving feed quality and reducing ash content.
• Minimizes manual weaving, reducing fatigue and improving operator comfort.
• Enables consistent results across operators and shifts.
• Increases productivity by reducing steering corrections and improving bale formation speed
• Compatibility:
• Requires an additional E-SCV (3^rd) and calibration.
• Available on select balers as a factory-installed option.
• Requires AutoTrac Ready tractor (wheel angle sensor supports Following Mode functionality).
• Does not require TIA activation.
