S200

2-m (6.5-ft) wide pickup

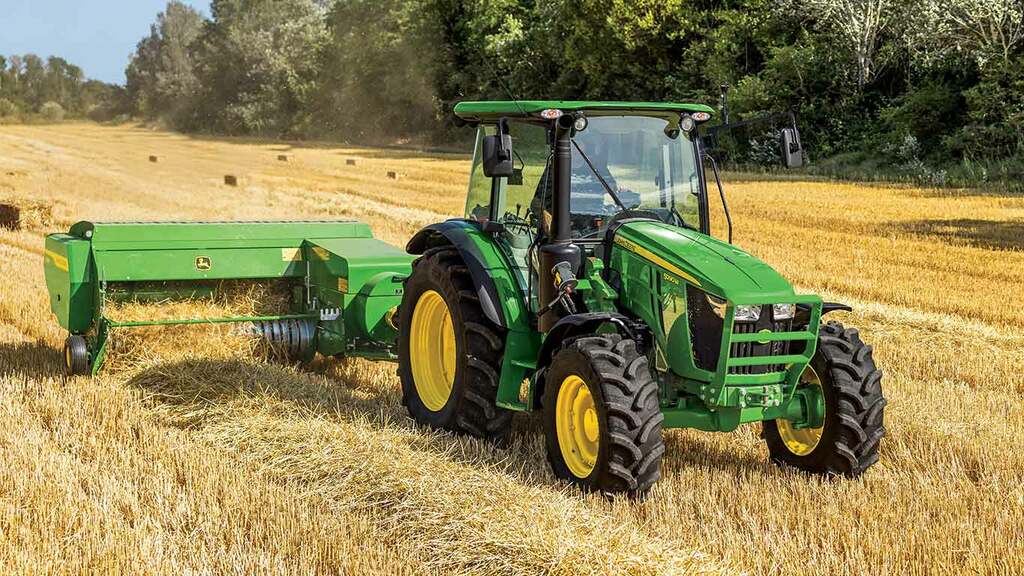

The S200 Small Square Baler features a 2-m (6.5-ft) wide pickup. The S200, designed for gathering capacity, is equipped with 96 teeth on four bar pickup. The width between the outer teeth is 1.4 m (4.6 ft) and can gather wide and windblown windrows.

The 1.18-m (3.9-ft) long floating auger guarantees an efficient and even feeding of the bale chamber whatever the size of the windrow. In addition, the auger is spring suspended. The large feed opening allows the machine to swallow huge crop volumes.

The 90 strokes per minute (spm) on the S200 of the plunger head enable high output and high bale density. The 750-mm (29.5-in.) stroke of the plunger head allows a larger feed opening, increasing feeding capacity.

The top and bottom T-rail tensioning system, adjustable with two cranks or one pneumatic cylinder, is combined with the three hay dogs to provide well-shaped, tight bales that handle and stack easily. The S200 Small Square Baler is equipped with side density flaps, one on each side.

The optional dimpled side-hay resistors can help in making denser bales. They maintain the tension while tying takes place.

Knotters

The S200 comes standard with heavy-duty twine knotters. The needles are chain driven, providing simple and easy maintenance.

Heavy-duty plunger head made of welded steel provides added strength and reduces maintenance costs.

A safety stop automatically prevents the plunger head from hitting the feeder fork or the needles while they are in the bale chamber.

A grease bank greases each knotter grease point just by filling one grease point.
