BU10 Series

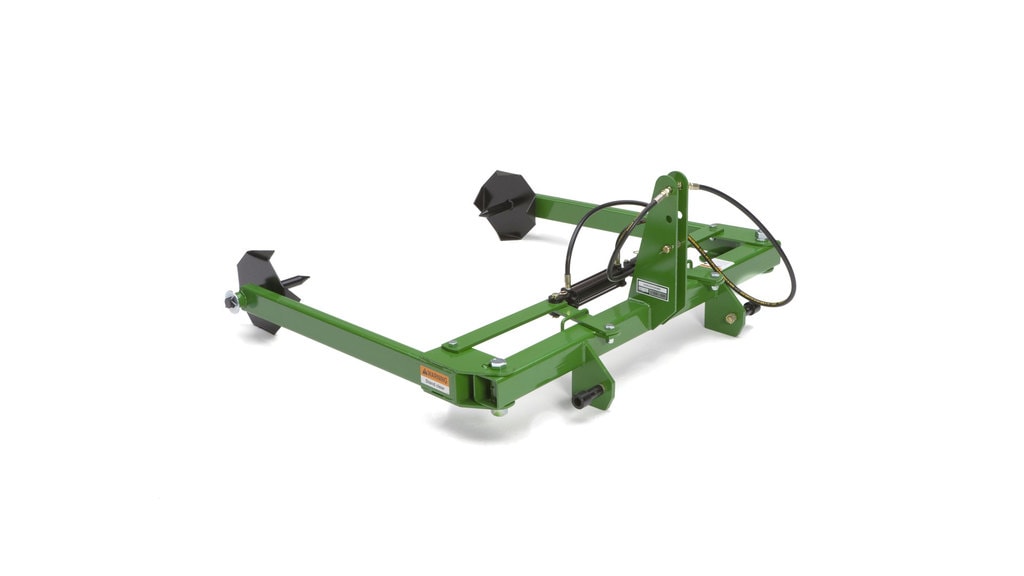

Rugged structural frame on BU10 Series

The Frontier™ BU10 Series Bale Unroller has strong, tubular framing with heavy-duty welding, which provides exceptional strength and durability.

This rugged machine can handle round bales up to 907.2 kg (2000 lb) and 1.2-m to 1.5-m (4-ft to 5-ft) wide bales up to 1.8 m (6 ft) in diameter.

BU10 Series Bale Unroller hitch

The BU10 Series Bale Unroller is iMatch and quick-hitch compatible with Category 1 and 2 hitches. These quick-attach systems allow for a super quick connection.

Hydraulic kit creates ease for the operator

The Frontier™ BU10 Series Bale Unroller requires a 5.1-cm x 20.3-cm (2-in. x 8-in.) hydraulic cylinder. The hydraulic kit is needed for use, but it does not have to be purchased with the unroller.

The first conversion kit listed actuates the BU1060 Bale Unroller. A hydraulic cylinder, hoses, and fittings are needed to actuate the squeeze feature of the bale unroller.

The second conversion kit listed is a hydraulic lift mechanism to fold the DM1140 Disc Mower for transport. This is standard equipment on all DM1140 Disc Mowers.

The third conversion kit listed is a power take-off (PTO) hydraulic drive for the HM1109 Hay Merger. It is a self-contained hydraulic system used to operate the merger if the tractor’s hydraulic system has insufficient capacity.
