320R

Loader

Back to All New Equipment

Inquire About This Product

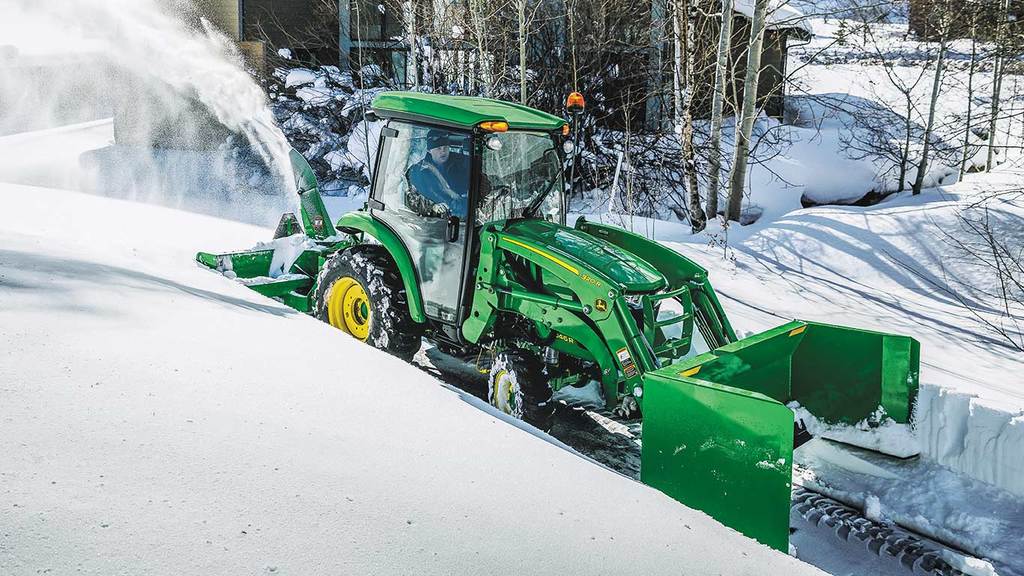

320R loader clearing snow (1st thumbnail)

Compatible with 3R Series Tractors
Quik-Park™ mounting system for efficient attachment and removal
Quik-Change attachment carrier makes it easier and faster to move from chore to chore
1,598 pounds (725 kg) lift capacity

Features

Expand All Collapse All

Quik-Park™ loader mounting system

Quik-Park loader mounting system

Quik-Park™ equipped loaders are designed for easy removal and mounting to and from the tractor without tools.

The parking stand, attached to the front frame of the tractor, is an integral part of the loader during loader operation.

The parking stand lowers into position by moving the joystick to the raised position once the latches are opened. This allows the loader to move to the parked position.

Quick-change attachment carrier

Allows fast, easy removal and mounting of attachments without tools.

End-of-pin lubrication means easy maintenance

Close up of grease fitting

Pivot point grease fitting locations

All pivot points on the loader have grease fittings that are accessible from the side of the loader to make greasing the loader much easier, ensuring that all grease points are more likely to be serviced. No more searching for grease points that are hard to find. Removing the grease gun from the grease fitting or zerk is not a problem either as sufficient radius has been left to allow the grease gun tip to be rotated to the side for removal from the fitting or zerk.

Show More Show Less

Specs & Compare

ADD MODEL

Add Model

ADD MODEL

Select Different Model

Specs & Compare

Select up to 4 models to compare specifications

John Deere

320R

Loader

Export to Excel

1 2

Key Specs

Maximum lift height (A)	2616 mm 103.3 in.
Lift capacity at full height	Measured at pivot (U) 633 kgf 1393 lbf Measured at 500 mm ahead of pivot (V) 457 kgf 1005 lbf
Boom breakout force	Measured at pivot (Y) 1710 kgf 3769 lbf Measured at 500 mm ahead of pivot (Z) 1209 kgf 2665 lbf
Bucket rollback force capacity	At ground-level line (ZZ) 1335.4 kgf 2944 lbf
Clearance at full height – bucket dumped (C)	2003 kgf 78.8 lbf
Dump angle, degrees (E)	49.3 degree (angle)
Rollback angle, degrees (G)	23.8 degree (angle)

Tractor

Model	4105
Front tire	10-16.5 6PR R4T1
Rear tire	17.52-24 8PR R4T1
Front axle configuration
Wheelbase	1727 mm 68 in.
Pump capacity	5.7 gpm
Rated pressure	2500 psi

Loader

Base weight	281.09 kg
Leveling configuration
Bucket used	Materials
Bucket weight	93.8 kg 207 lb
Lift capacity at full height	Measured at pivot (U) 633 kgf 1393 lbf Measured at 500 mm ahead of pivot (V) 457 kgf 1005 lbf
Lift capacity at 59 in. (1500 mm)	Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf
Boom breakout force	Measured at pivot (Y) 1710 kgf 3769 lbf Measured at 500 mm ahead of pivot (Z) 1209 kgf 2665 lbf
Bucket rollback force capacity	At maximum height (VV) 822 kgf 1819 lbf At 59-in. (1500-mm) lift height (XX) 1397 kgf 3079 lbf At ground-level line (ZZ) 1335.4 kgf 2944 lbf
Dimensions	Maximum lift height (A) 2616 mm 103.3 in. At full height – bucket level(B) 2411 mm 94.9 in. At full height – bucket dumped (C) 2003 mm 78.8 in.
Overall length (I+F), ft (m)	3.218 m 10.55 ft
Overall height in carry position (J)
Digging depth (H)	121 mm 4.76 in.
Reach	At maximum height (D) 766 mm 30.1 in. At ground level – bucket level (F) 1491 mm 50.7 in.
Bucket angle	Dump angle, degrees (E) 49.3 degree (angle) Rollback angle, degrees (G) 23.8 degree (angle) Dump angle, ground 138 degree (angle)
Cycle times	Loader raise, seconds 3.6 seconds Loader lower, seconds 2.1 seconds Bucket dump, seconds 3.0 / 1.2 (with regen) seconds Bucket rollback, seconds 1.8 seconds
