- Heavy-duty gearbox
- Steel rotor bearings
- Convenient rear grease fittings
- Square rotor designed for superior strength
Features
Expand AllCollapse All
Drawn tractor hookup
The 100 Series Flail Shredder is available with a drawn tractor hookup.
Rubber deflectors
Front rubber deflectors keep debris and other materials under the shredder and away from the tractor and operator. Because they are made out of rubber, they will not dent or rust.
Gearbox
Rotor bearings
Drawn tractor hookup
Drawn tractor hookup
Rubber deflectors will not dent or rust
Rubber deflectors
Heavy-duty John Deere-designed gearbox
Gearbox
A heavy-duty gearbox transfers power to the power-band drive belts through cross shafts with intermediate bearing supports:
- Gearbox has a constant-duty rating of 150 hp and a maximum rating of 225 hp.
Steel rotor bearings for increased bearing life
Rotor bearings
The rotor bearings are now made of steel and have a three-lip seal to keep the dirt out and increase the life of the bearings.
The side and center bearings now have guards in order to avoid leaks and dust, increasing the life of the bearings.
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|

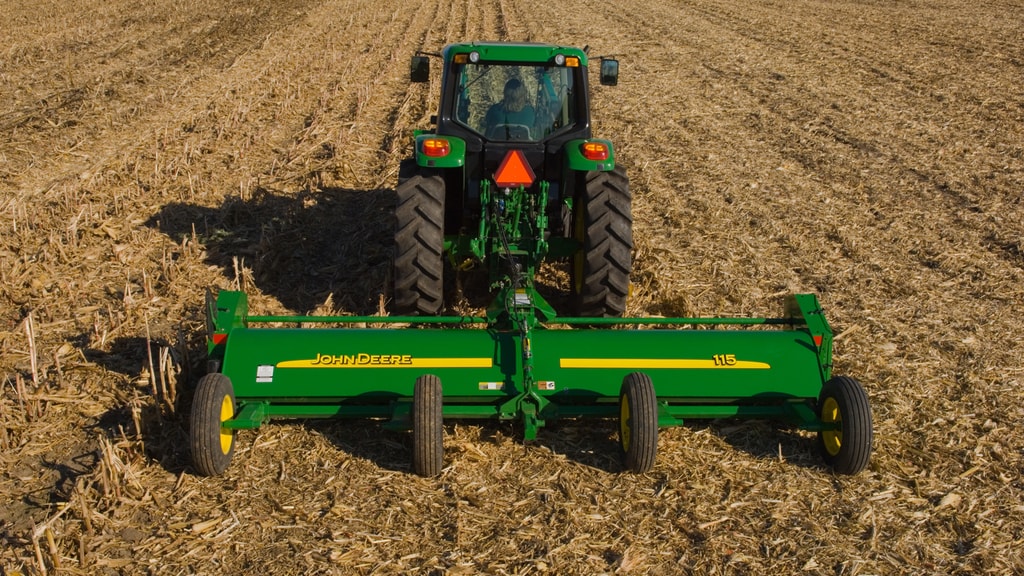

| Select up to 4 models to compare specifications | John Deere 115 Drawn Flail Shredder |
Power requirements
| Tractor PTO hp range | 67-149 kW 90-200 hp |
|||
|---|---|---|---|---|
| Tractor RPM | 1,000 rpm | |||
| Gear case |
Knives
| Number of knives | 120 | |||
|---|---|---|---|---|
| Knife dimensions | 7.87 x 63.5 x 143 mm 0.31 x 2.5 x 5.63 in. |
|||
| Knife mounting system | ||||
| Type | Heat-treated side slice | |||
| Knives overlap | ||||
| Tip speed | 171 km/h 106 mph |
Rotor
| Rotor speed | 1,500 rpm | |||
|---|---|---|---|---|
| Rotor diameter | 139.7 mm 5.5 in. |
|||
| Rotor bearing | Sealed, self-aligning, piloted housing, auxiliary | |||
| Bearing size | 41.28 mm 1.625 in. |
Drivetrain
| Belts | Power band, triple 5VX | |||
|---|---|---|---|---|
| PTO drivelines |
Mainframe
| Hitch | Drawn | |||
|---|---|---|---|---|
| Hood thickness | 6.35 mm 0.25 in. |
|||
| Safety deflector | Yes | |||
| Gauge wheels | 4 infinitely adjustable | |||
| Warning lights |
Cutting capacity
| Cutting width | 4.6 m 15 ft |
|||
|---|---|---|---|---|
| Cutting height | 7.6 to 25.4 cm 3 to 10 in. |
Dimensions
| Transport width | 2.39 m 7.83 ft |
|||
|---|---|---|---|---|
| Transport length | 5.82 m 19.08 ft |
|||
| Weight | 1,497 kg 3,300 lb |
Optional equipment
| Easy transport | ||||
|---|---|---|---|---|
| Constant velocity joint driveline | Yes | |||
| Skid shoes |
